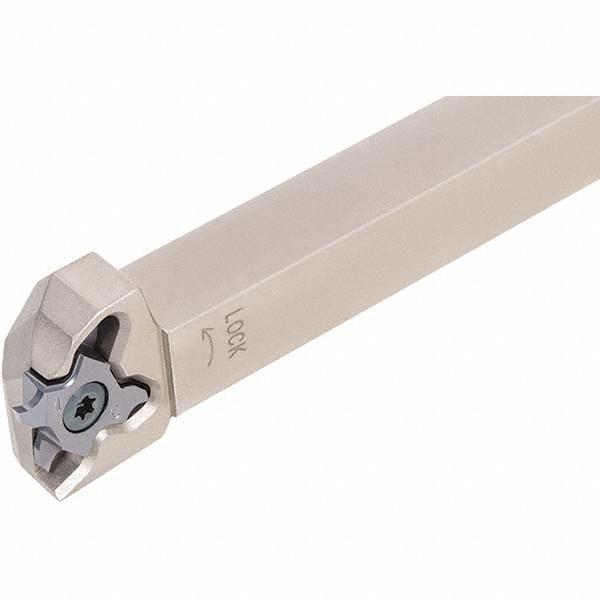

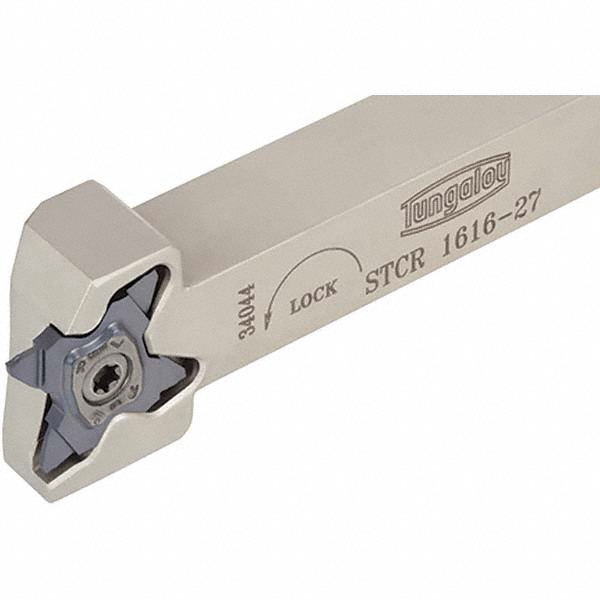

1 x 1" Shank, Uses TC18 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0130 |
| Toolholder Style | STC |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |

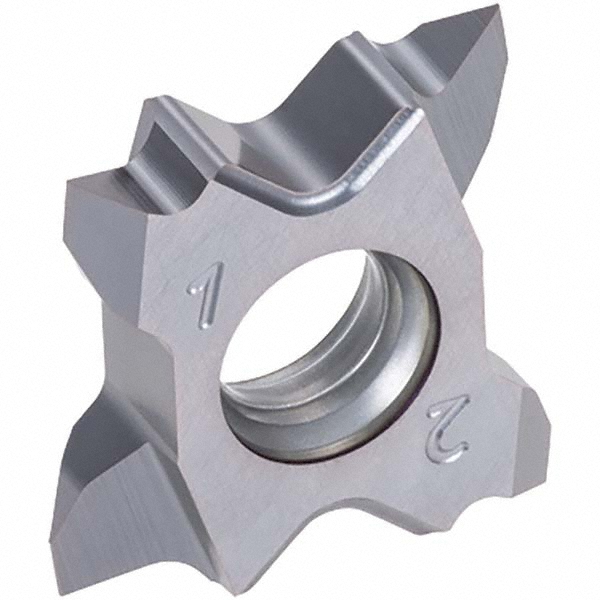

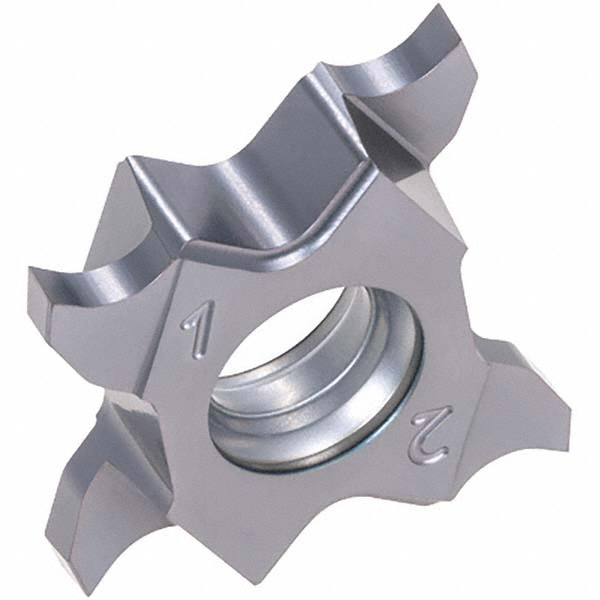

| Insert Compatibility | TC.. 18 |
| Compatible Insert Size Code | TC18 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Tetra Mini Cut |
| Shank Length (Decimal Inch) | 4.6000 |
| Overall Length (Decimal Inch) | 5.5 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 0.9 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | STCR16-18 |
| Complete Insert Compatibility | TC.. 18R |
| Coolant Through | No |
| Country of Origin | Japan |
| MSC Number | MSC# 46757696 |
