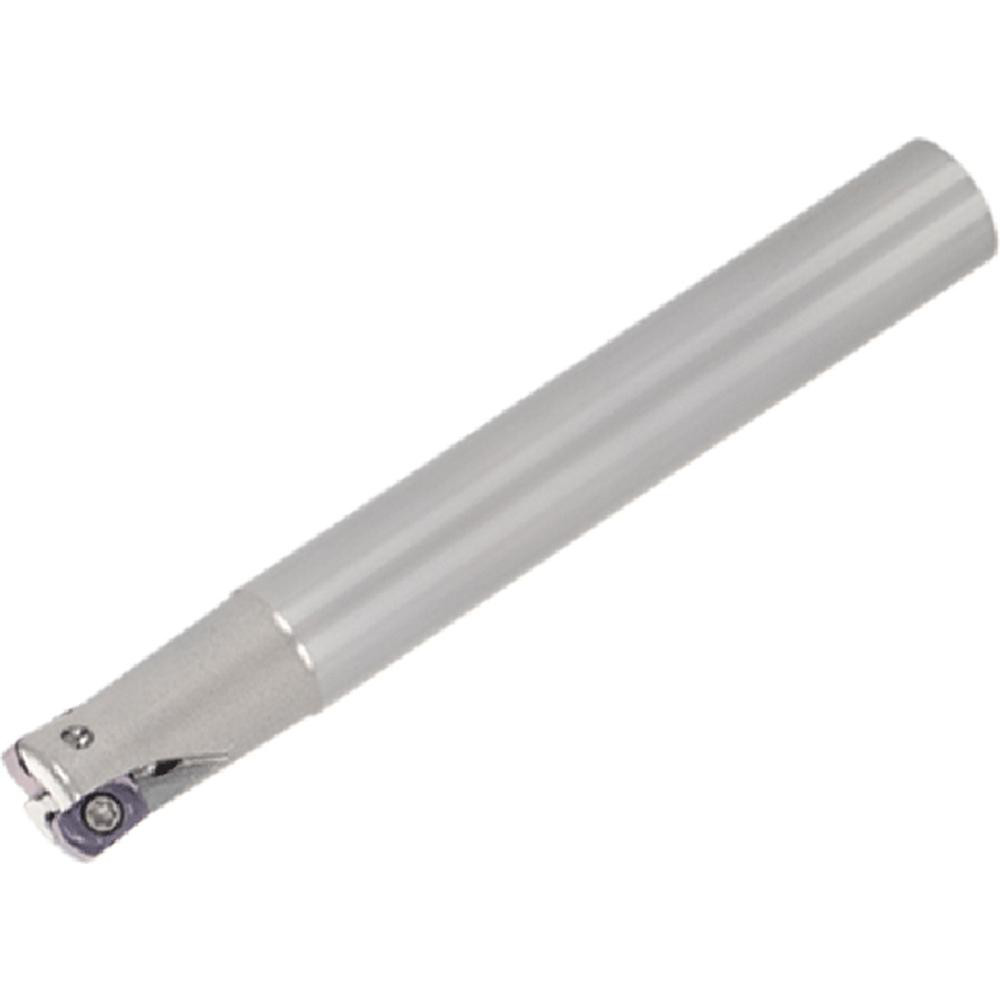

Uses 2 XXGT07X305EC-MJ & XXGT07X305EP-MJ Inserts, Coolant Through

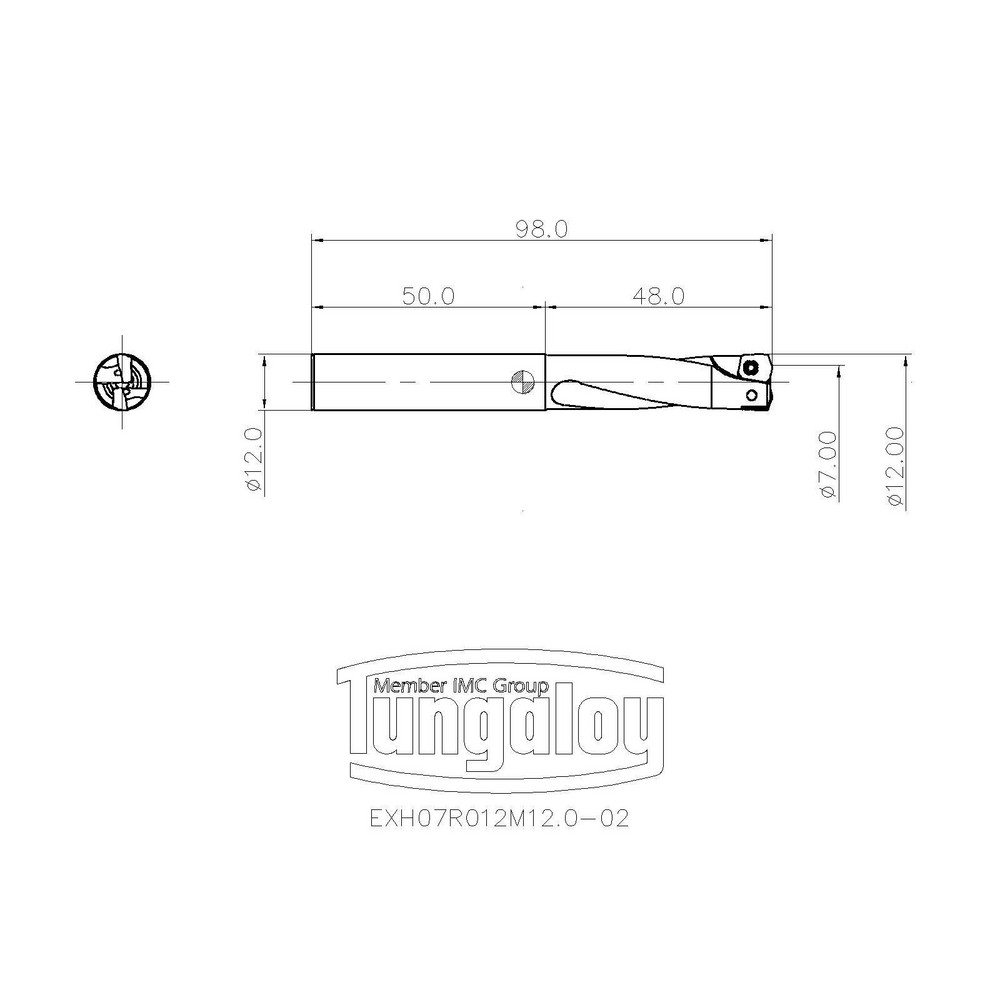

| Minimum Cutting Diameter (mm) | 7.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 0.60 |
| Toolholder Style | EXH |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Compatible Insert Style | XXGT07X305EC-MJ; XXGT07X305EP-MJ |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 98.00 |
| Series | HybridTacMill |
| Head Length (mm) | 48.00 |
| Functional Length (mm) | 98.00 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M |
| Standards | ISO |
| End Mill Type | High Feed |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
| MSC Number | MSC# 47677463 |
