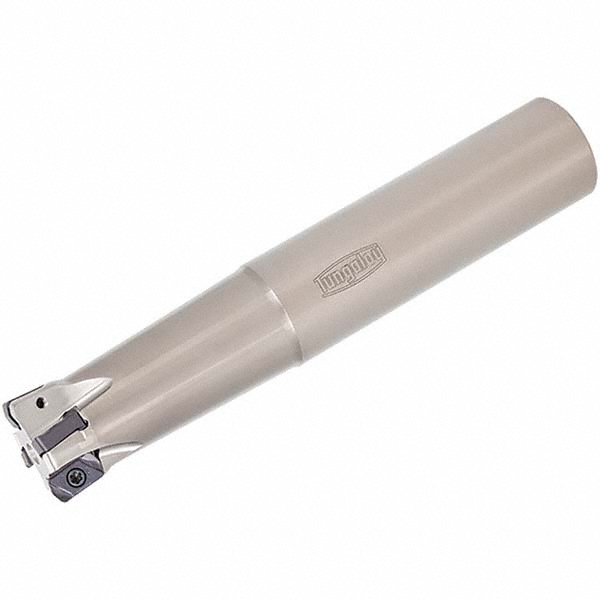

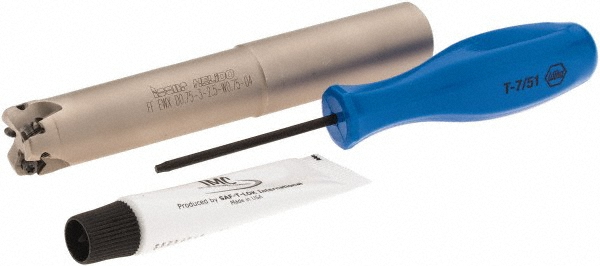

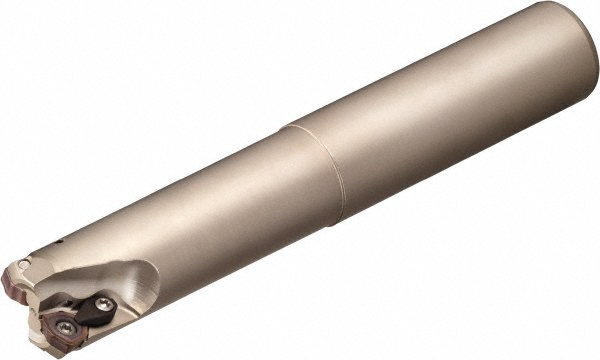

Uses 3 LNMU Inserts, Coolant Through

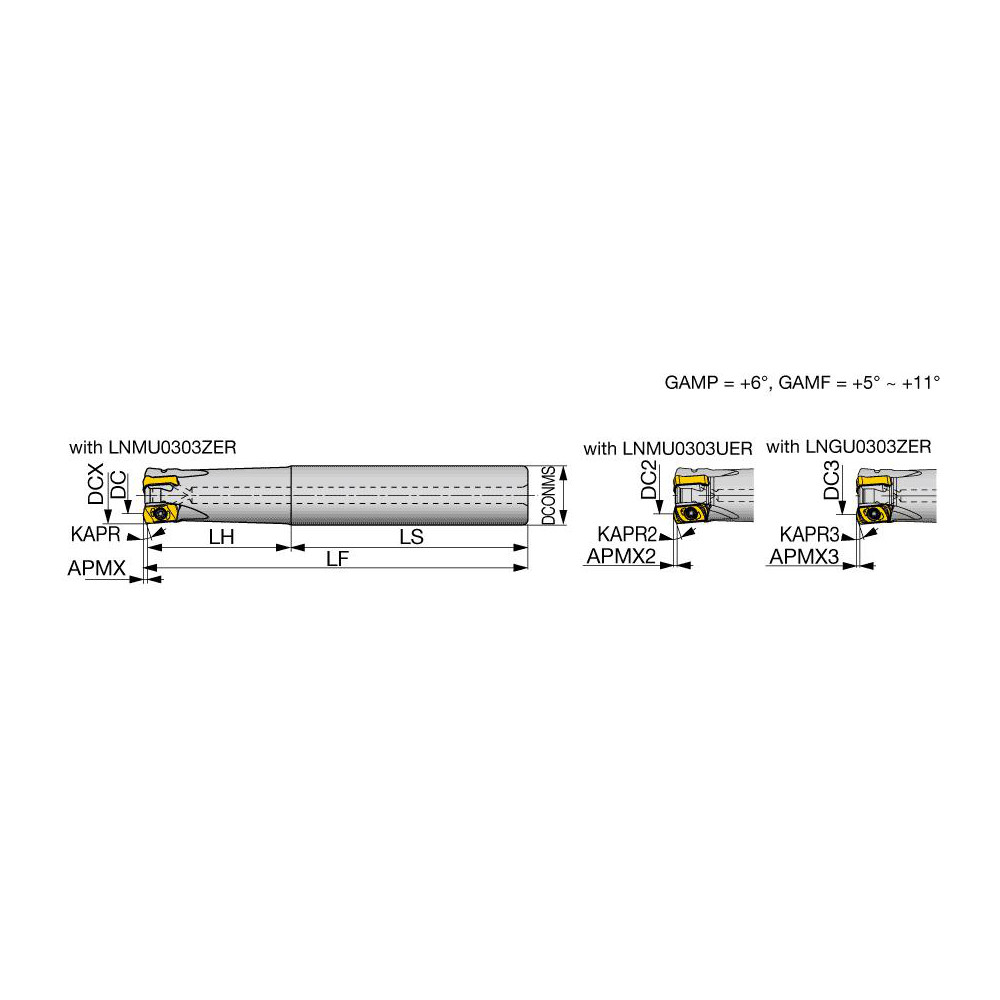

| Minimum Cutting Diameter (Decimal Inch) | 0.4950 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Toolholder Style | EXN |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 0.75 |
| Maximum Ramping Angle | 1.30 |
| Compatible Insert Style | LNMU |
| Compatible Insert Size Code | 0303 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (mm) | 5.00 |
| Series | EXN |
| Head Length (Decimal Inch) | 2.0000 |
| Tool Application | Facing; Plunging; Slotting; Shouldering; Ramping |
| Tool Performance | High-Performance |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 18365585 |
