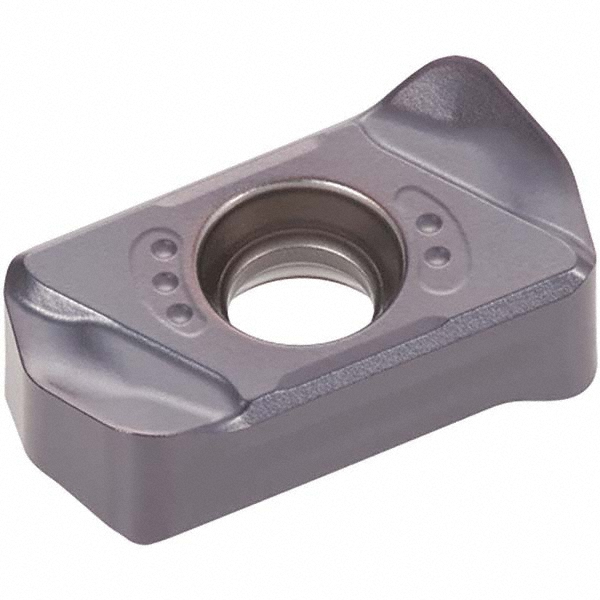

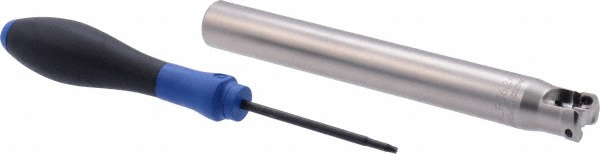

Uses 3 LNGU0303ZER-MH & LNMU0303ZER-MJ Inserts, Coolant Through

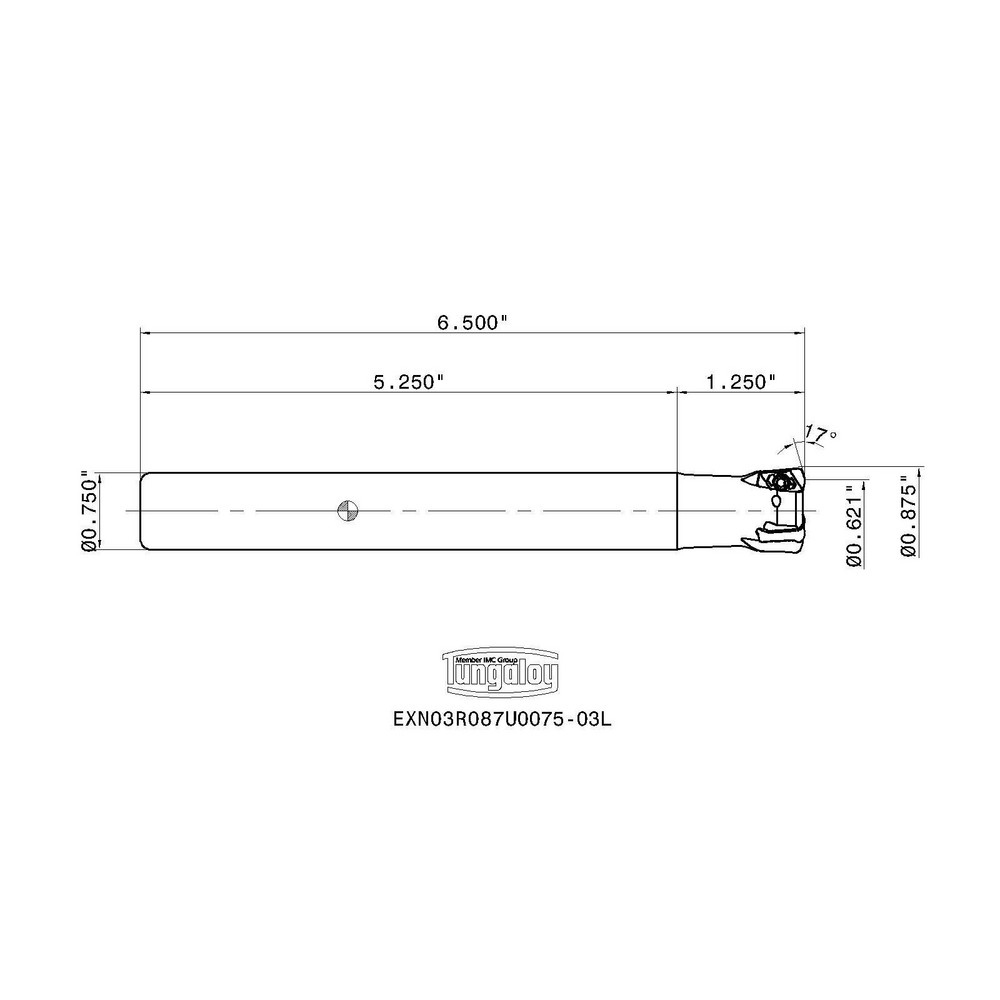

| Minimum Cutting Diameter (Decimal Inch) | 0.6210 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.8750 |
| Maximum Cutting Diameter (Inch) | 7/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Toolholder Style | EXN |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Compatible Insert Style | LNMU0303ZER-MJ; LNGU0303ZER-MH |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 6.5000 |
| Series | Do-Feed |
| Head Length (Decimal Inch) | 1.2500 |
| Functional Length (Decimal Inch) | 6.5000 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO |
| End Mill Type | High Feed |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
| MSC Number | MSC# 47629845 |
