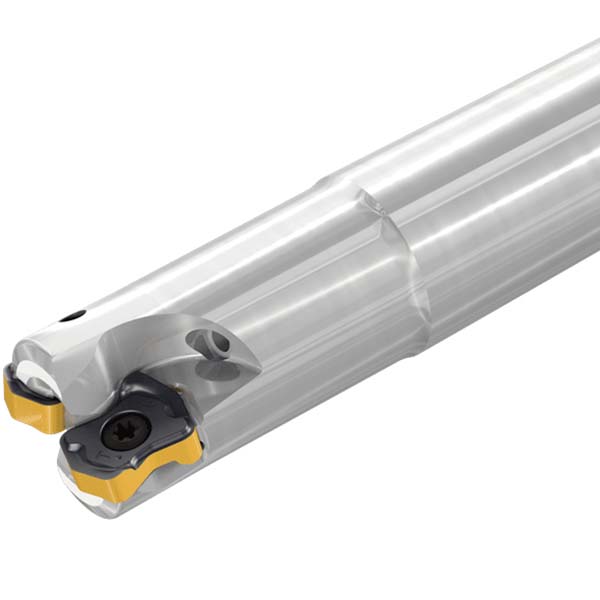

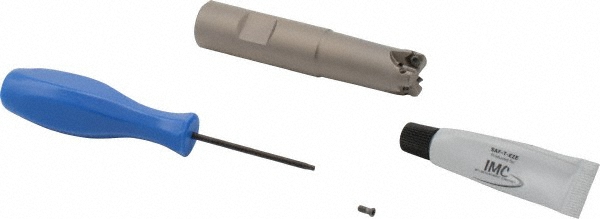

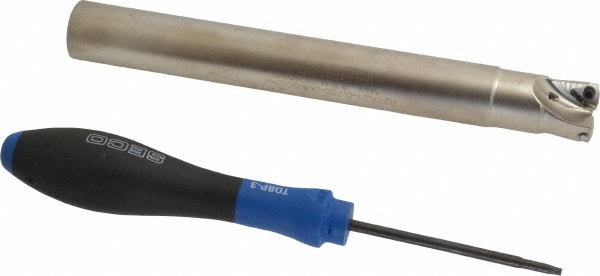

Uses 2 WPMT05H315ZPR-ML Inserts, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.4800 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Toolholder Style | EXP |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Compatible Insert Style | WPMT05H315ZPR-ML |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |

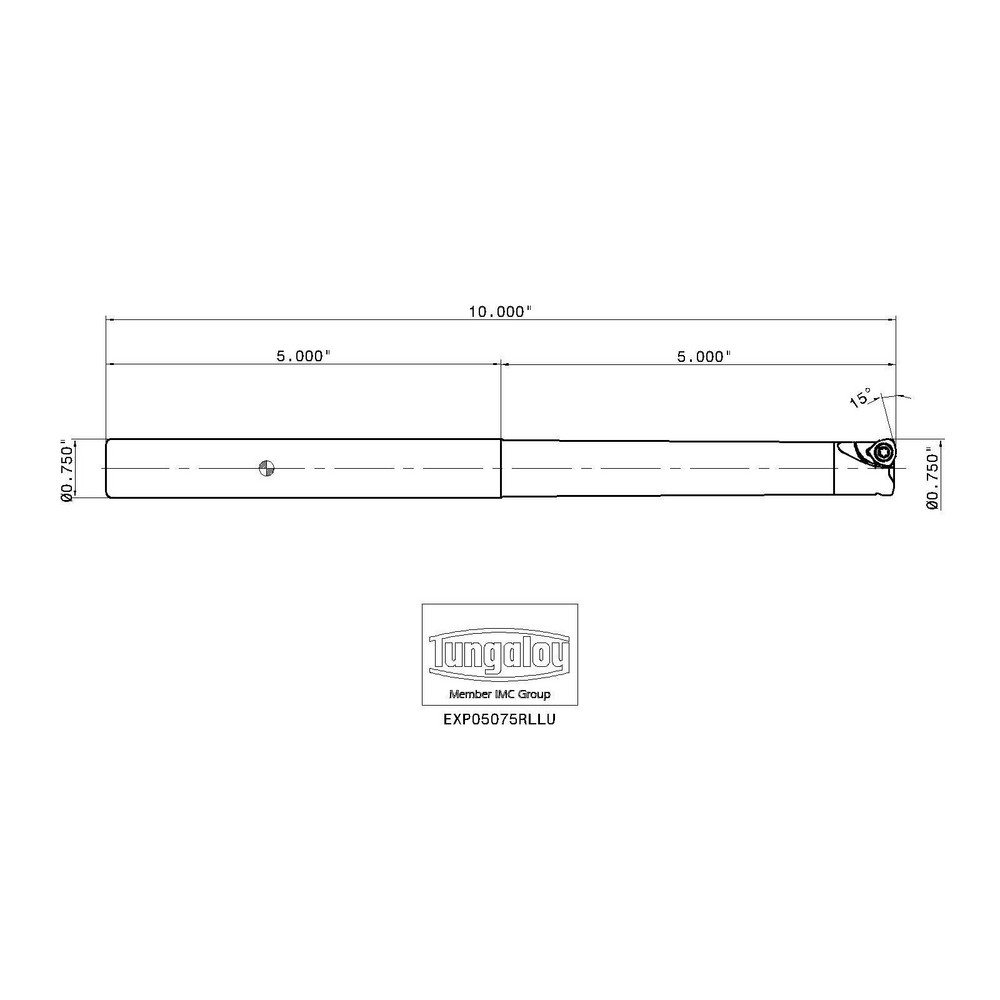

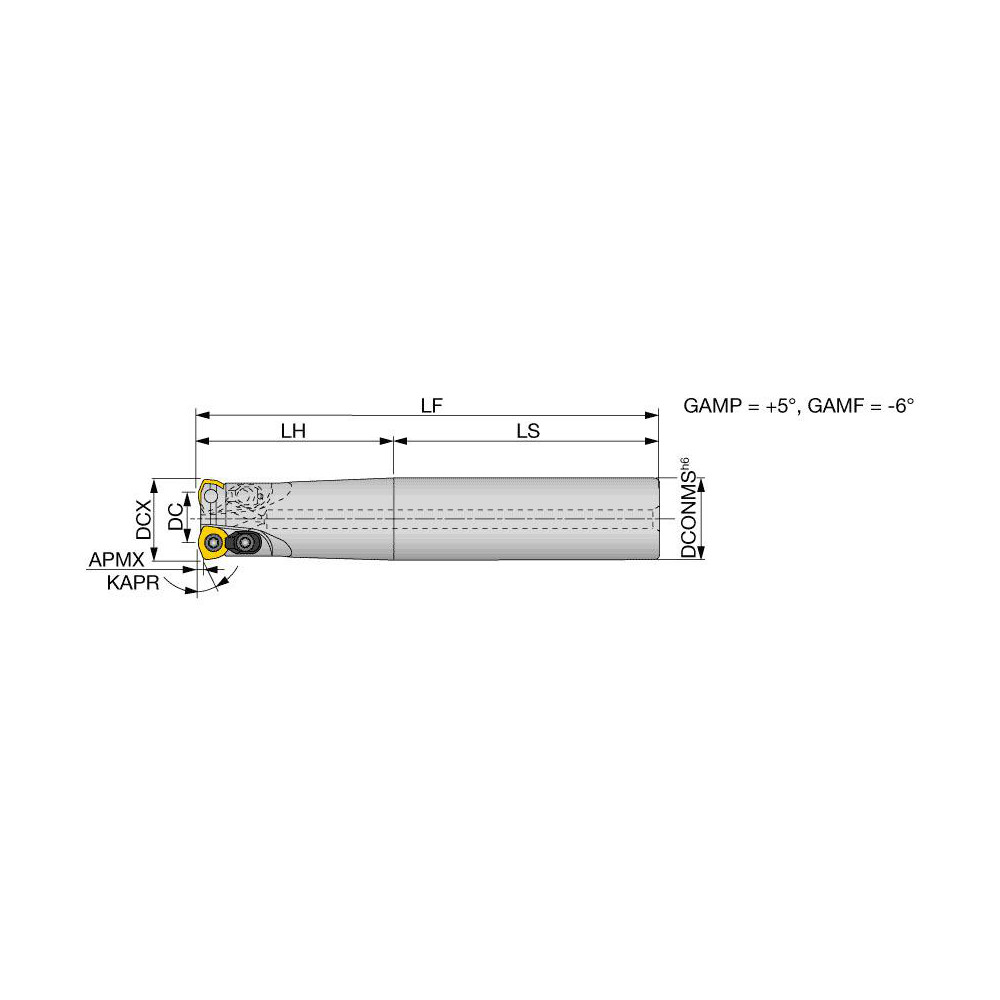

| Overall Length (Decimal Inch) | 10.0000 |
| Series | MillFeed |
| Head Length (Decimal Inch) | 5.0000 |
| Functional Length (Decimal Inch) | 10.0000 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M |
| Standards | ISO |
| End Mill Type | High Feed |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
| MSC Number | MSC# 47677307 |
