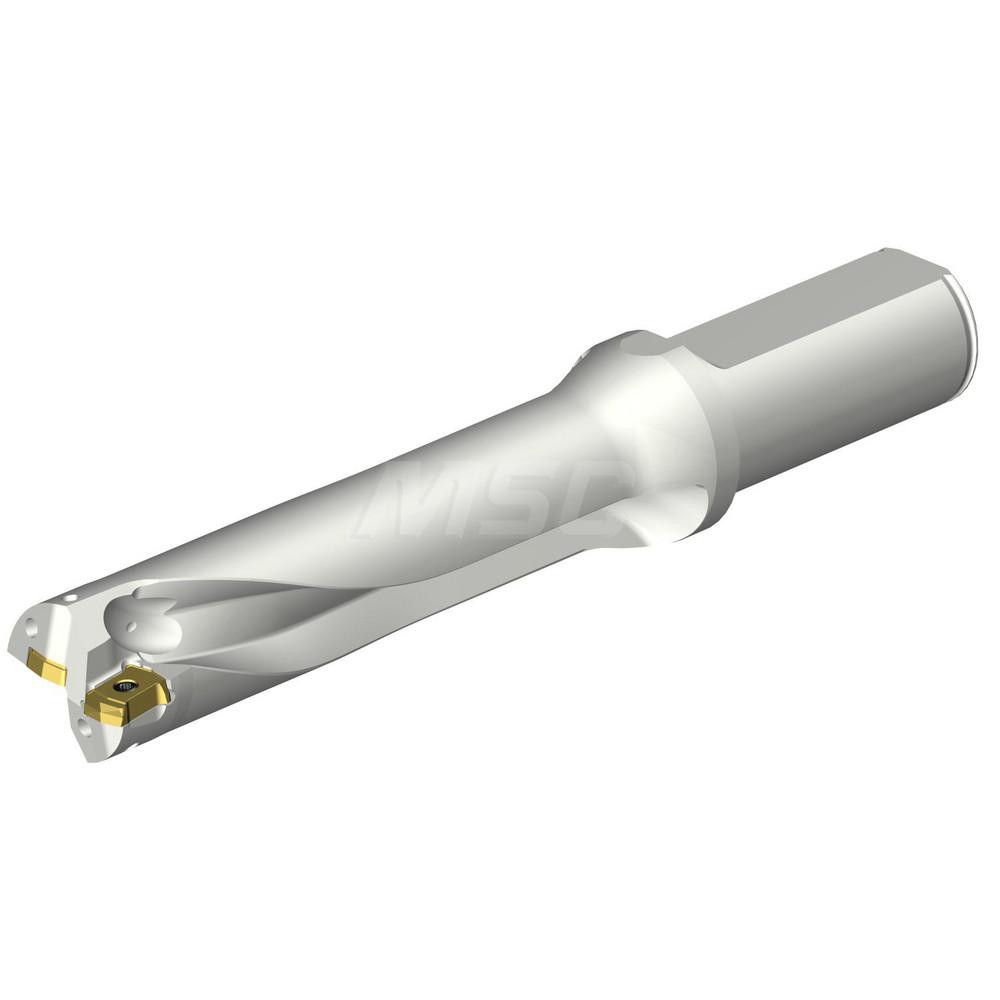

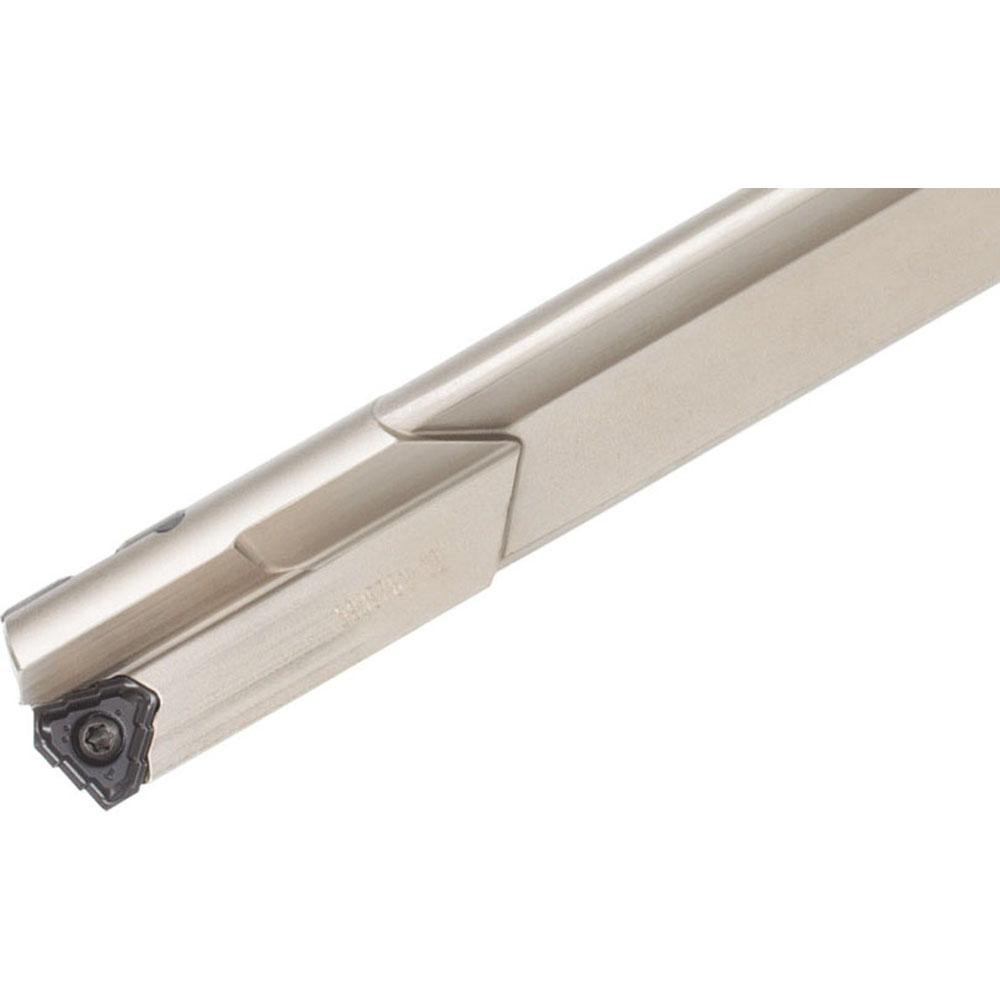

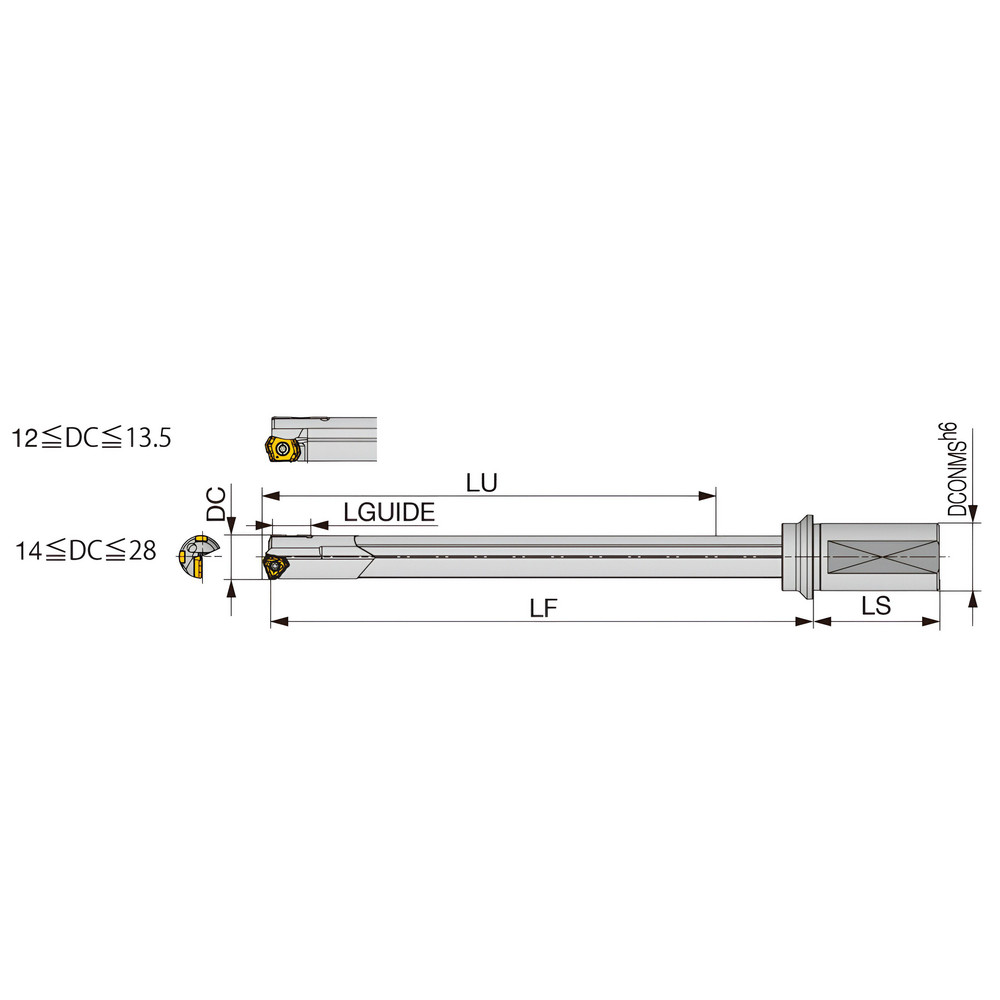

Weldon Flat & Flange Shank, Uses LOGT 060204 Inserts, Series MCTR
| Compatible Drill Style | MCTR |
|---|---|
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Inch) | 17/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Maximum Drill Depth (Decimal Inch) | 8.3390 |
| Maximum Drill Depth (mm) | 211.80 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | LOGT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.9200 |
| Overall Length (Inch) | 11-59/64 |
| Series | MCTR |
| Flute Length (mm) | 211.80 |
| Body Length (mm) | 245.00 |
| Body Length (Decimal Inch) | 9.6460 |
| Shank Length (Decimal Inch) | 2.2050 |
| Shank Length (mm) | 56.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.08 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | LOGT060204 |
| Insert Lock Screw | SR10503833L040 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 06423073 |
