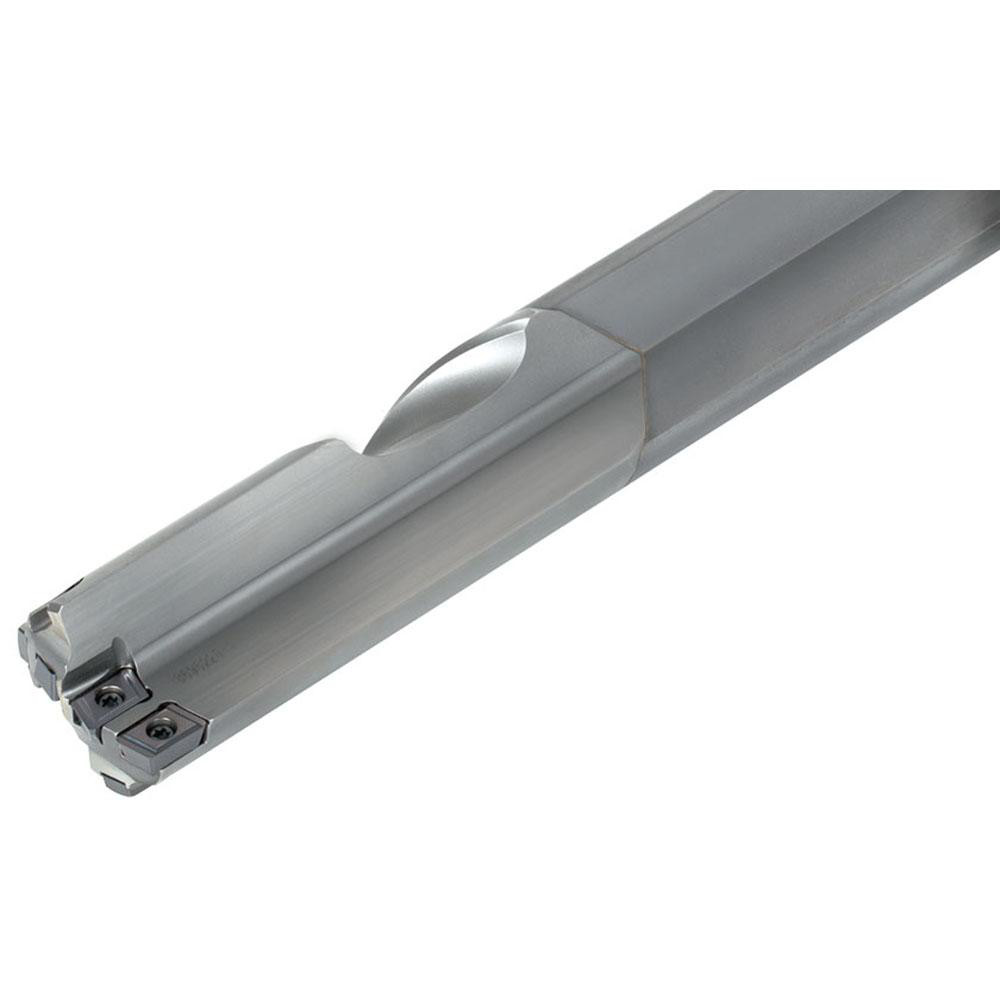

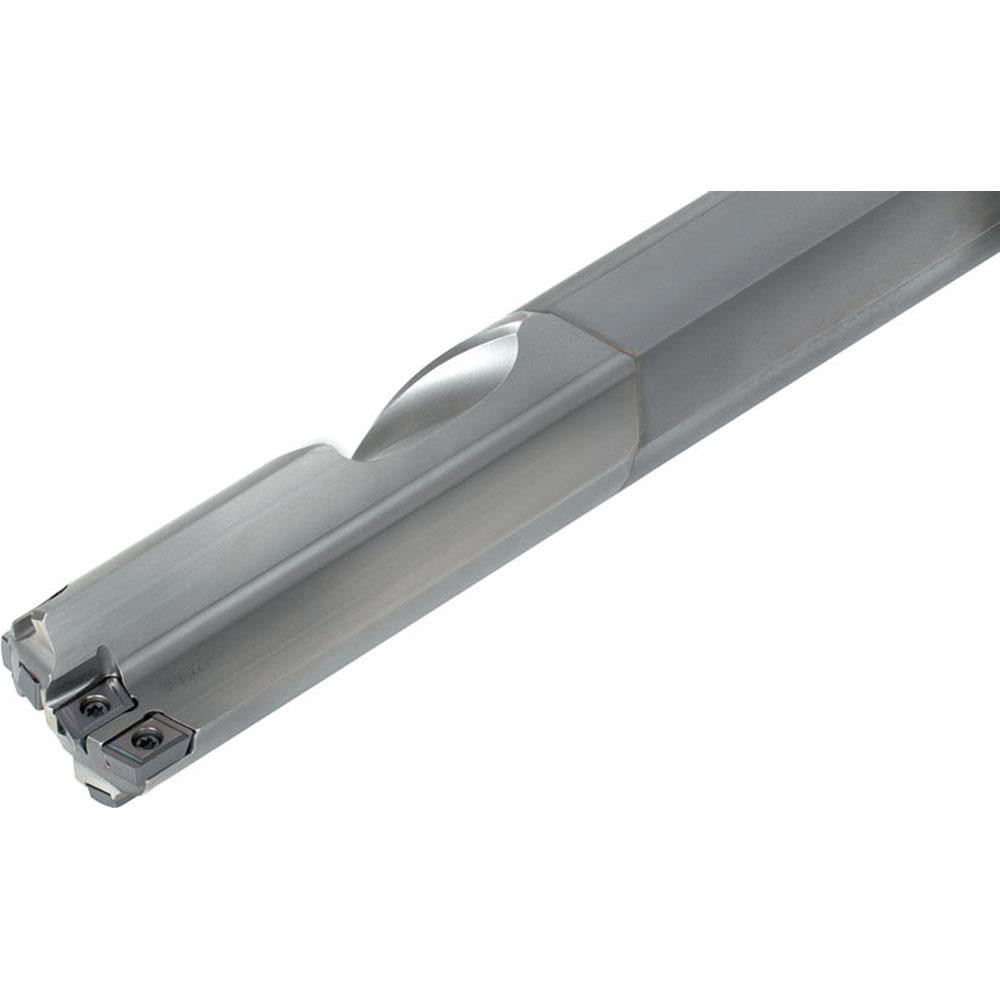

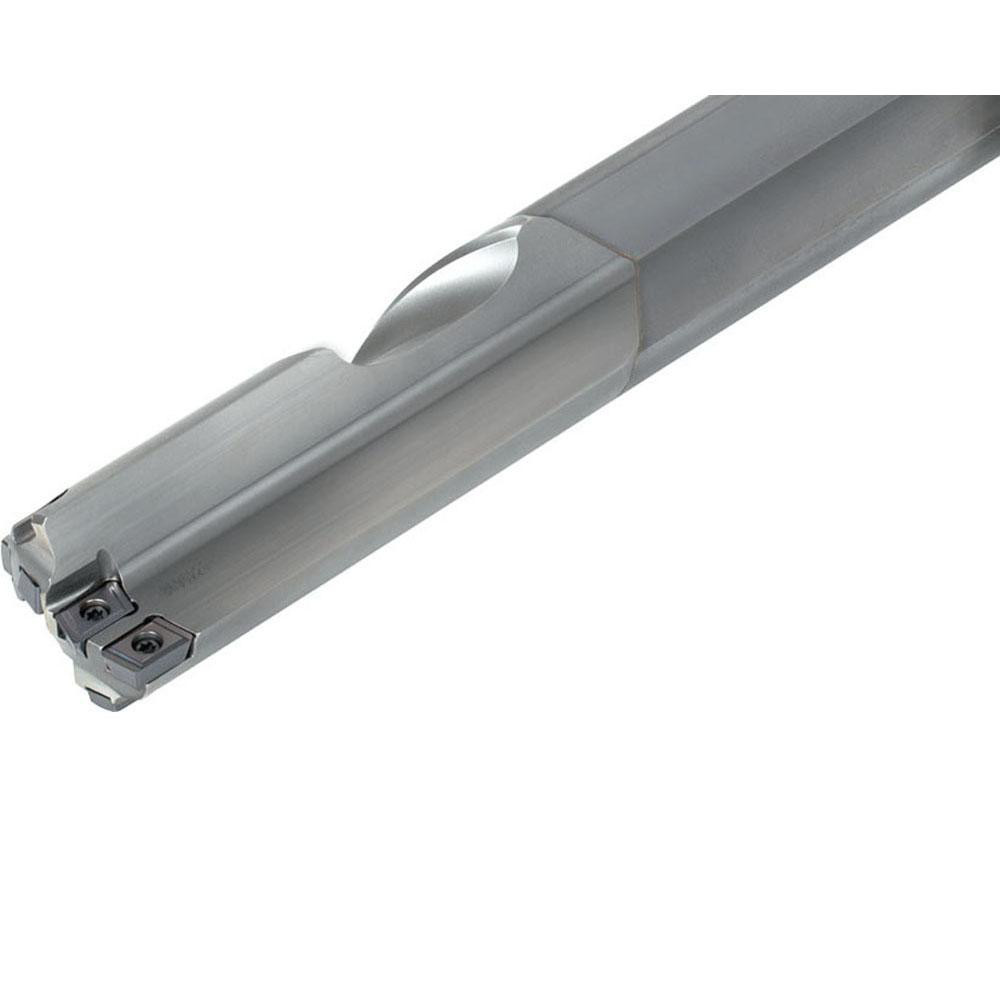

Weldon Flat & Flange Shank, Uses FBM 070408 Inserts, Series MCTR-F
| Compatible Drill Style | MCTR |
|---|---|
| Maximum Drill Diameter (mm) | 34.93 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3752 |
| Maximum Drill Depth (Decimal Inch) | 13.9020 |
| Maximum Drill Depth (mm) | 353.10 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2520 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 3 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | FBM |
| Compatible Insert Size Code | 070408 |
| Drill Depth by Diameter Ratio | 10xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | MCTR-F |

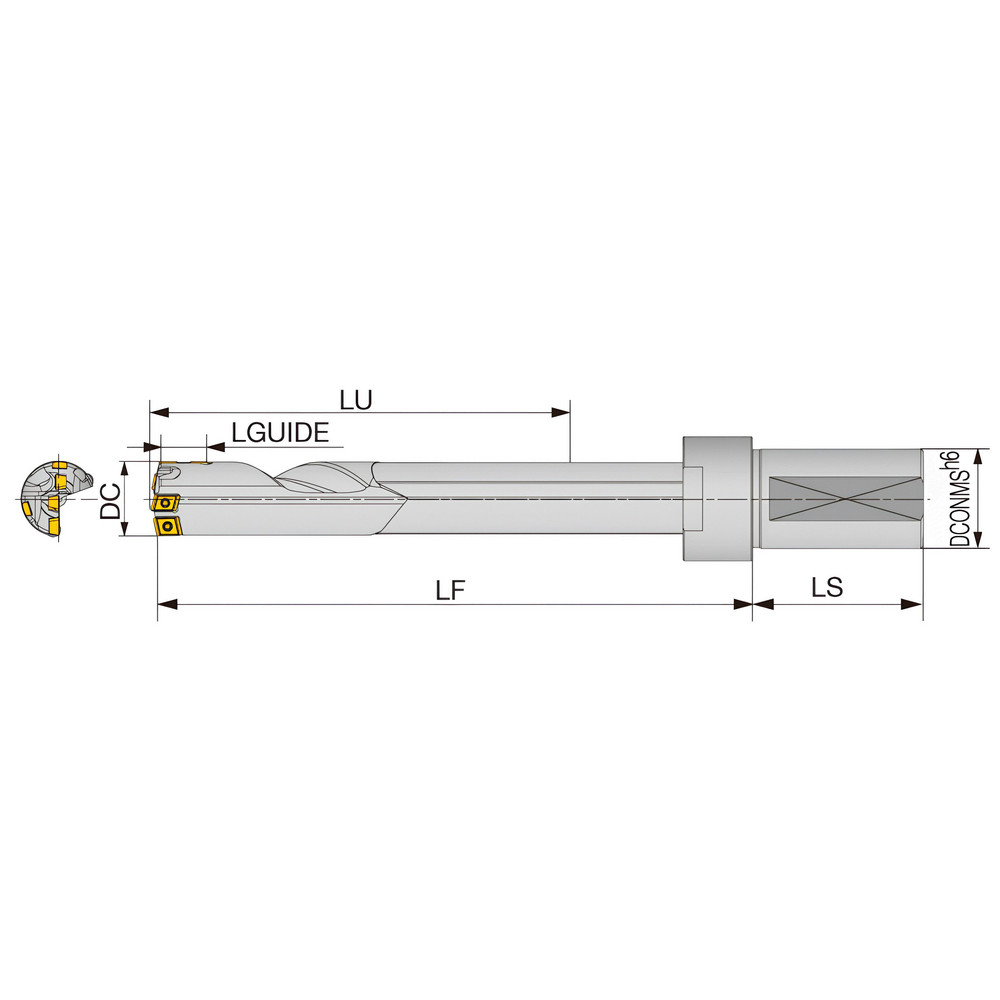

| Flute Length (mm) | 353.10 |
| Body Length (mm) | 428.00 |
| Body Length (Decimal Inch) | 16.8500 |
| Shank Length (Decimal Inch) | 2.7170 |
| Shank Length (mm) | 69.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.50 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | FBM070408 |
| Insert Lock Screw | CSTB-2.5 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 06405203 |
