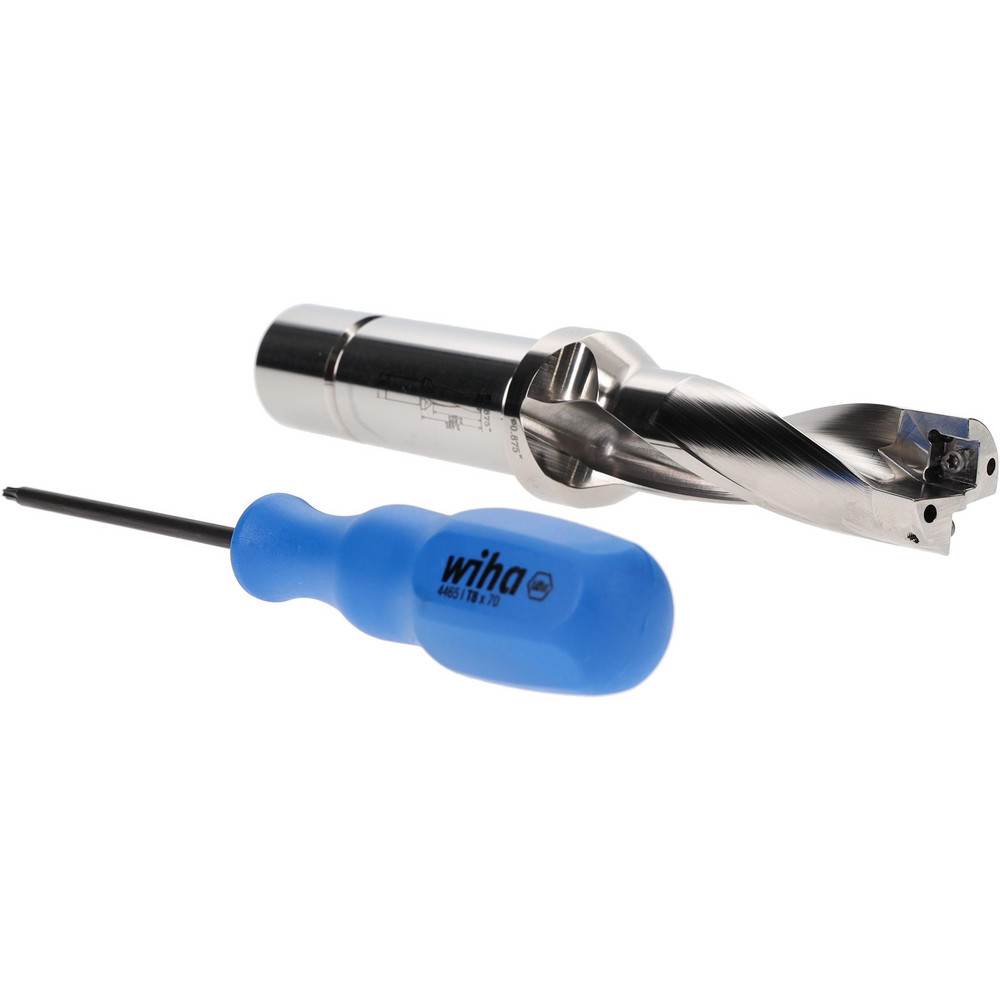

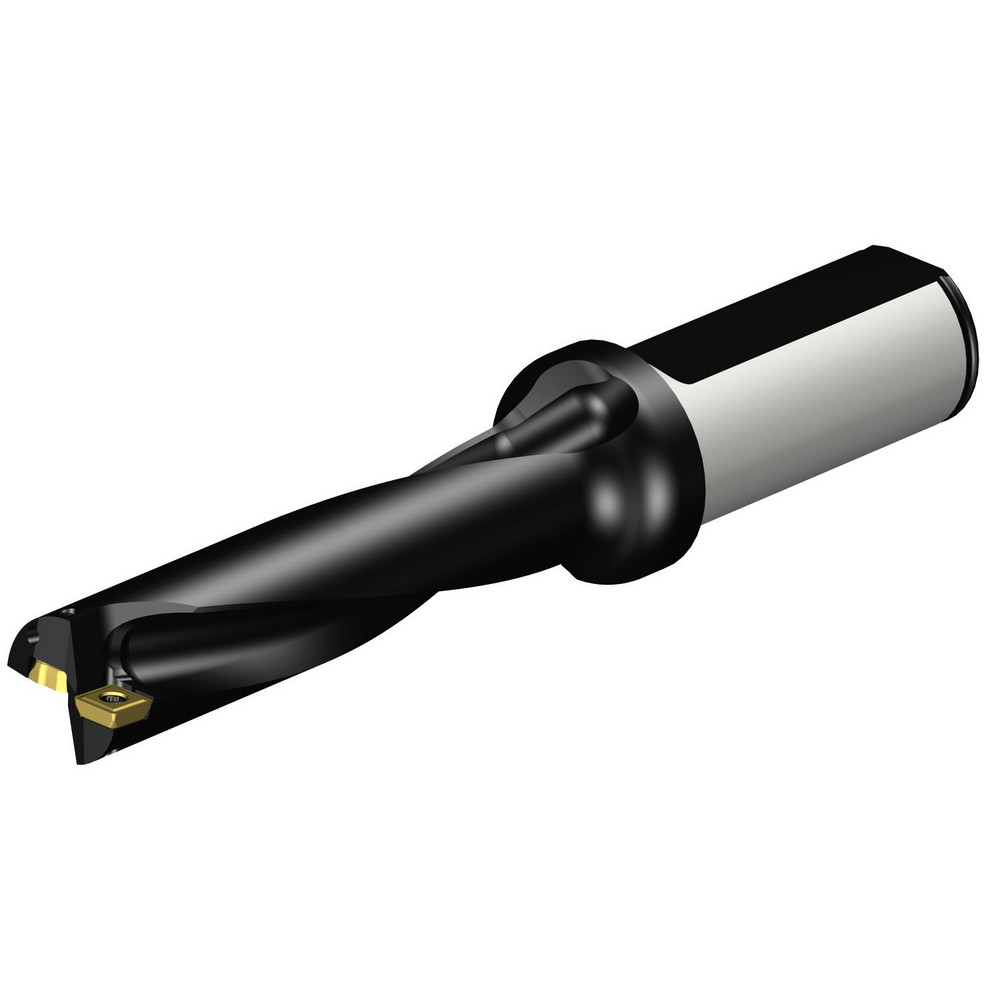

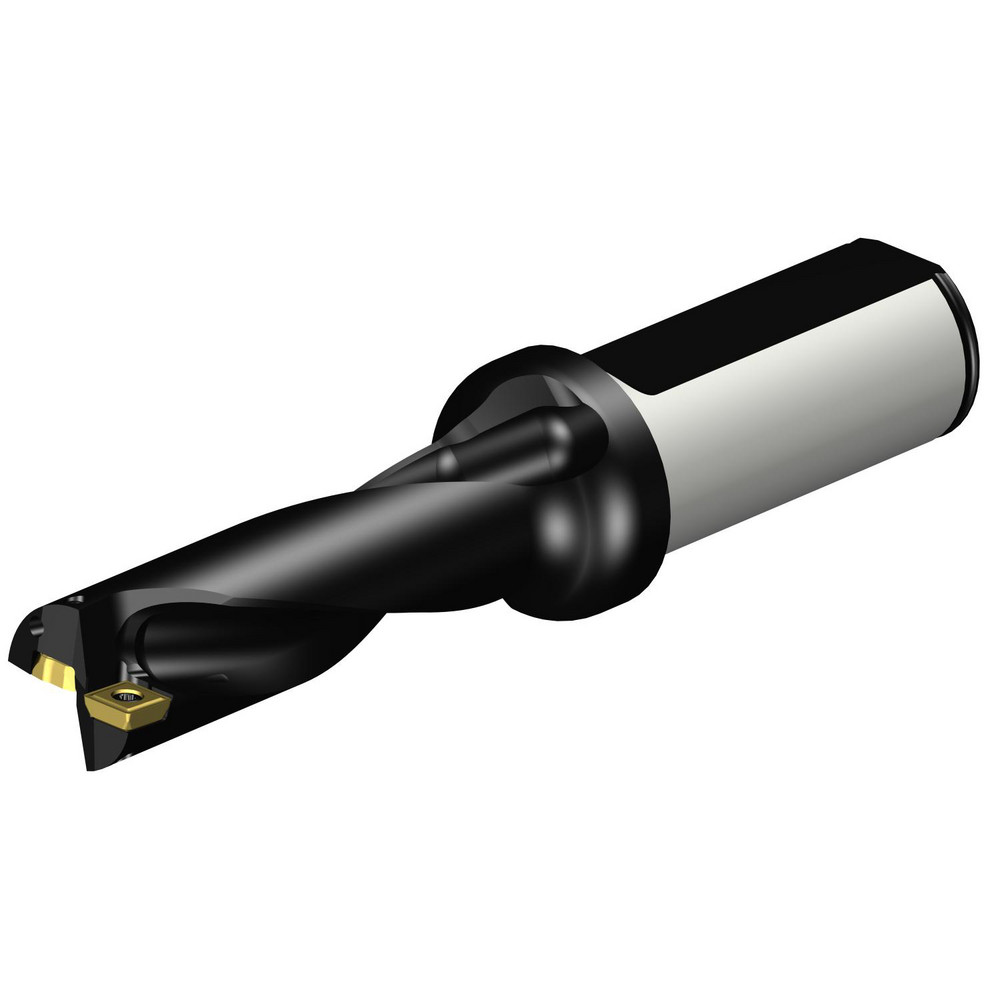

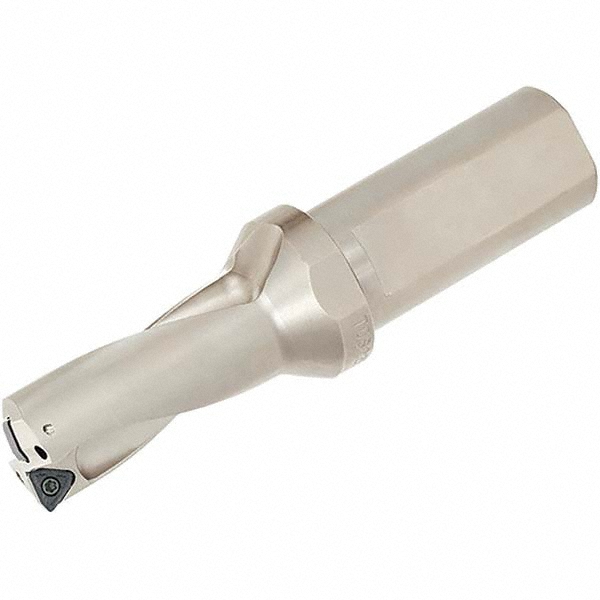

Weldon Flat & Flange Shank, Uses WWMU 05X205 Inserts, Series TDS-F
| Compatible Drill Style | TDSU |
|---|---|
| Maximum Drill Diameter (Inch) | 7/8 |
| Maximum Drill Diameter (Decimal Inch) | 0.9110 |
| Maximum Drill Depth (Decimal Inch) | 1.7820 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WWMU |
| Compatible Insert Size Code | 05X205 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.8620 |
| Series | TDS-F |
| Flute Length (Decimal Inch) | 1.7820 |
| Body Length (Decimal Inch) | 2.6570 |
| Shank Length (Decimal Inch) | 2.2050 |
| Neck Diameter (Inch) | 1.4570 |
| Modular Connection Size | 1 in |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2280 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WWMU05X205 |
| Collar Diameter (Decimal Inch) | 1.4570 |
| Insert Lock Screw | CSPB-2.2 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 57413841 |
