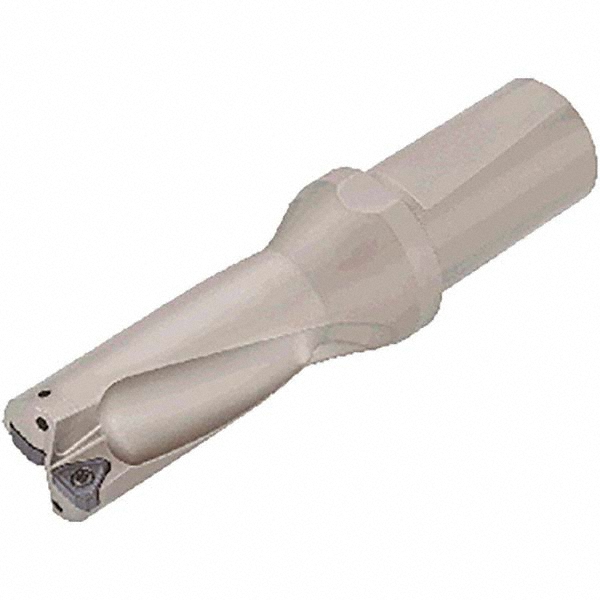

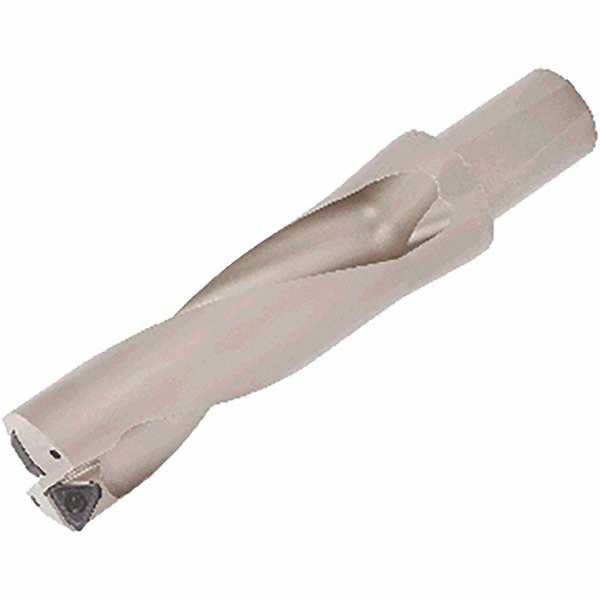

Whistle Notch & Flange Shank, Uses WWMU 11X512 Inserts, Series TDS-W
| Compatible Drill Style | TDSU |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/4 |
| Maximum Drill Diameter (Decimal Inch) | 1.8040 |
| Maximum Drill Depth (Decimal Inch) | 5.3130 |
| Shank Type | Flange; Whistle Notch |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WWMU |
| Compatible Insert Size Code | 11X512 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.9870 |
| Series | TDS-W |
| Flute Length (Decimal Inch) | 5.3130 |
| Body Length (Decimal Inch) | 7.2990 |
| Shank Length (Decimal Inch) | 2.6880 |
| Neck Diameter (Inch) | 2.1650 |
| Modular Connection Size | 1-1/2 in |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4450 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WWMU11X512 |
| Collar Diameter (Decimal Inch) | 2.1650 |
| Insert Lock Screw | CSTB-5 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 56080310 |
