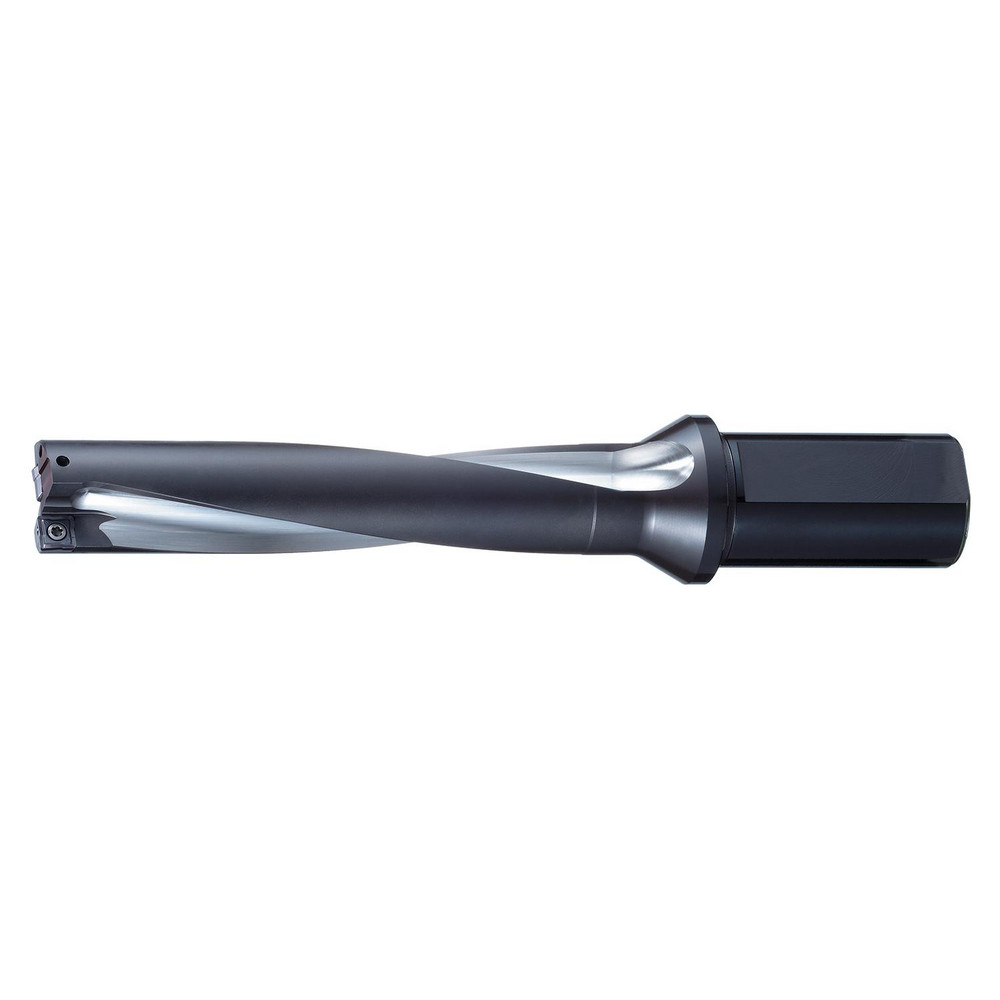

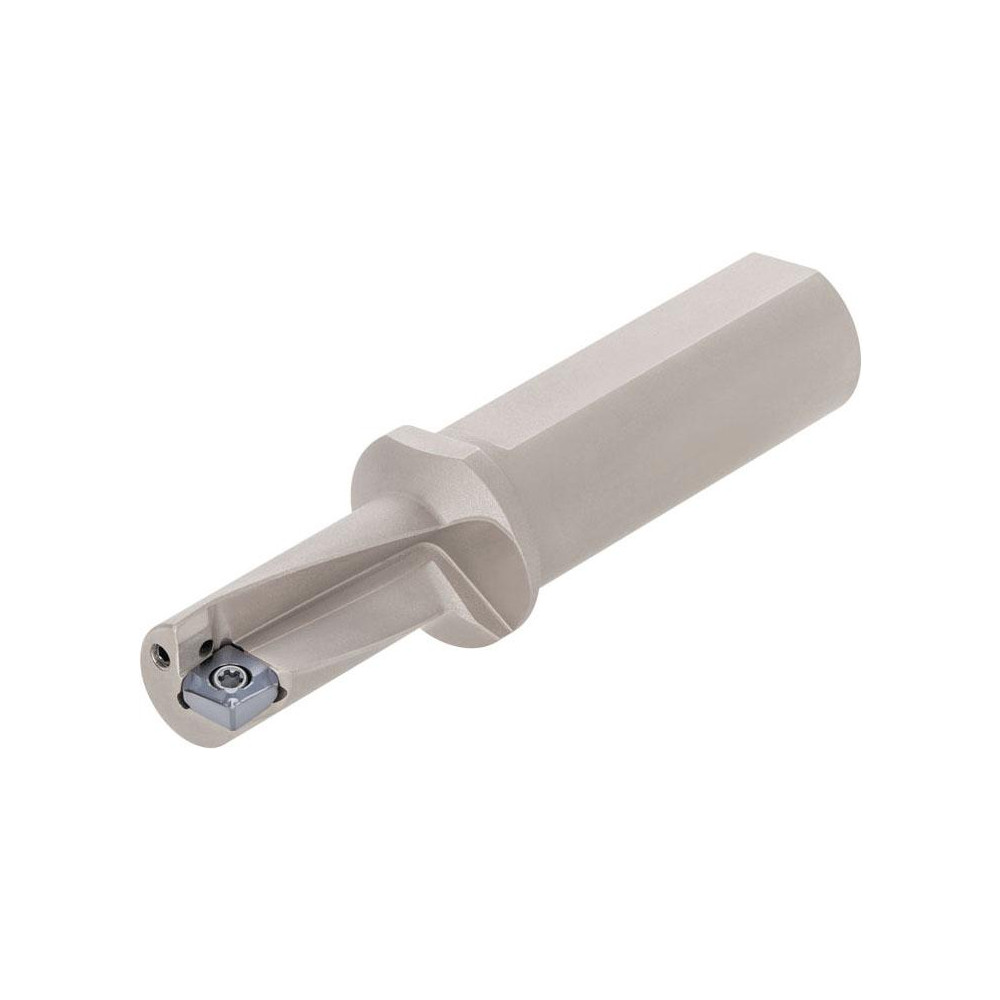

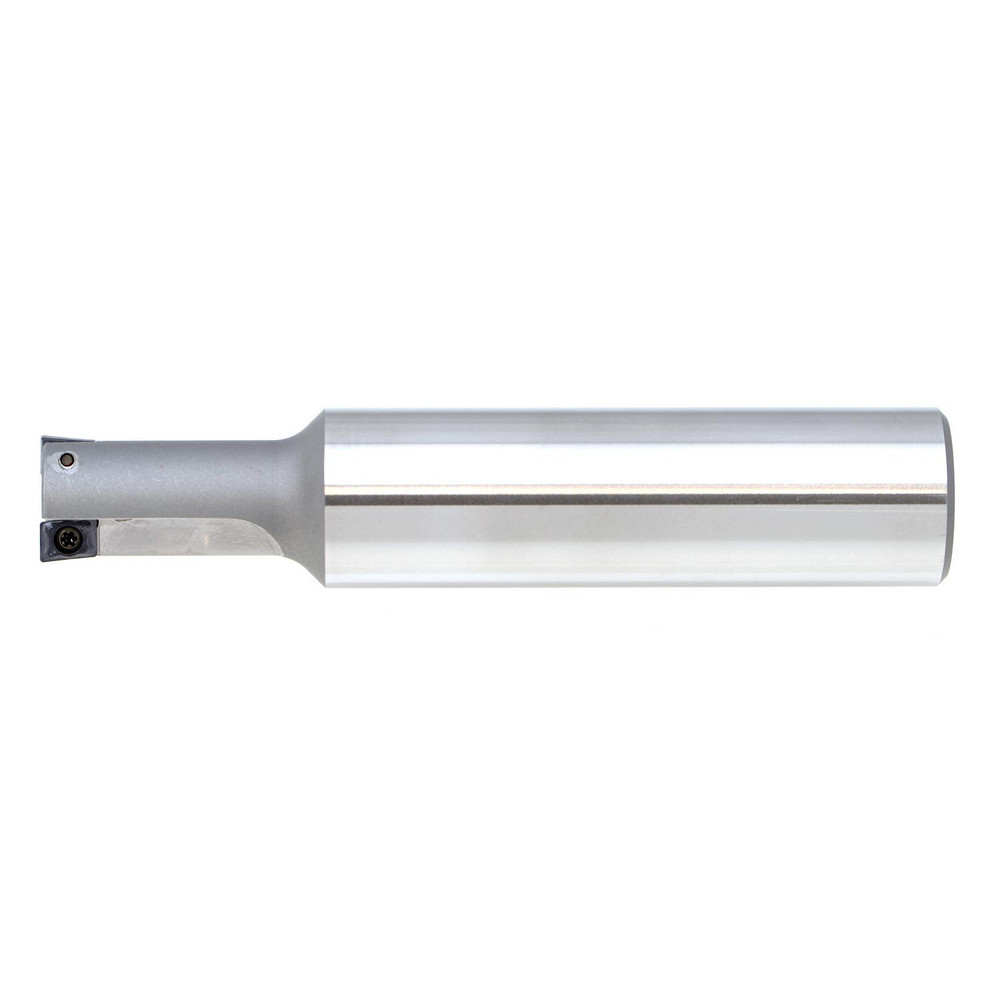

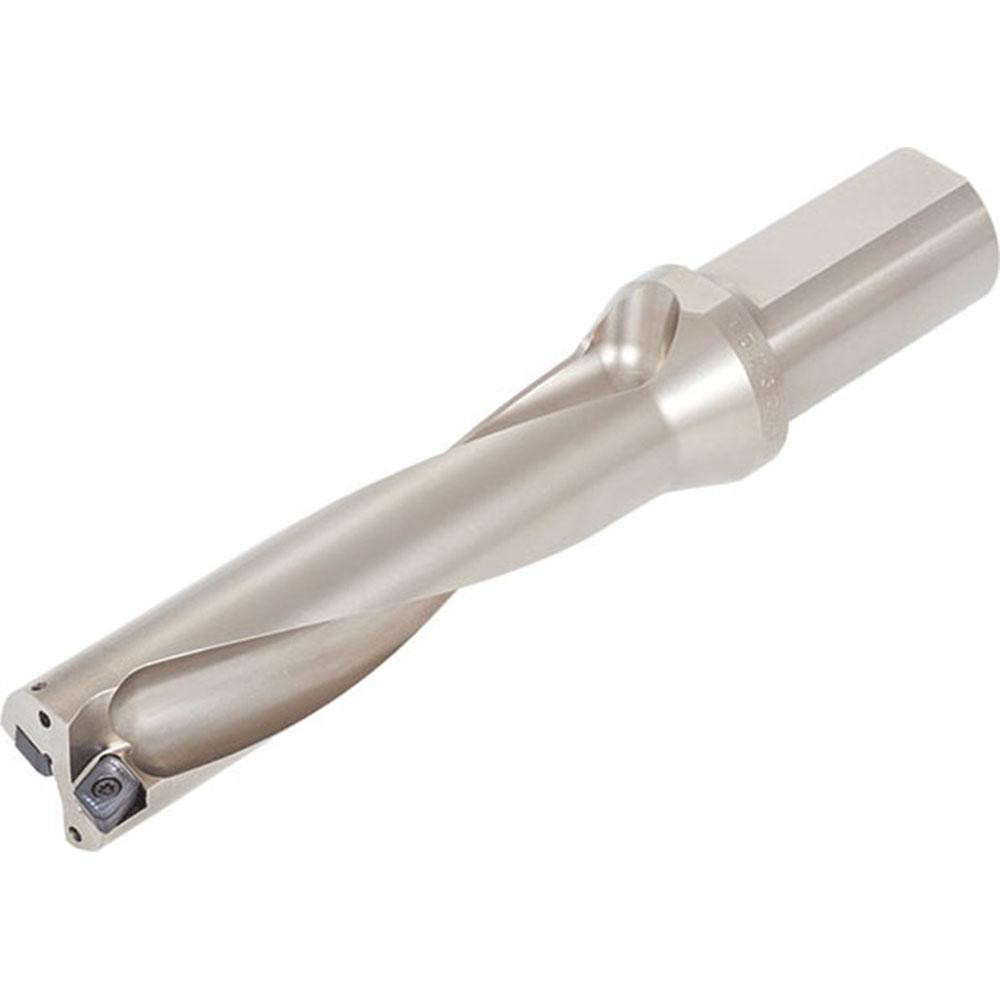

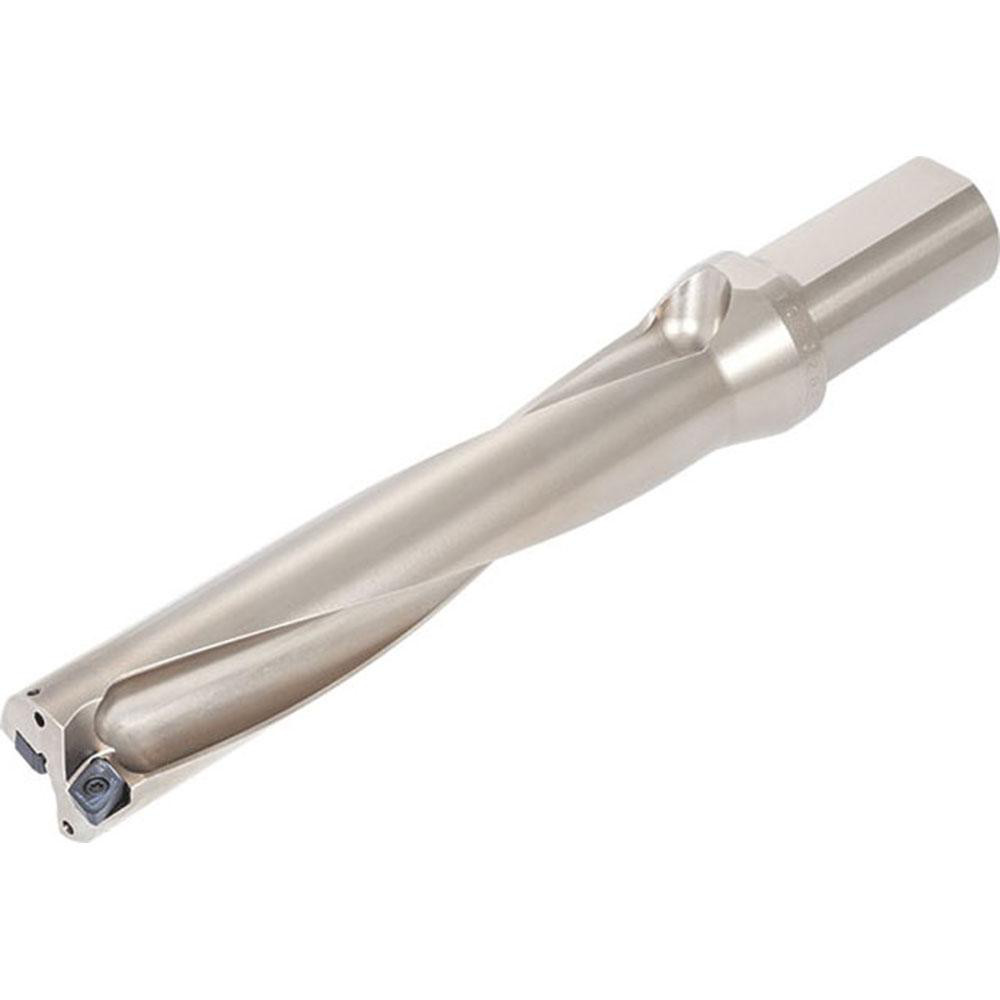

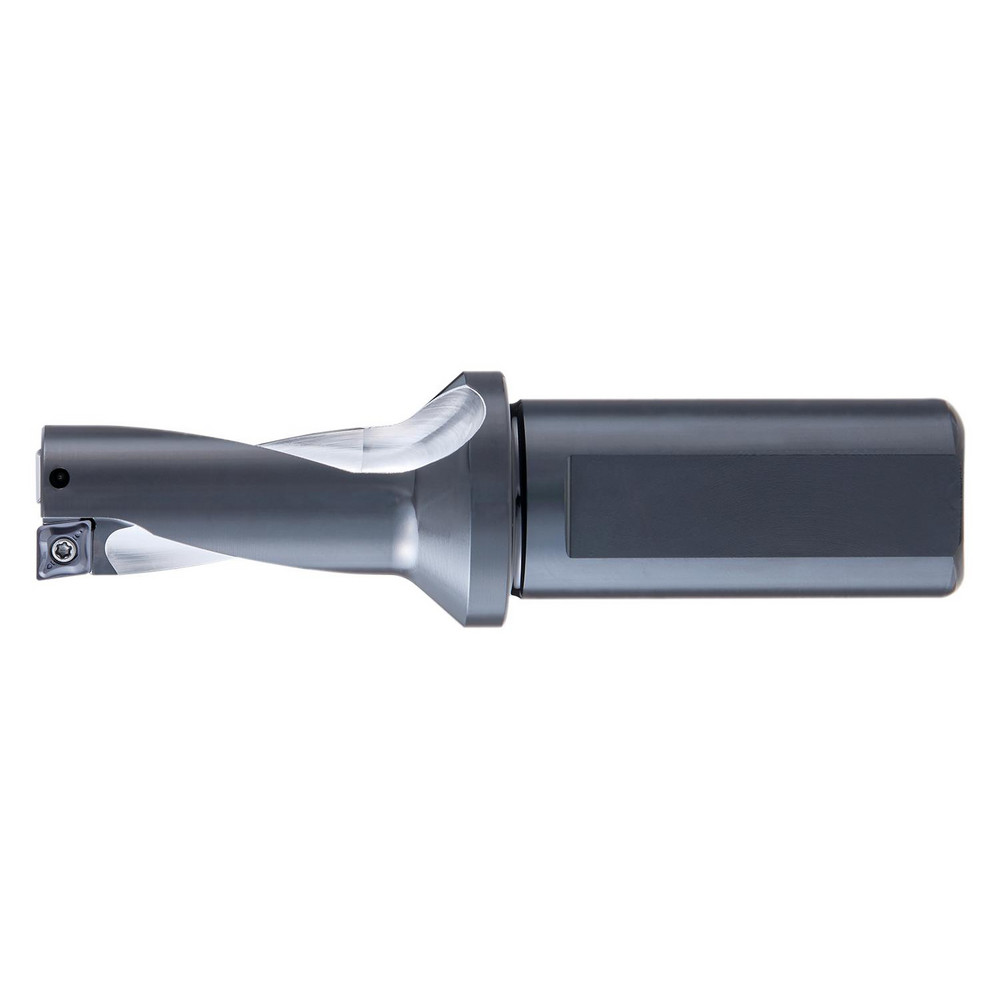

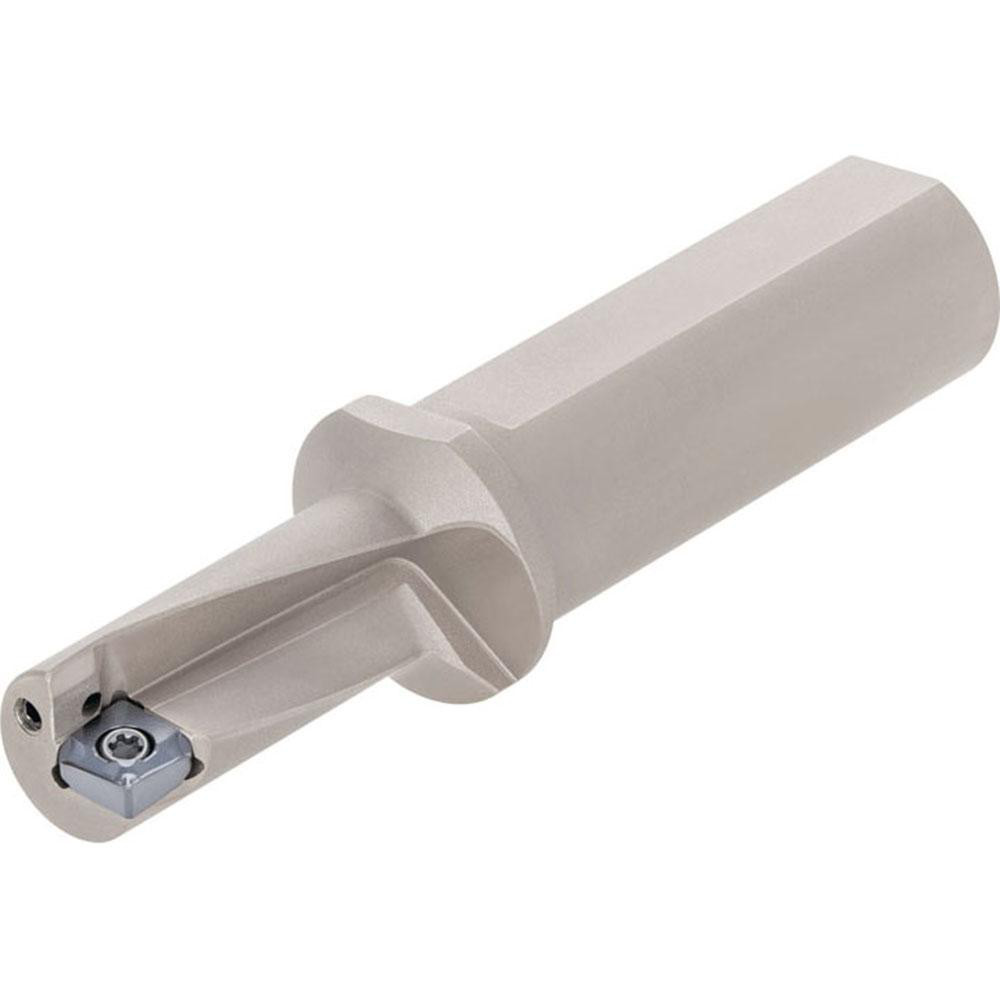

Weldon Flat & Flange Shank, Uses XPMT 040104 Inserts, Series TDX-F
| Compatible Drill Style | TDX |
|---|---|
| Maximum Drill Diameter (mm) | 14.70 |
| Maximum Drill Depth (mm) | 54.40 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 20 |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | XPMT |
| Compatible Insert Size Code | 040104 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | TDX-F |

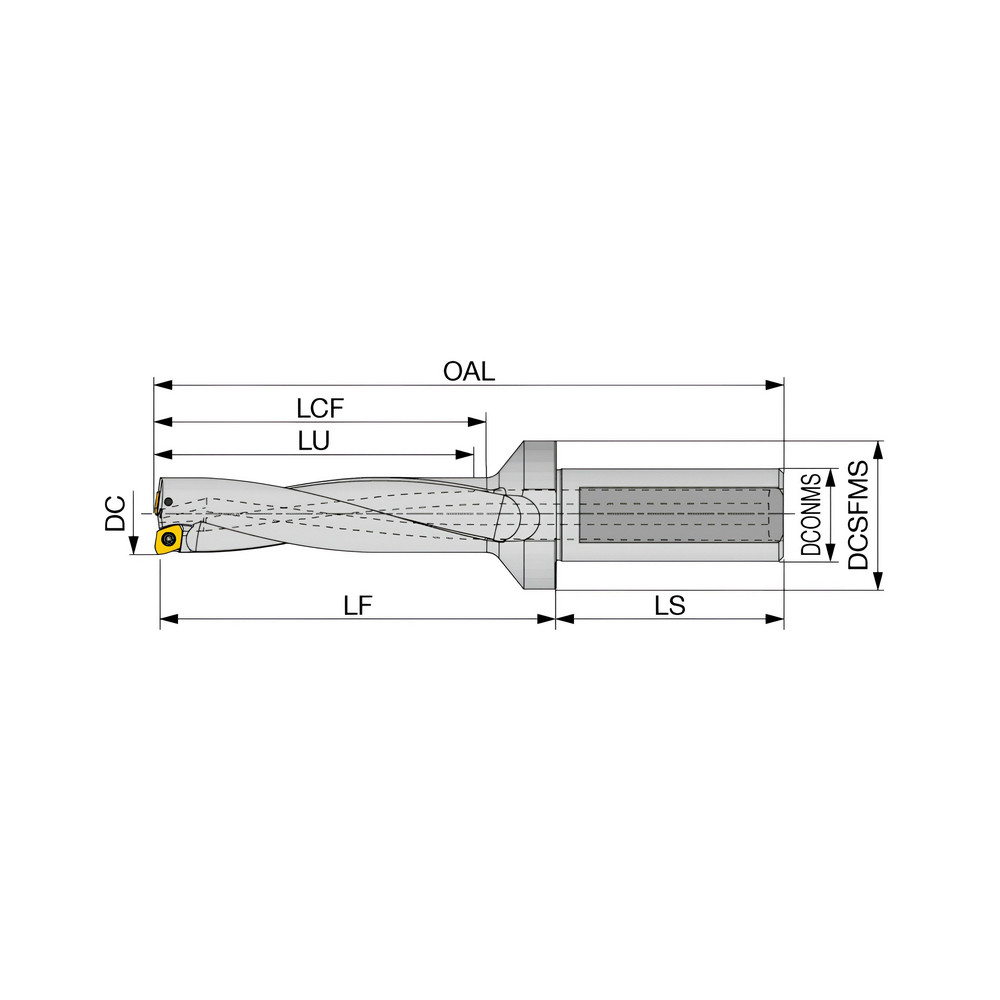

| Flute Length (mm) | 54.40 |
| Body Length (mm) | 70.00 |
| Shank Length (mm) | 49.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 4.30 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XPMT040104 |
| Collar Diameter (mm) | 25.00 |
| Insert Lock Screw | CSPB-2H |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 08958407 |
