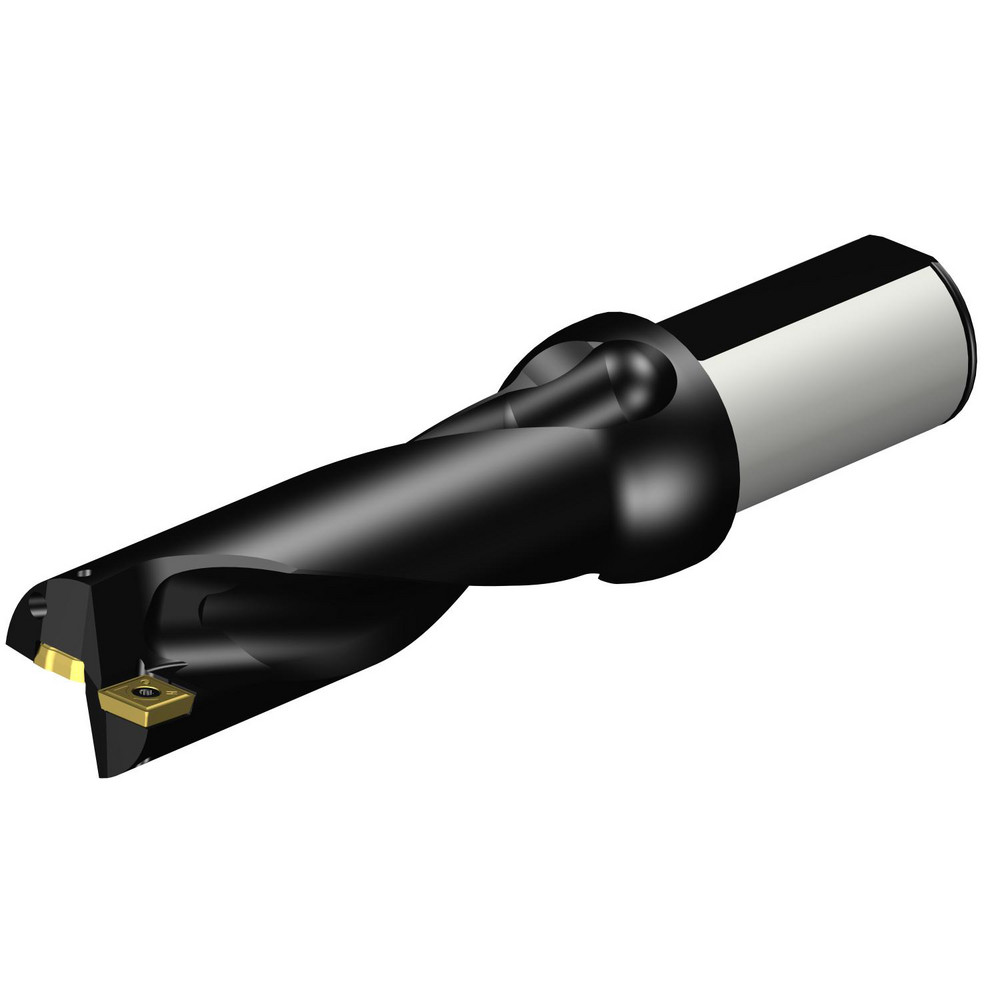

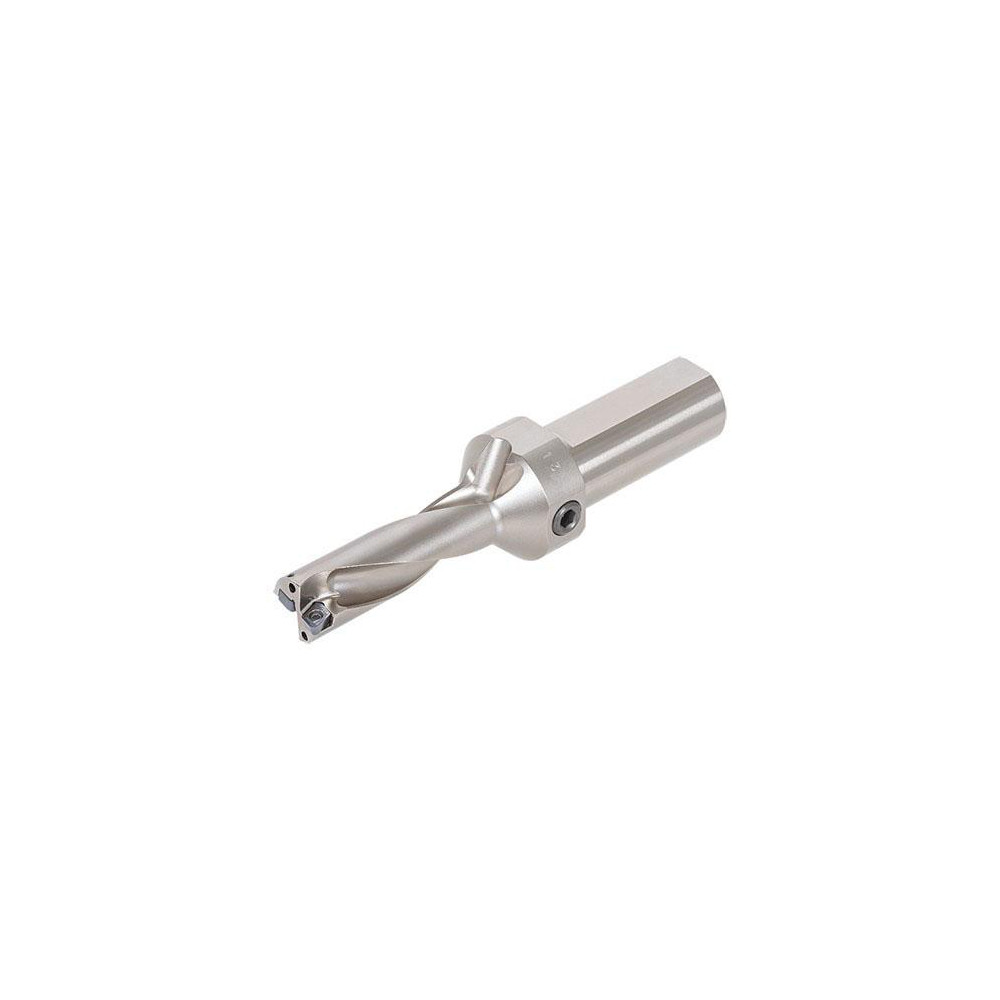

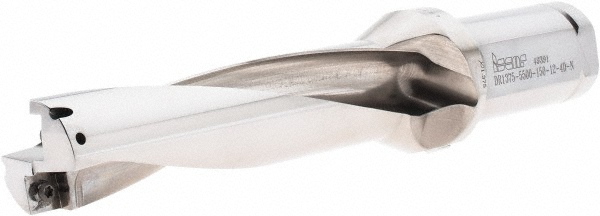

Weldon Flat & Flange Shank, Uses XPMT 110412 Inserts, Series TDXU-FS
| Compatible Drill Style | TDXU |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.5190 |
| Maximum Drill Depth (Inch) | 4-1/8 |
| Maximum Drill Depth (Decimal Inch) | 4.1680 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XPMT |
| Compatible Insert Size Code | 110412 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |

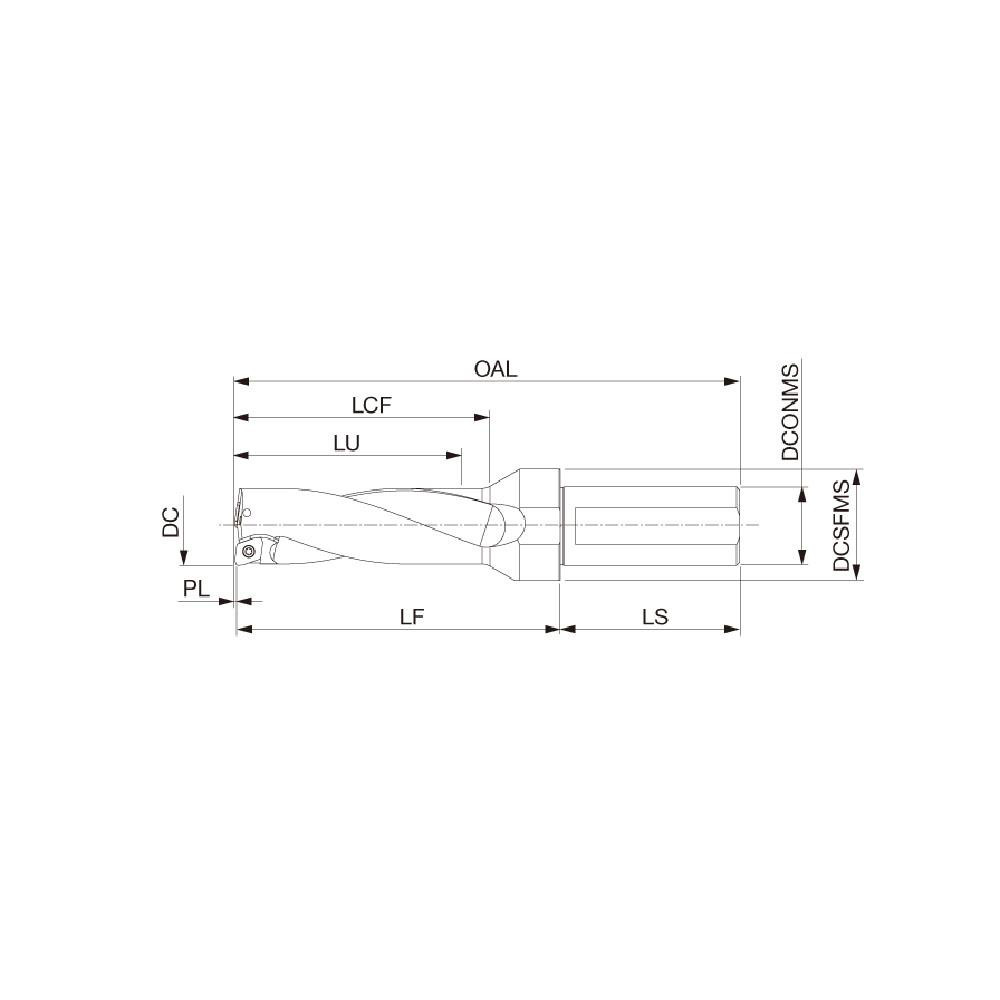

| Overall Length (Decimal Inch) | 8.2610 |
| Series | TDXU-FS |
| Flute Length (Decimal Inch) | 4.1680 |
| Body Length (Decimal Inch) | 5.5300 |
| Shank Length (Decimal Inch) | 2.6880 |
| Neck Diameter (Inch) | 1.9690 |
| Modular Connection Size | 1-1/2 in |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4409 |
| Insert Size (mm) | 11.20 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XPMT110412 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | CSTB-4 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 55753768 |
