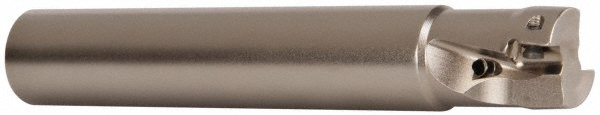

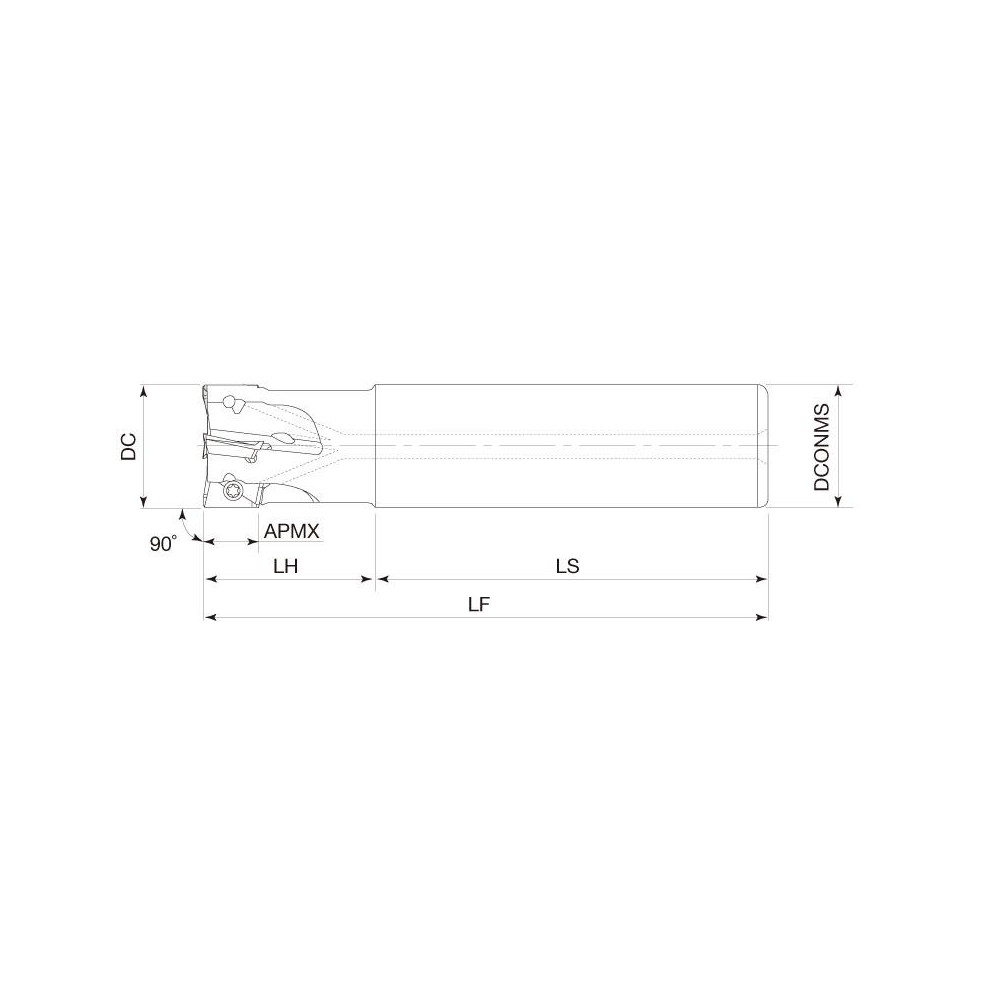

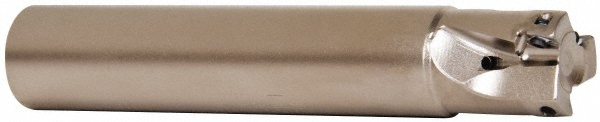

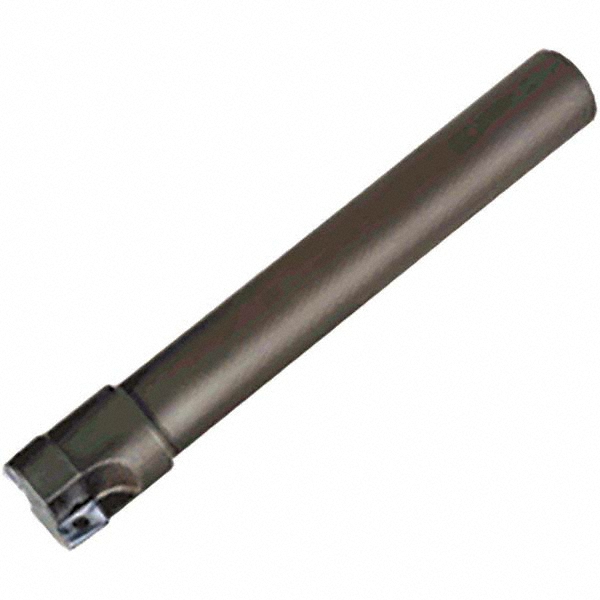

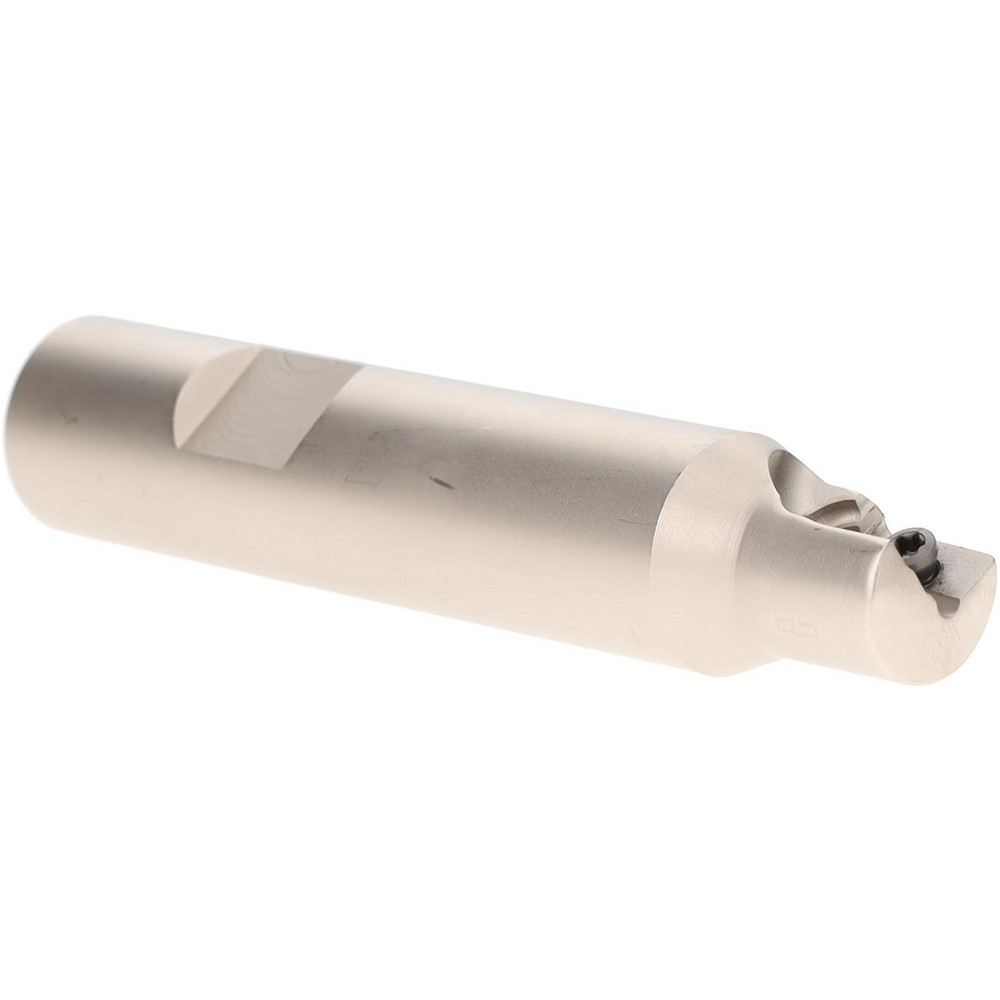

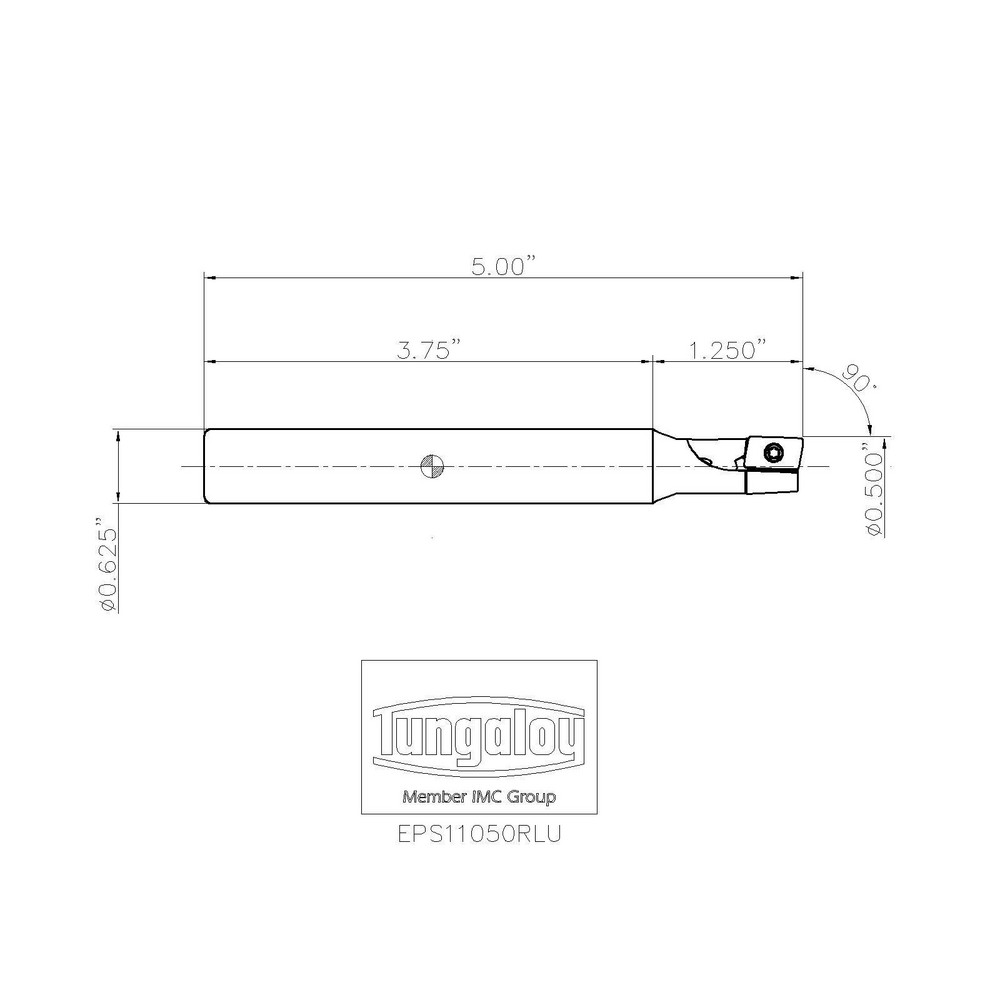

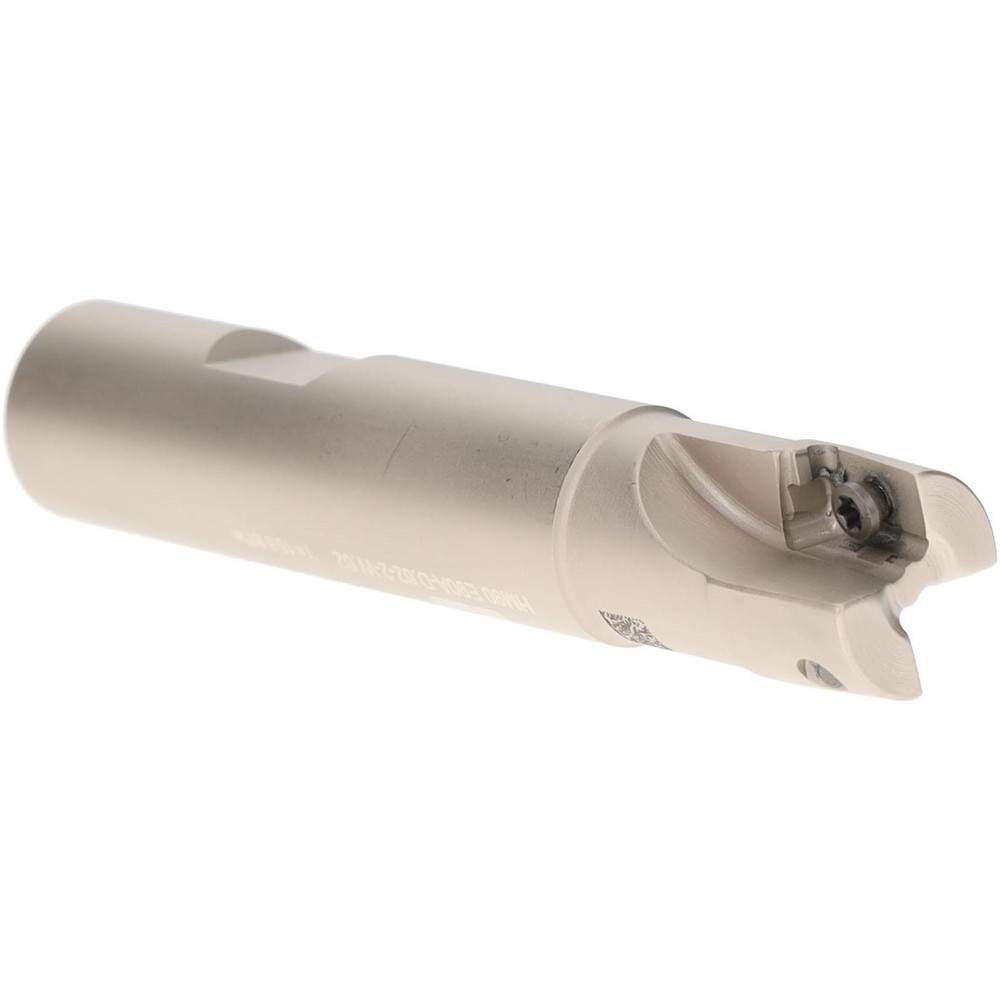

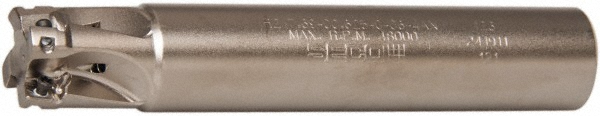

Uses (1) AS. 113.. Insert, Through Coolant, 5" OAL
| Cutting Diameter | 1/2 |
|---|---|
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Maximum Depth of Cut (Decimal Inch) | 0.4170 |
| Cutter Style | EPS11 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Series | TungRec |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.7500 |
| Head Length (Decimal Inch) | 1.25 |
| Tool Application | Milling |
| Standards | ISO |
| Insert Compatibility | AS. 113.. |
| UNSPSC Code | 27112803 |
| Usable Length (Decimal Inch) | 5.0000 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 42317743 |
