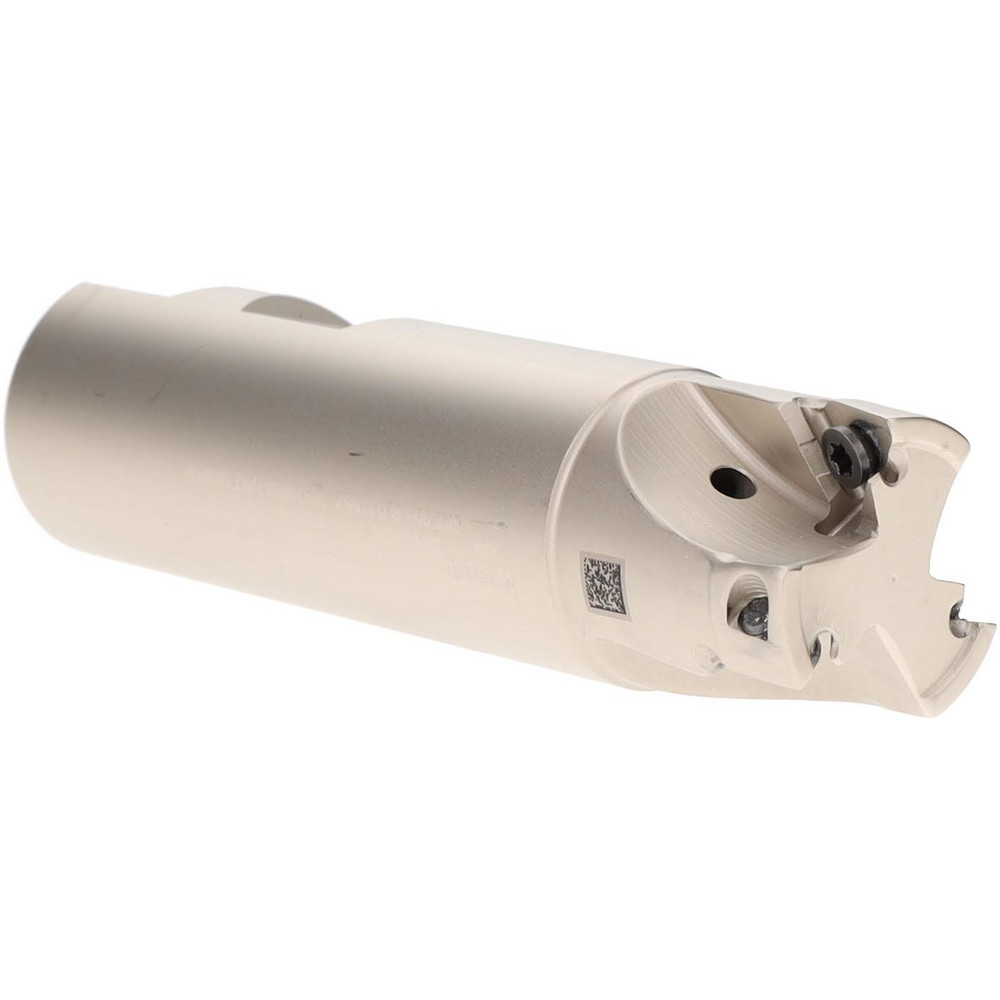

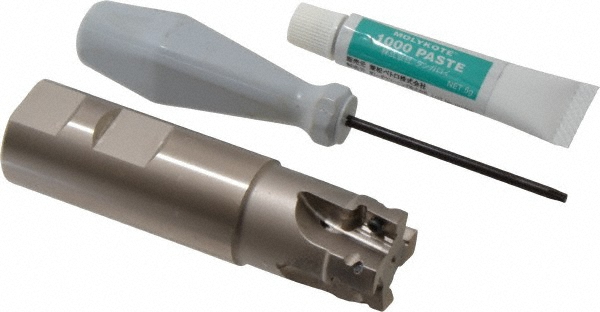

Uses (4) ASMT 11T3.. Inserts, 3.74" OAL

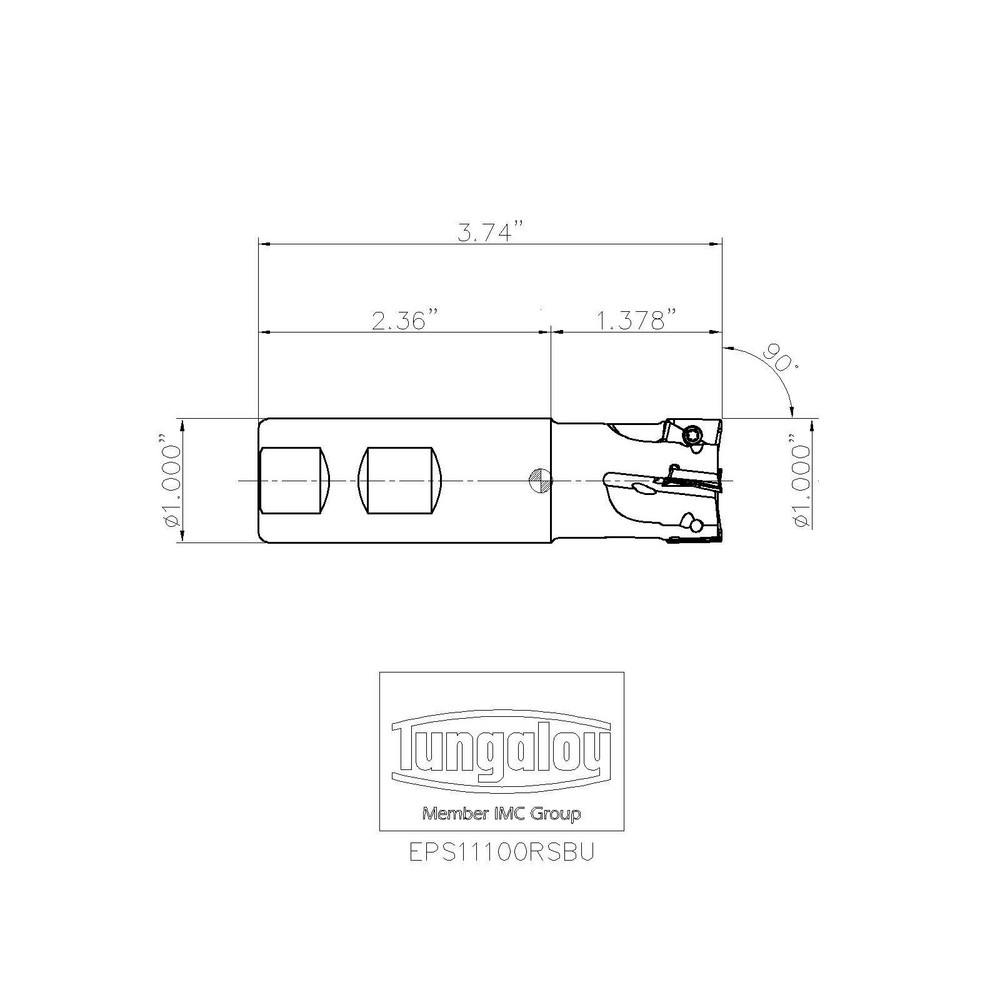

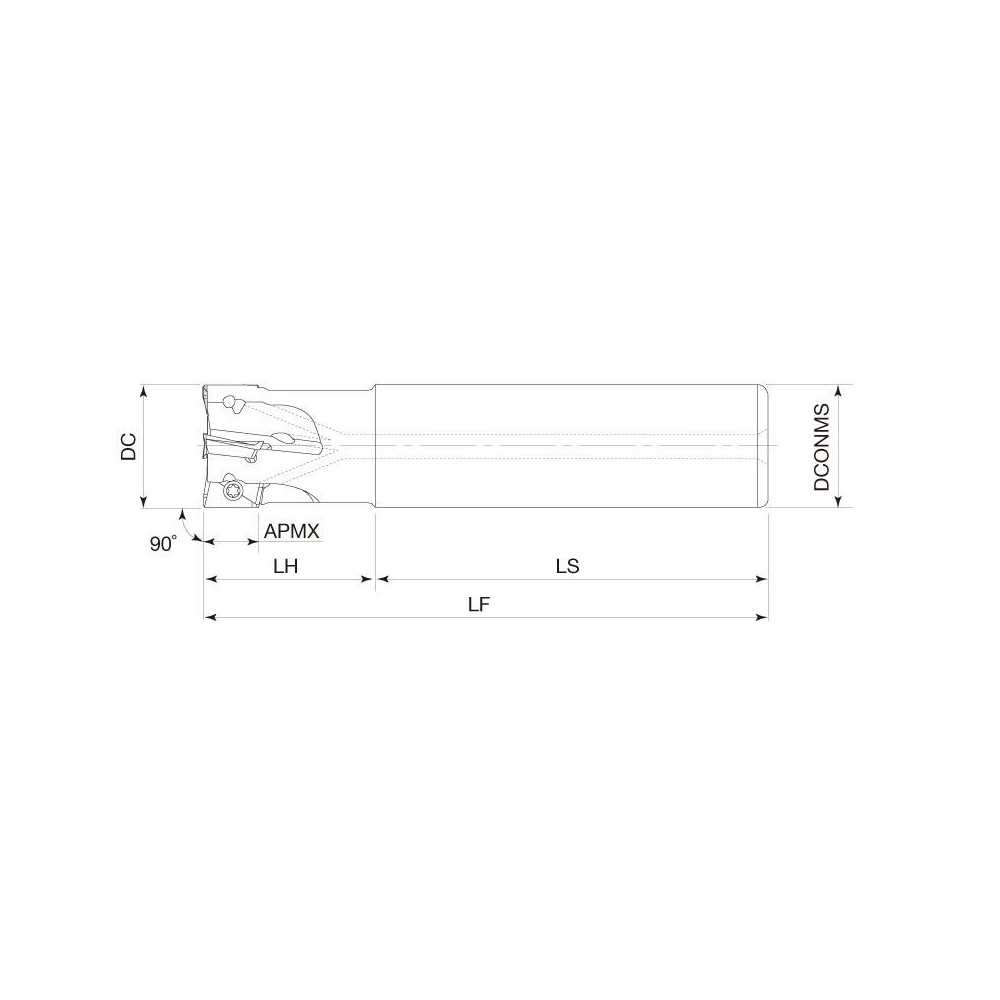

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.7400 |
| Maximum Depth of Cut (Decimal Inch) | 0.4250 |
| Cutter Style | EPS |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3600 |
| Head Length (Decimal Inch) | 1.38 |
| Tool Application | Milling |
| Standards | ISO |

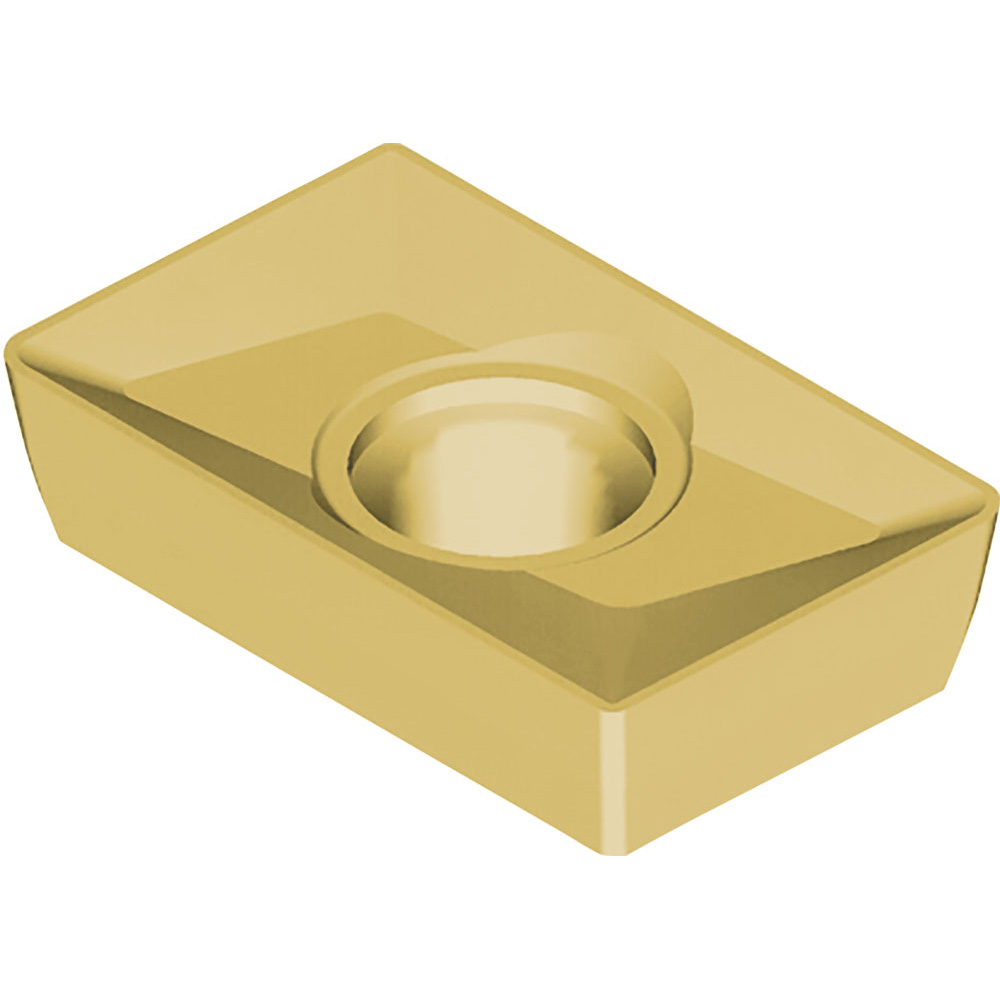

| Insert Compatibility | ASMT 11T3.. |
| UNSPSC Code | 27112803 |
| ISO Number | EPS11100RSBU |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 3.7400 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Country of Origin | Japan |
| MSC Number | MSC# 01682319 |
