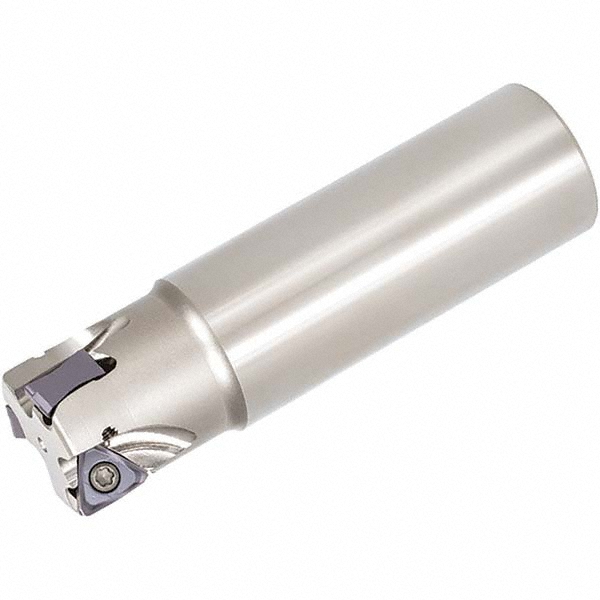

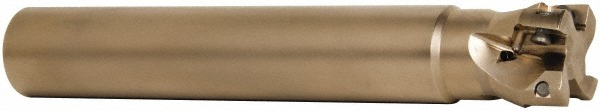

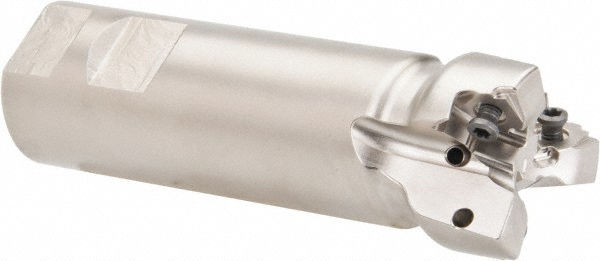

Uses (4) TN.U 12.. Inserts, 4-1/2" OAL

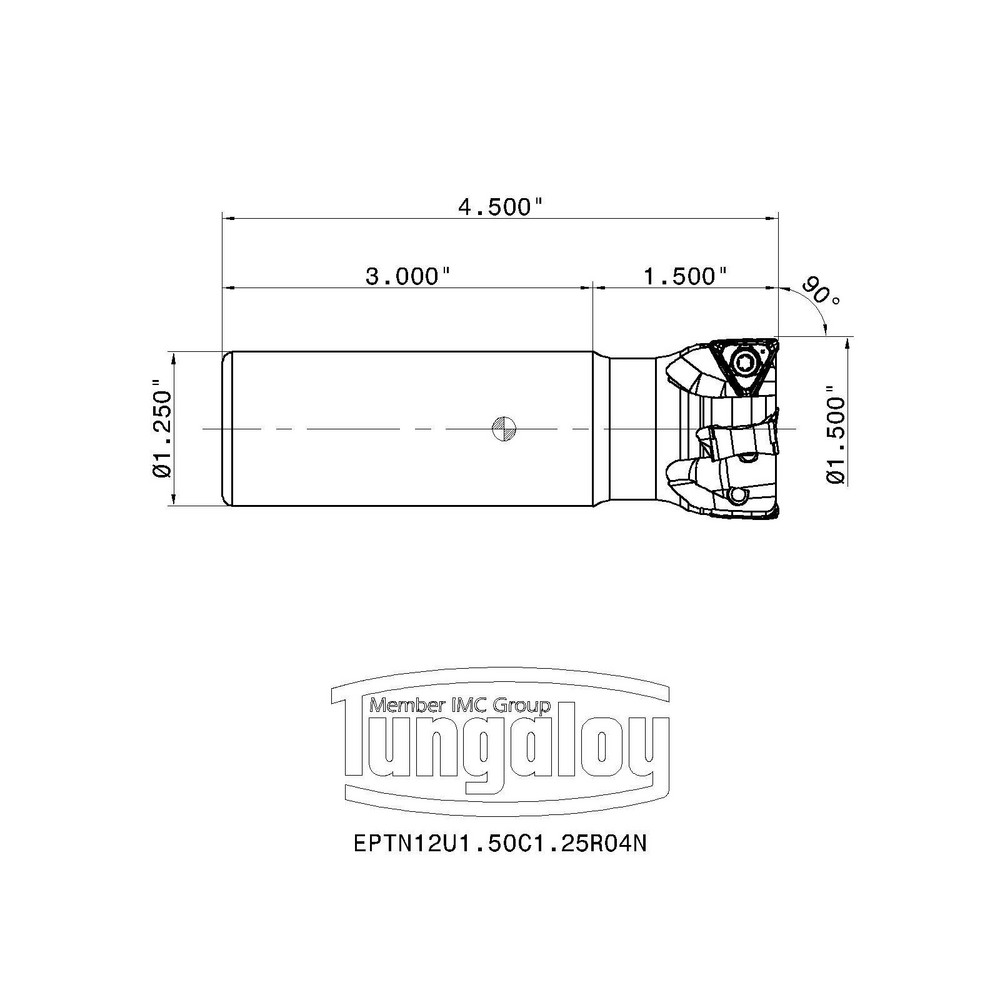

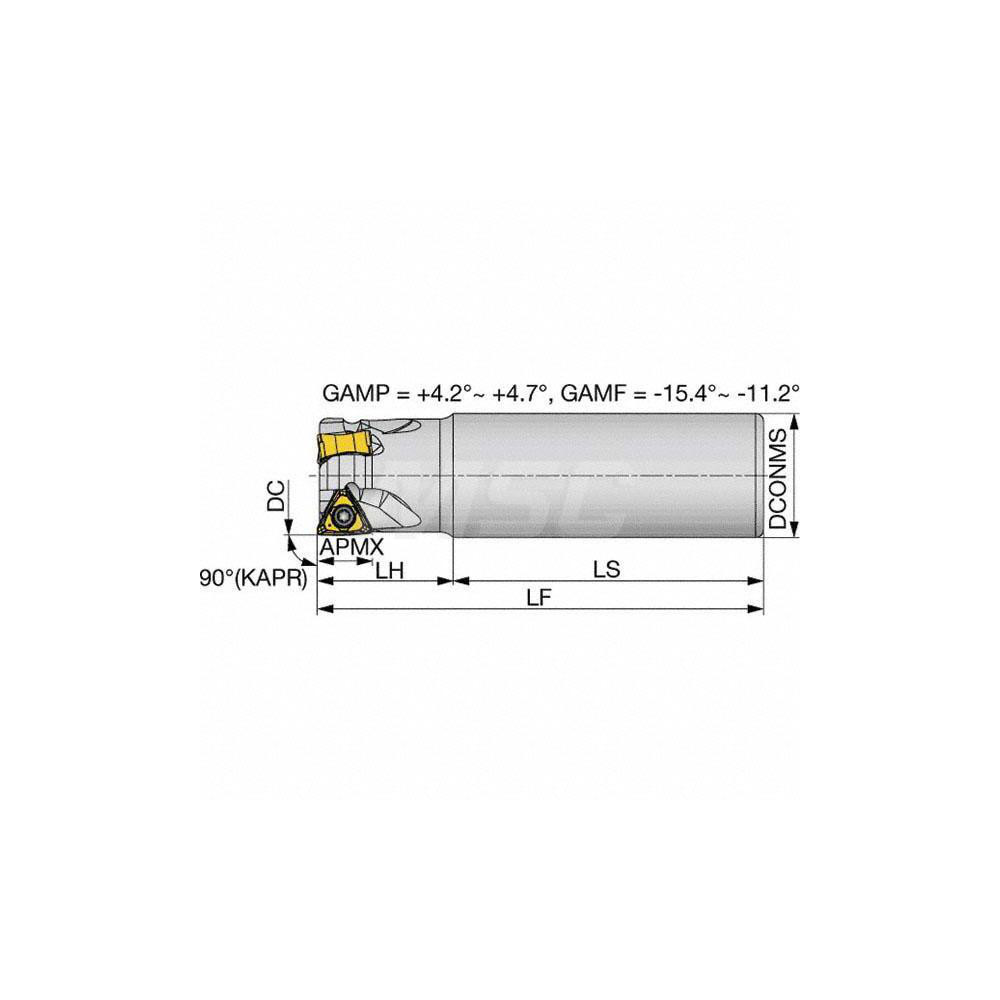

| Cutting Diameter | 1-1/2 |
|---|---|
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Cutter Style | EPTN12 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Series | Dof |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.0000 |
| Head Length (Decimal Inch) | 1.5 |
| Tool Application | Milling |
| Standards | ISO |
| Insert Compatibility | TN.U 12.. |
| UNSPSC Code | 27112803 |
| Usable Length (Decimal Inch) | 4.5000 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Country of Origin | Japan |
| MSC Number | MSC# 35790724 |
