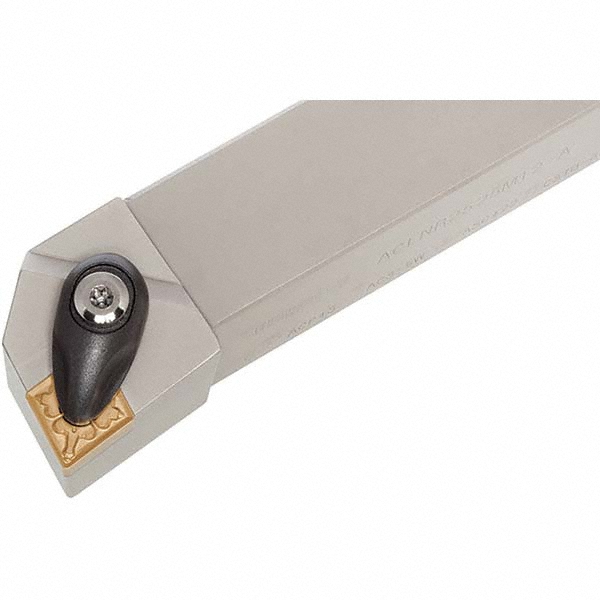

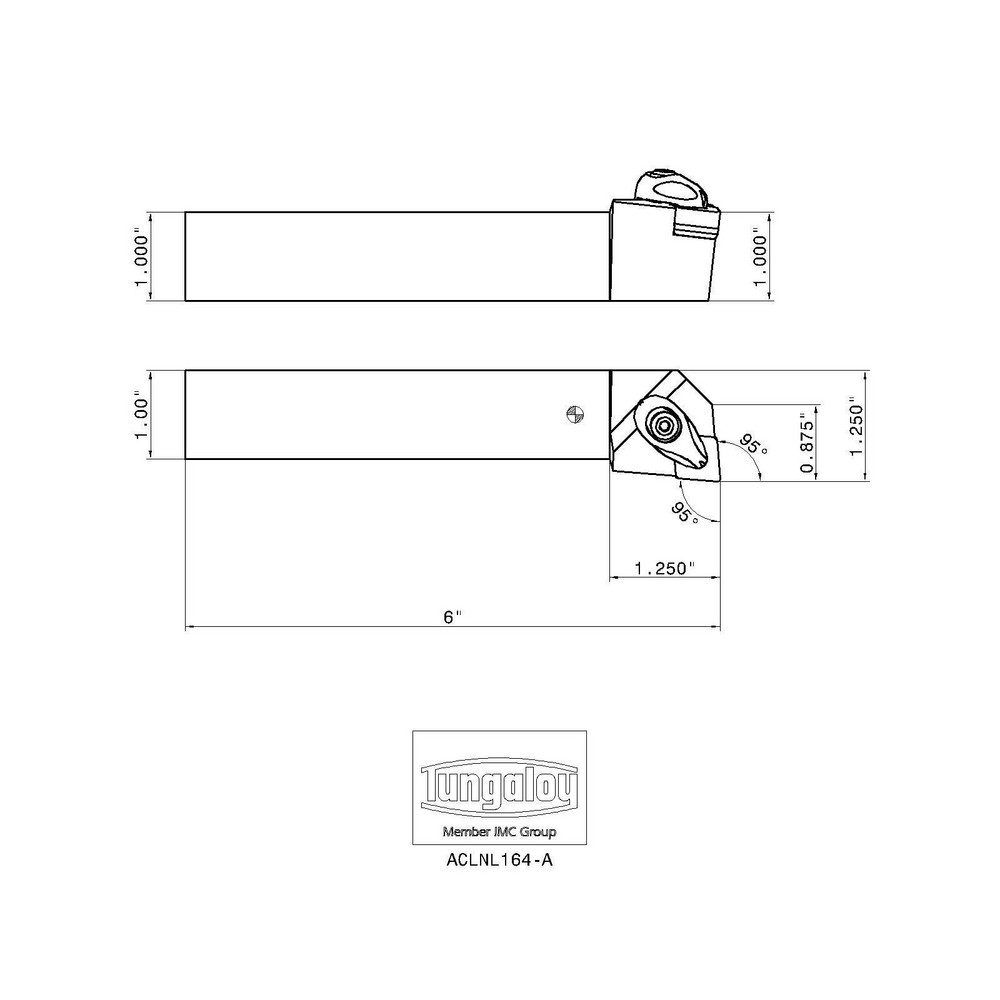

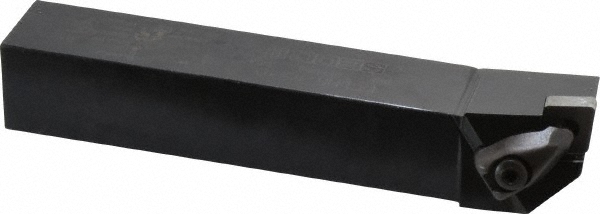

1 x 1" Shank, 6" OAL
| Toolholder Style | ACLN |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 95 |
| Insert Compatibility | CN..43. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width (mm) | 1.00 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Left Hand |

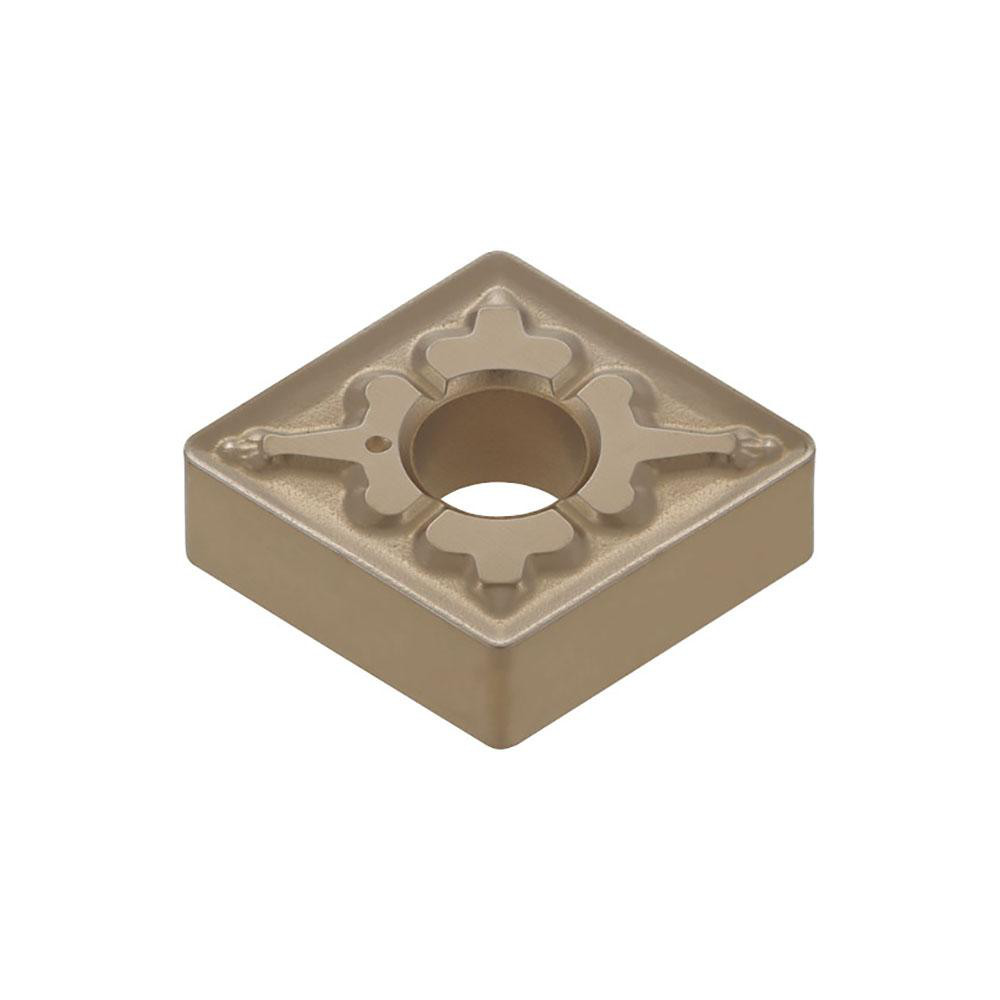

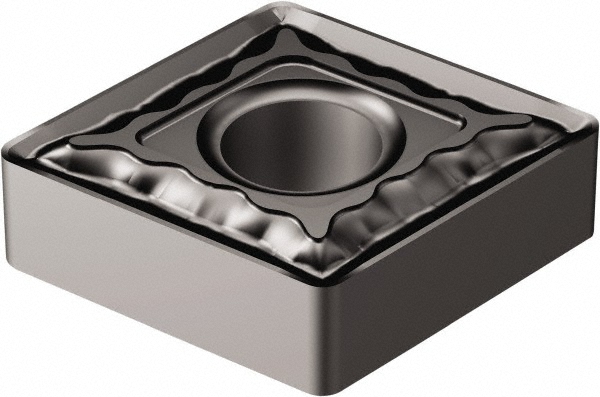

| Compatible Insert Size Code | CNMG432 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | ACLNR/L |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing |
| Head Length (Decimal Inch) | 1.2500 |
| Maximum Overhang (Inch) | 1.2500 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (Decimal Inch) | 0.5080 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| ISO Number | ACLNL164-A |
| Complete Insert Compatibility | CN.. |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6853101 |
| Vibration Dampening | No |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 45616430 |
