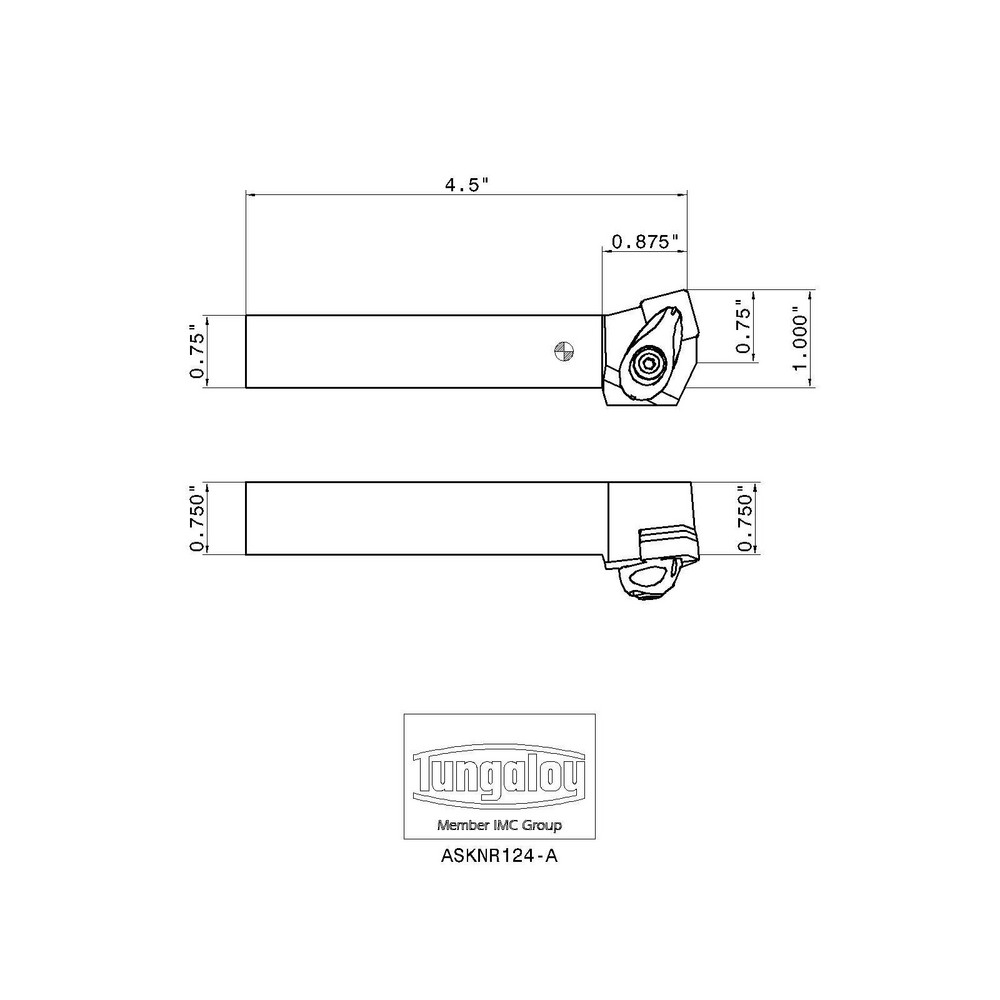

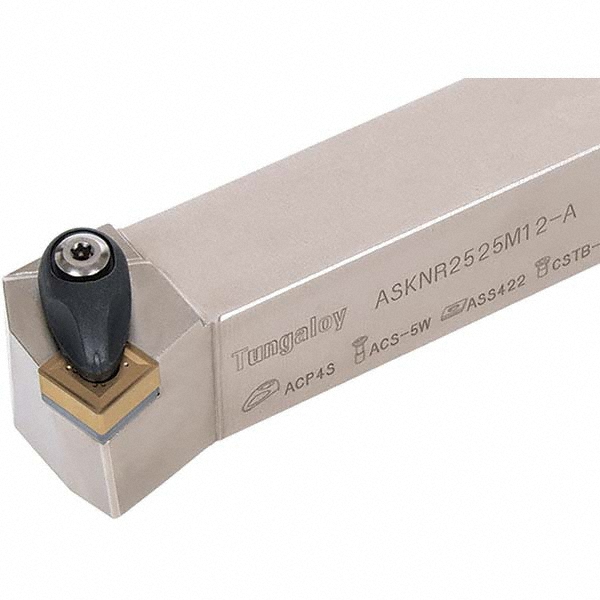

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | ASKN |
|---|---|
| Hand of Holder | Right Hand |

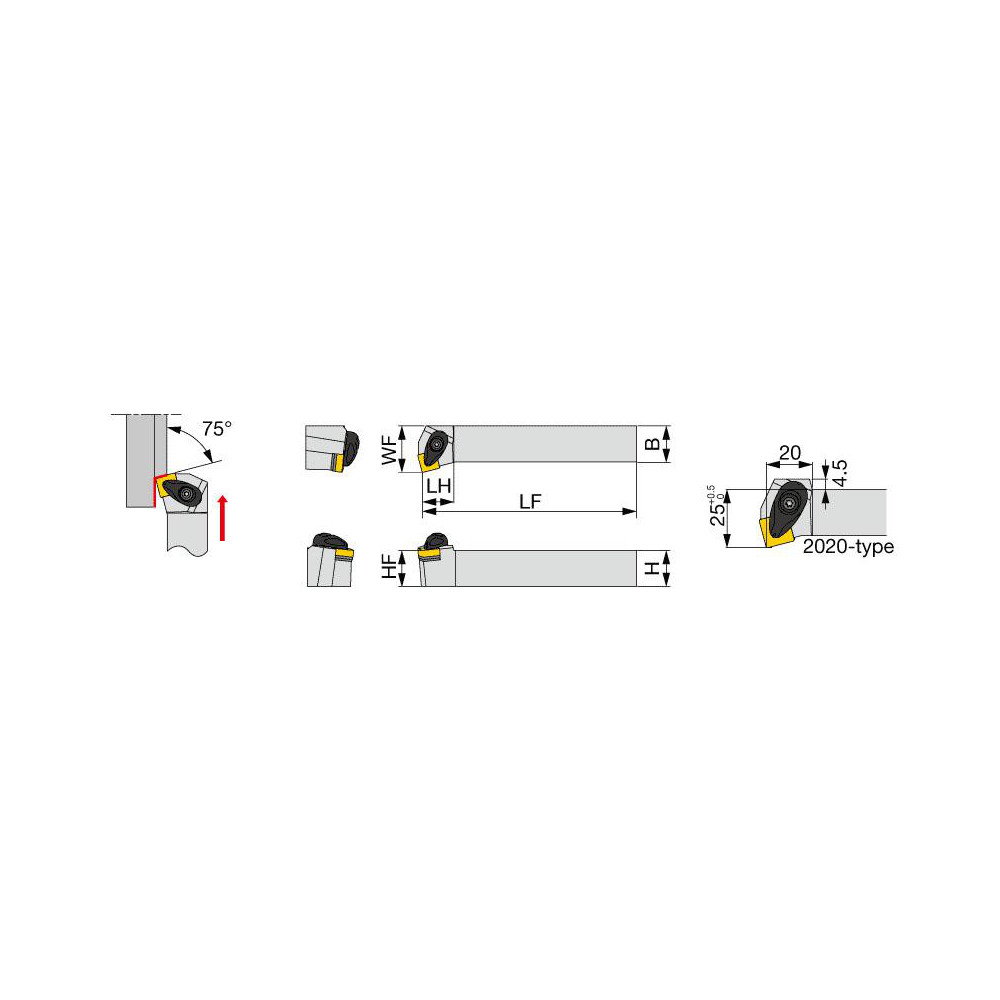

| Lead Angle | 75 |
| Insert Compatibility | SN..43. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | SNMG432 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | ASKNR/L |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Facing |
| Head Length (Decimal Inch) | 0.8750 |
| Maximum Overhang (Inch) | 0.8750 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (Inch) | 1/2 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| ISO Number | ASKNR124-A |
| Complete Insert Compatibility | SN.. |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6864836 |
| Vibration Dampening | No |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Country of Origin | Japan |
| MSC Number | MSC# 47652482 |
