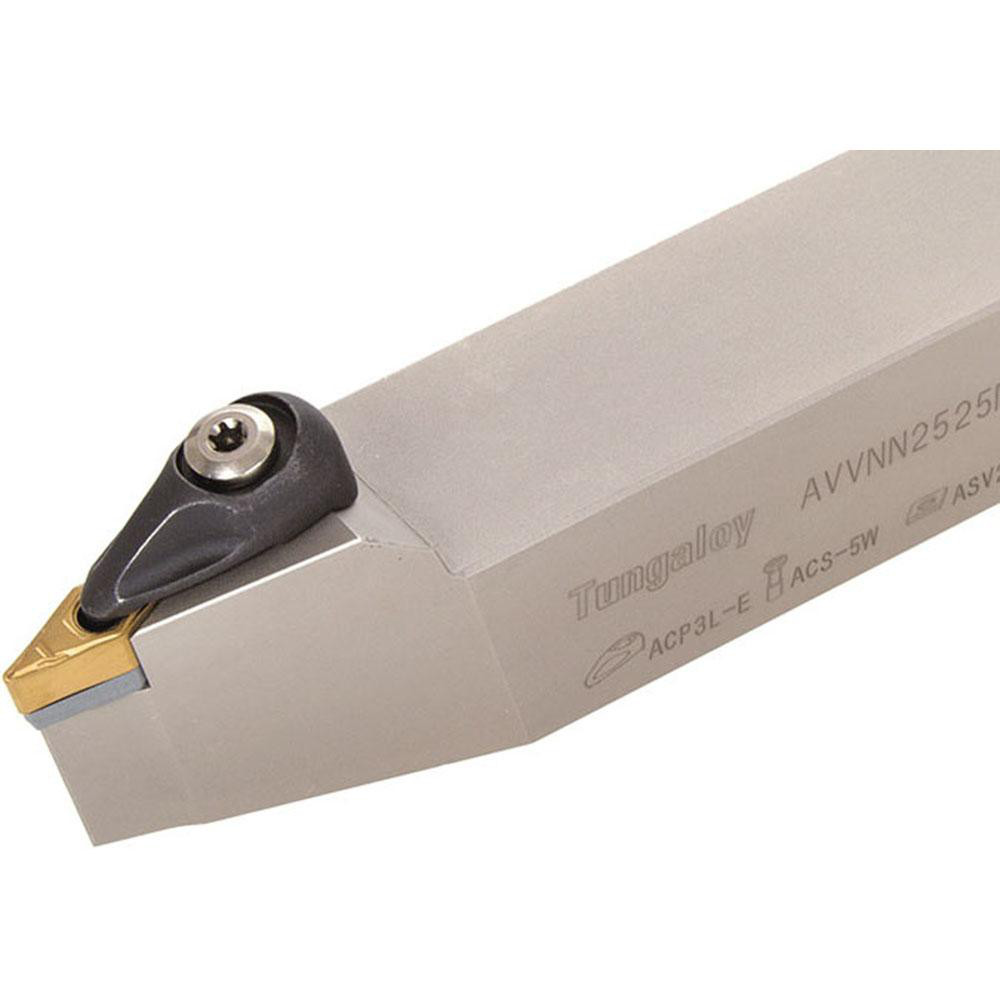

25.00 x 25.00 mm Shank, 150.0000 mm OAL
| Toolholder Style | AVVN |
|---|---|
| Hand of Holder | Neutral |
| Lead Angle | 72.500 |
| Insert Compatibility | VN..2.33. |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Rake | Negative |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | VN..2.33. |
| Multi-use Tool | Yes |
| Series | AVVN |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 38.00 |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.2810 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 63661862 |
