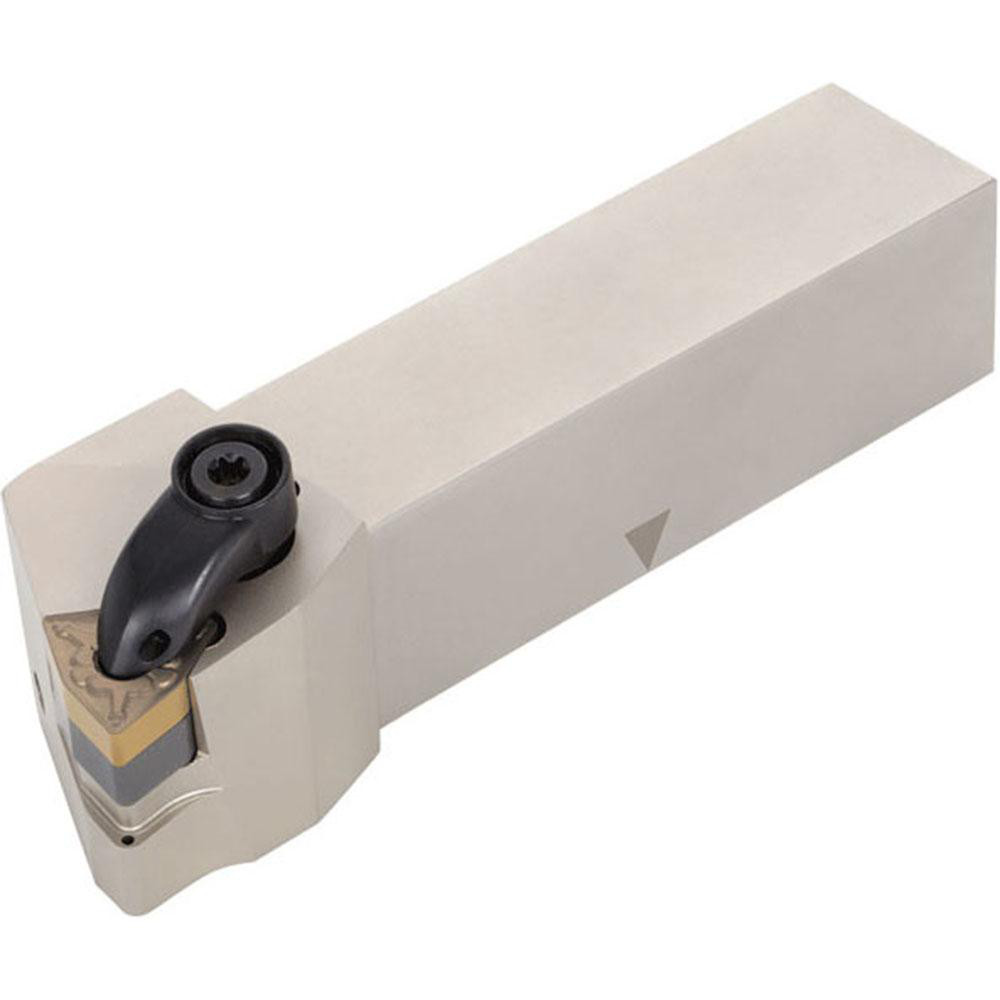

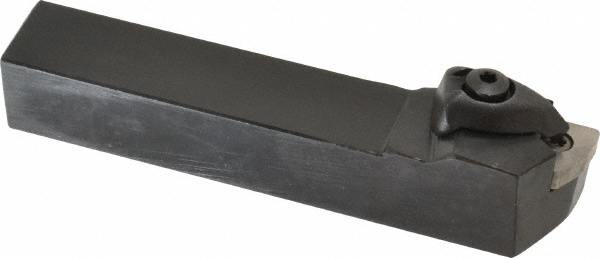

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | AWLN |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | WN..43. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | WN..43. |
| Rake Angle | 6 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | AWLN |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.4170 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Country of Origin | Israel |
| MSC Number | MSC# 61230678 |
