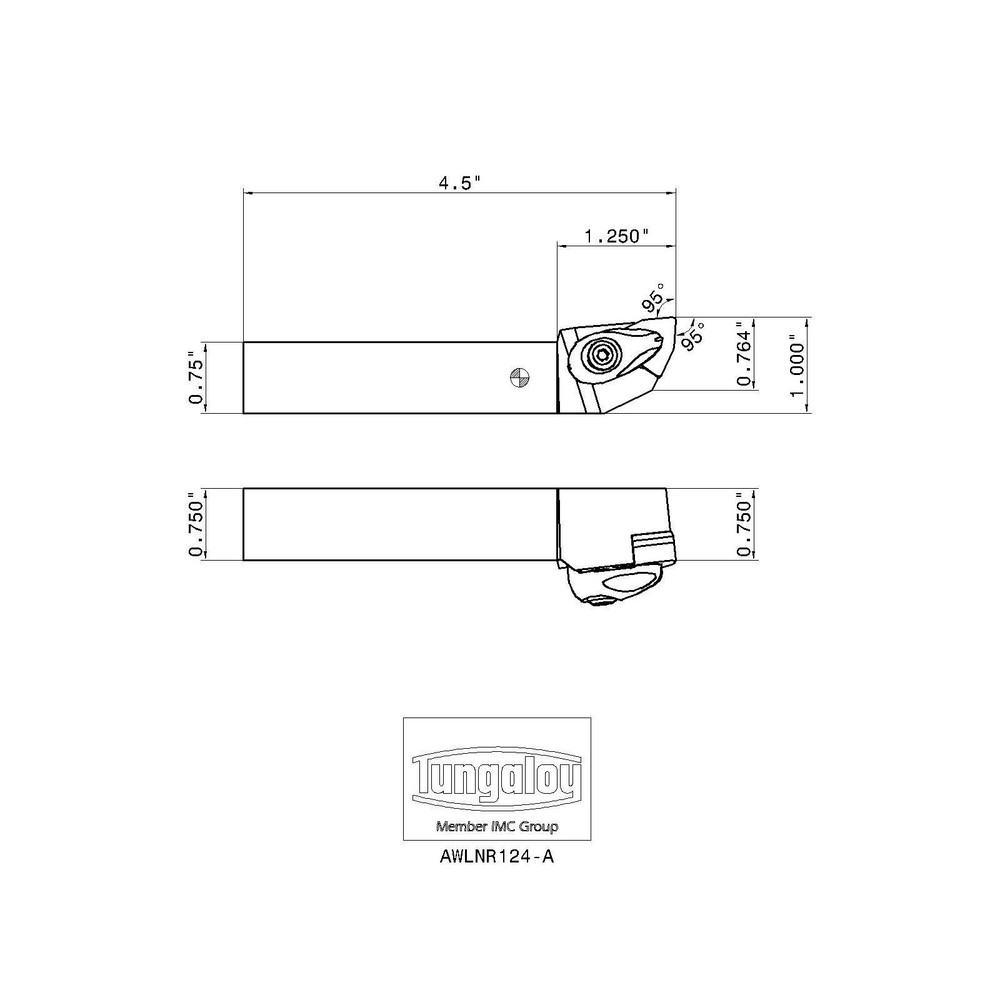

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | AWLN |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 95 |
| Insert Compatibility | WN..43. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | WNMG432 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | AWLNR/L |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.2500 |
| Maximum Overhang (Inch) | 1.2500 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| ISO Number | AWLNR124-A |
| Complete Insert Compatibility | 3QP-WNGA; 6QP-WNGA; WNM/GA; WNMG; WNGG-...; 6QS-WNGA; WNMG-... |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6853120 |
| Insert Thickness | 4.76 |
| Vibration Dampening | No |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Country of Origin | Japan |
| MSC Number | MSC# 62653589 |
