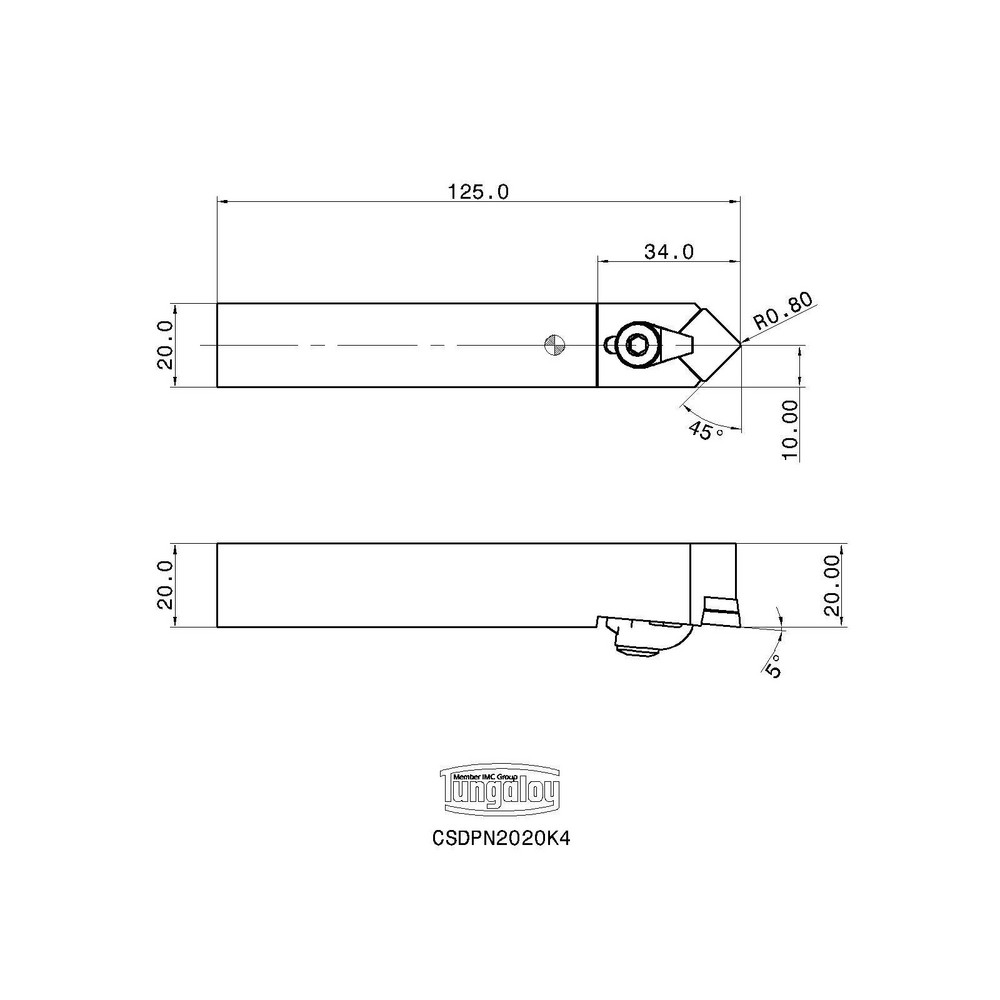

20.00 x 20.00 mm Shank, 125.00 mm OAL
| Toolholder Style | CSDP |
|---|---|
| Hand of Holder | Neutral |
| Lead Angle | 45 |
| Insert Compatibility | SP 1203 |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Coolant Through | No |
| Rake | Positive |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | SPMT120308 |
| Multi-use Tool | No |
| Series | CSDPN |
| Cutting Tool Application | Turning |
| Head Length (mm) | 34.00 |
| Maximum Overhang (Inch) | 1.3386 |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| ISO Number | CSDPN2020K4 |
| Complete Insert Compatibility | SP..1203.. |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6802487 |
| Insert Thickness | 3.18 |
| Insert Inscribed Circle (mm) | 12.70 |
| Vibration Dampening | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47646757 |
