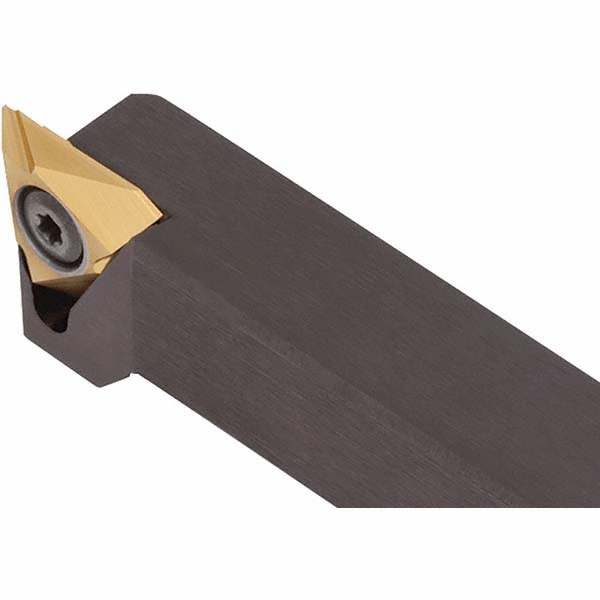

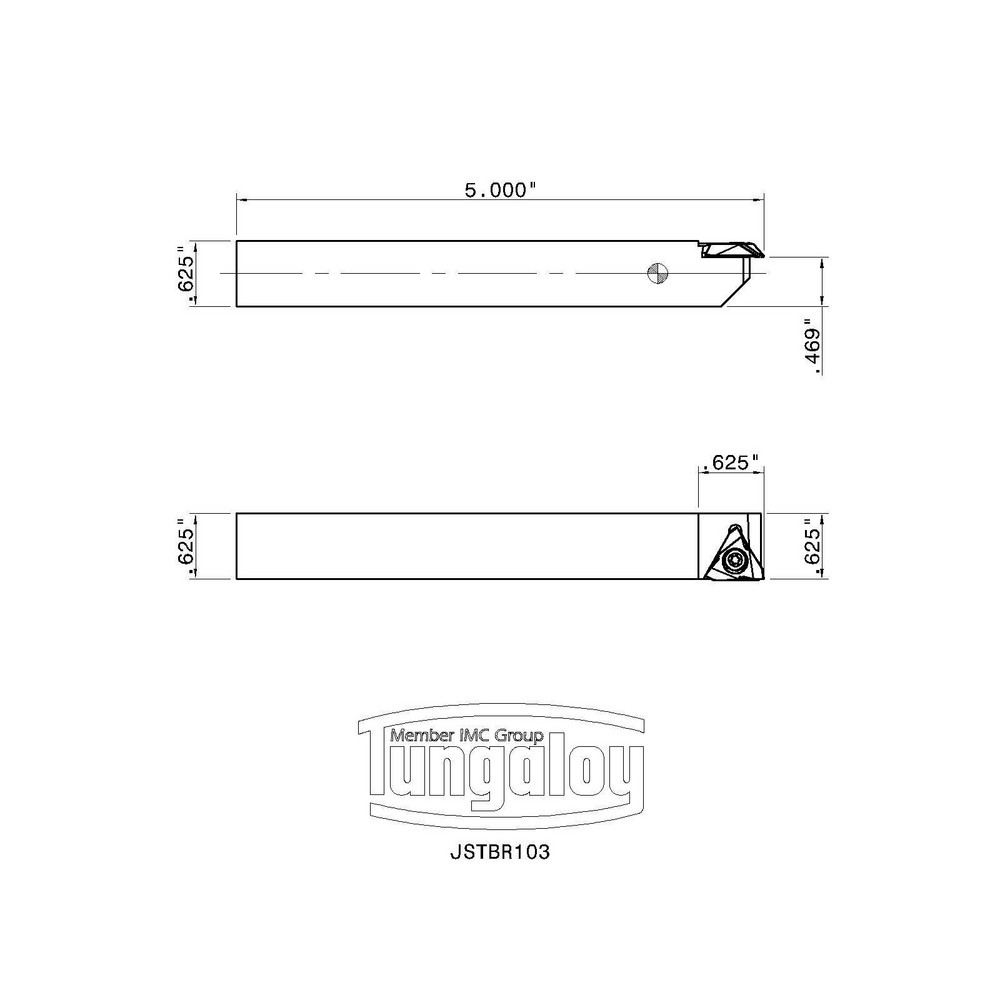

5/8 x 5/8" Shank, 5" OAL
| Toolholder Style | JSTB |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 90 |
| Insert Compatibility | JTB.3005 |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Coolant Through | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | JTBR3000F |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | JSTBR/L |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.6250 |
| Maximum Overhang (Inch) | 0.6250 |
| Back of Bar to Cutting Edge (Inch) | 5/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Inscribed Circle (Decimal Inch) | 0.3720 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| ISO Number | JSTBR103 |
| Complete Insert Compatibility | JTBR/L |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6708796 |
| Insert Thickness | 3.18 |
| Vibration Dampening | No |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Country of Origin | Japan |
| MSC Number | MSC# 47662036 |
