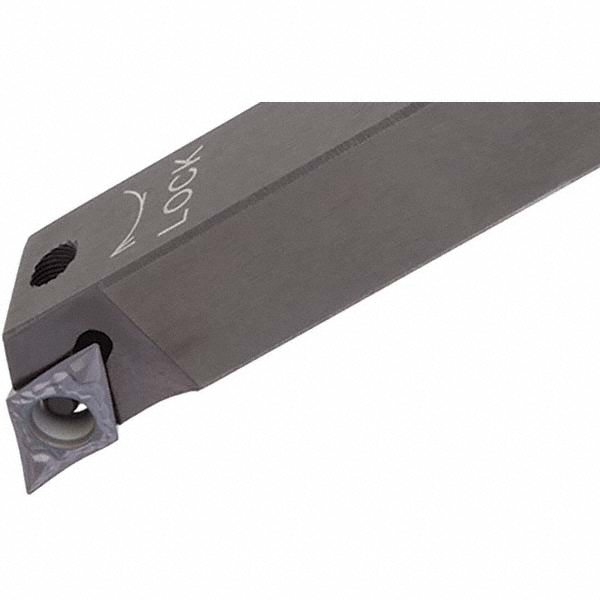

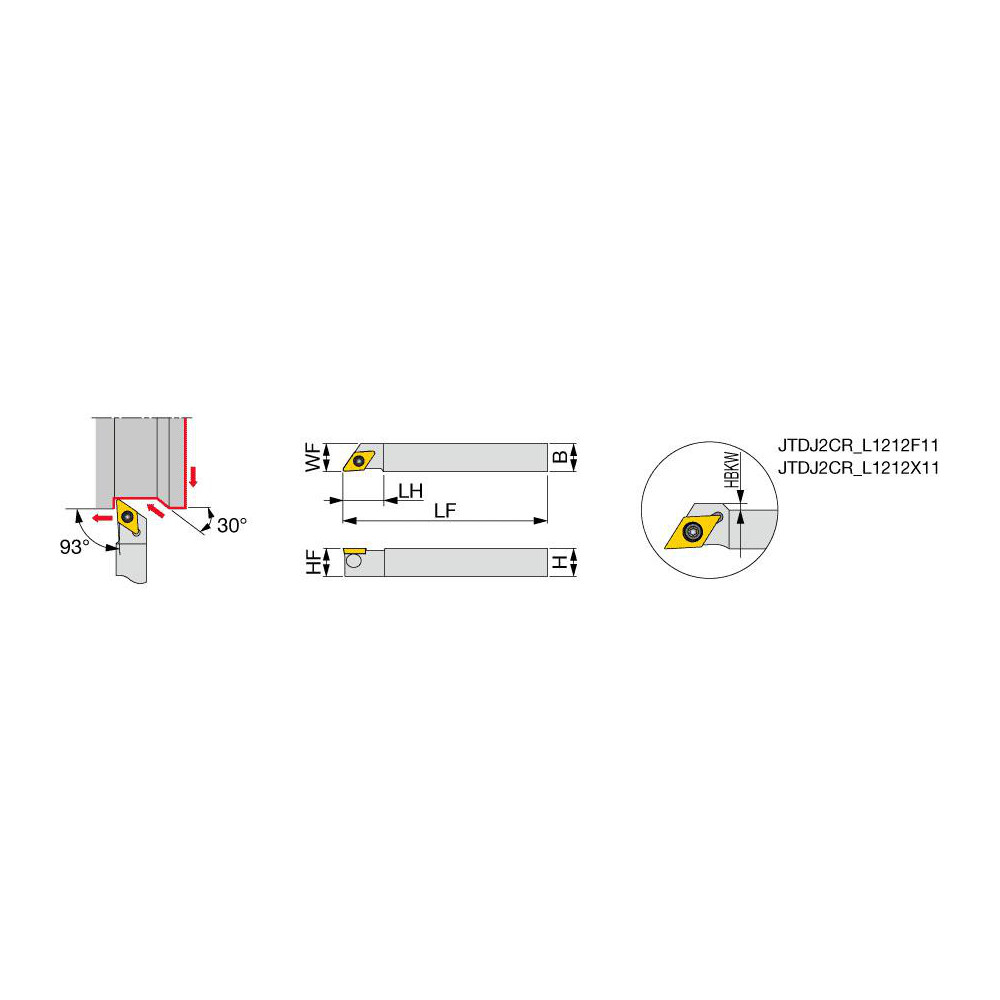

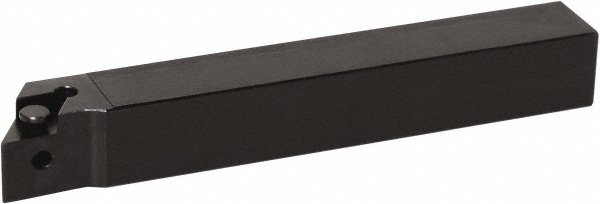

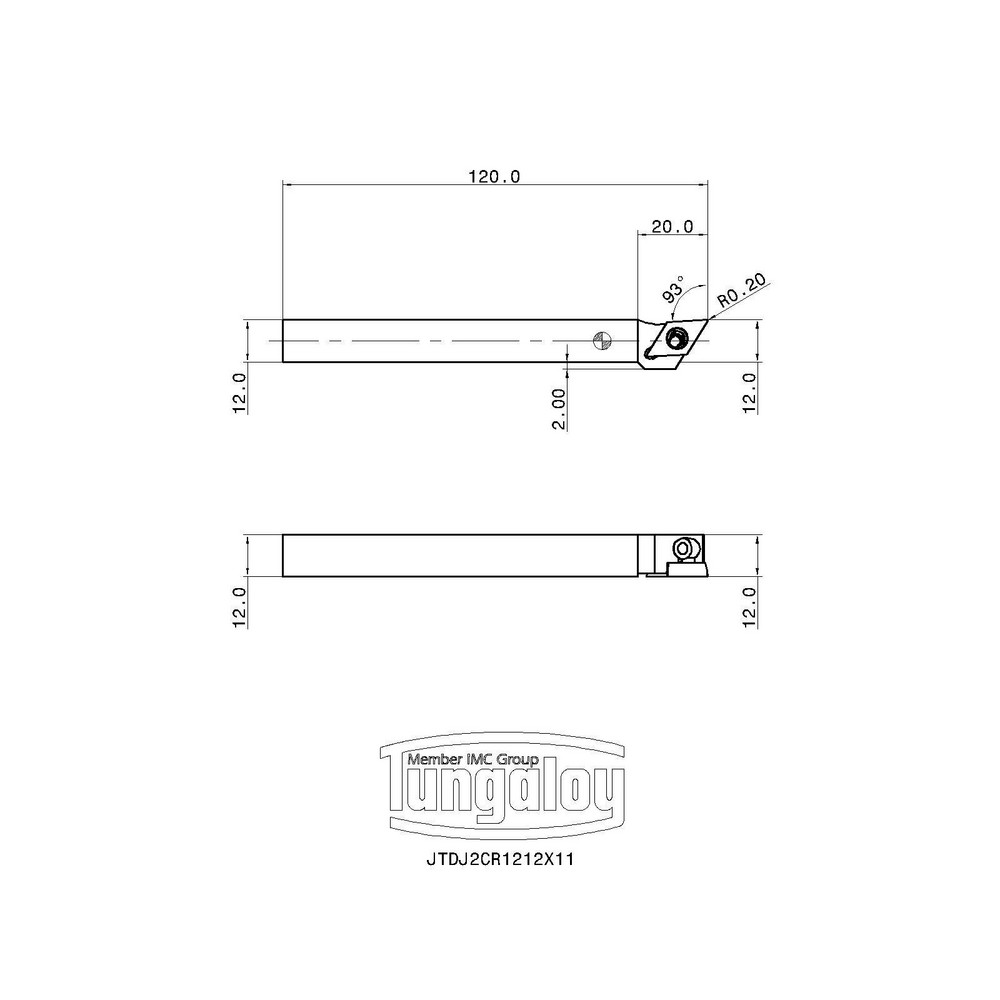

12.00 x 12.00 mm Shank, 120.00 mm OAL
| Toolholder Style | JTDJ |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 93 |
| Insert Compatibility | DC..11T3 |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Coolant Through | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | DCGT11T302 |
| Multi-use Tool | No |
| Series | JTDJ2CR/L |
| Cutting Tool Application | Turning |
| Head Length (mm) | 20.00 |
| Maximum Overhang (Inch) | 0.7874 |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.2285 |
| ISO Number | JTDJ2CR1212X11 |
| Complete Insert Compatibility | DCETR/L-...; DCGT; DCMT-..; Q-DCMW; DCGTR/L-...; DCGW-...; DCGT-..; DCM/GW; 2QP-DCM/GW |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6716208 |
| Insert Thickness | 3.97 |
| Insert Inscribed Circle (mm) | 9.53 |
| Vibration Dampening | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47662523 |
