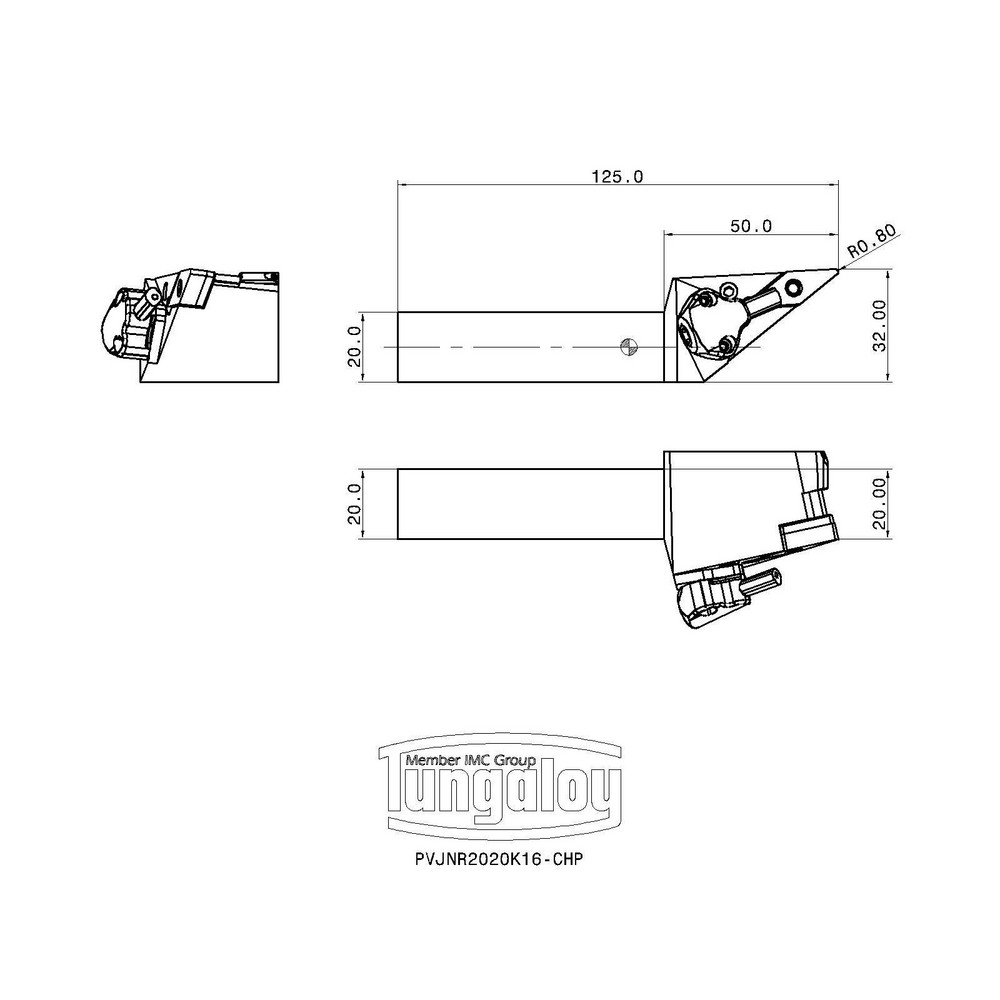

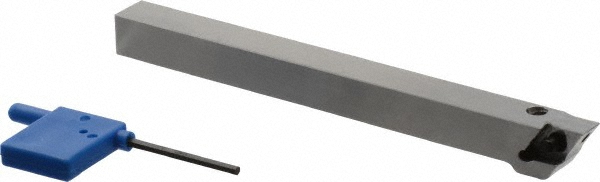

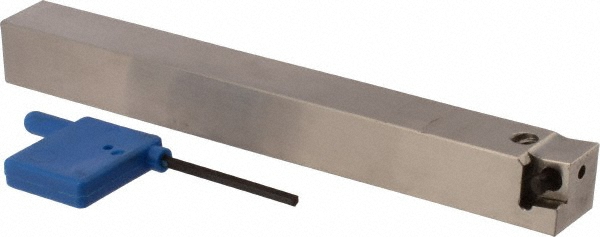

20.00 x 20.00 mm Shank, 125.00 mm OAL
| Toolholder Style | PVJN |
|---|---|
| Hand of Holder | Right Hand |

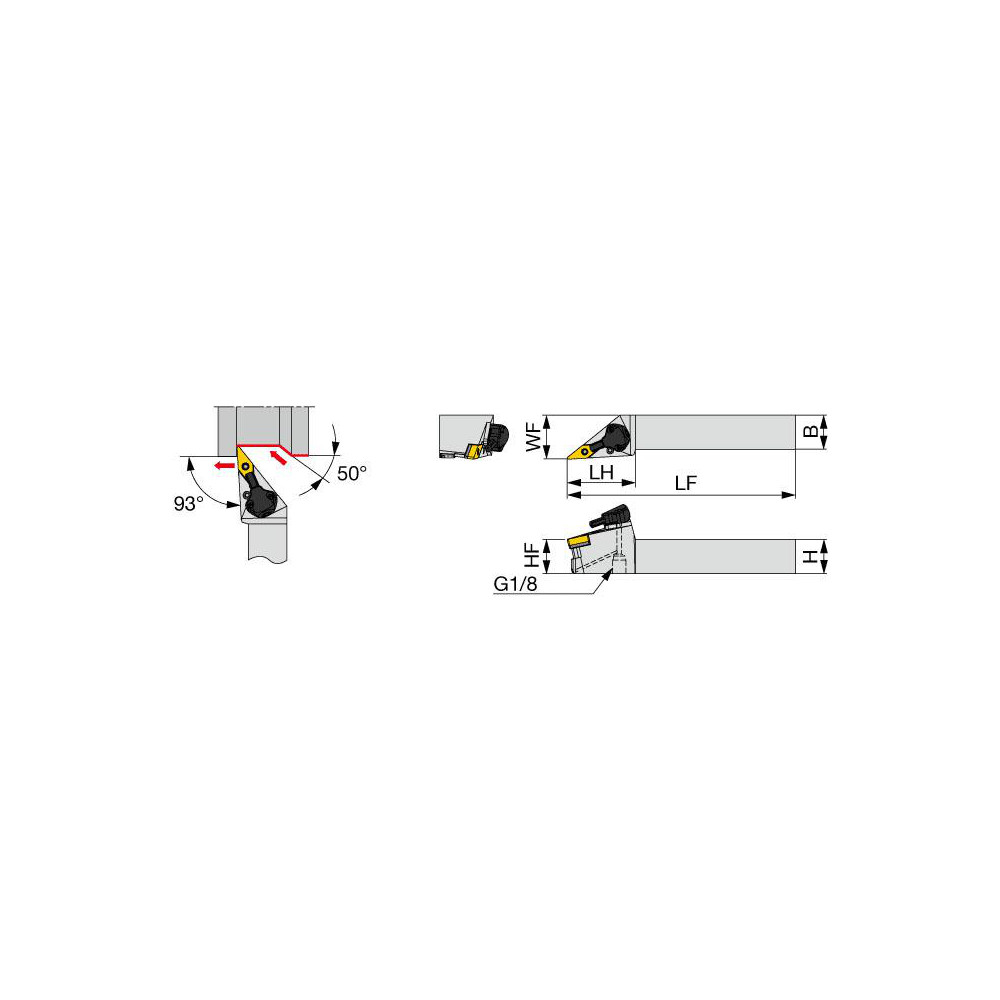

| Lead Angle | 93 |
| Insert Compatibility | VN..1604 |
| Insert Holding Method | Lever |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Coolant Through | Yes |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VNMG160408 |
| Multi-use Tool | No |

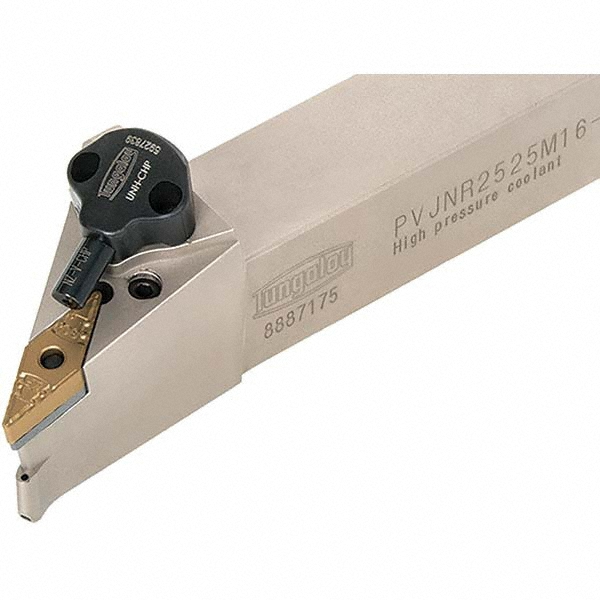

| Series | PVJNR/L-CHP |
| Cutting Tool Application | Turning |
| Head Length (mm) | 50.00 |
| Maximum Overhang (Inch) | 1.9685 |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Standards | ISO; ANSI |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.3270 |
| ISO Number | PVJNR2020K16-CHP |
| Complete Insert Compatibility | YNMG-...; 4QS-VNGA; 2QP-VNGM-...; 2QP-VNGA; 4QP-VNGA; VNGG-...; 4QS-VNGG-...; VNMG; VNM/GA; VNMM-...; VNMG-... |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | 6755222 |
| Insert Thickness | 4.76 |
| Insert Inscribed Circle (mm) | 9.53 |
| Vibration Dampening | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47667951 |
