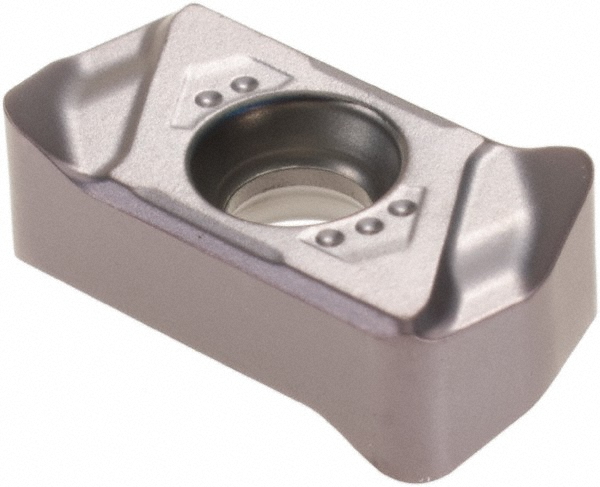

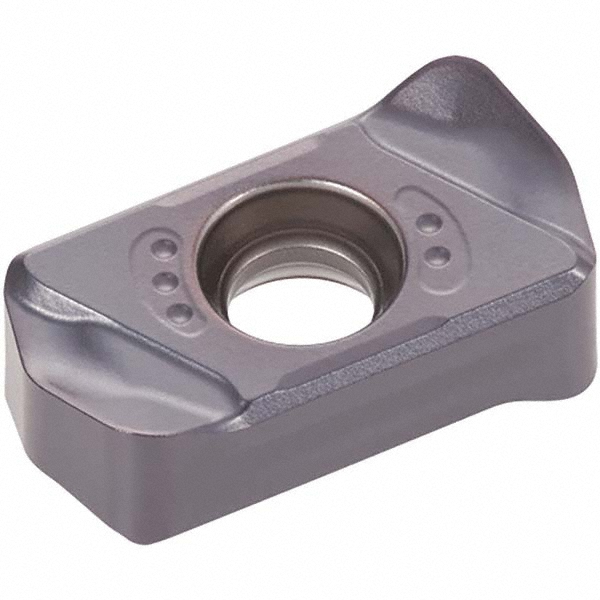

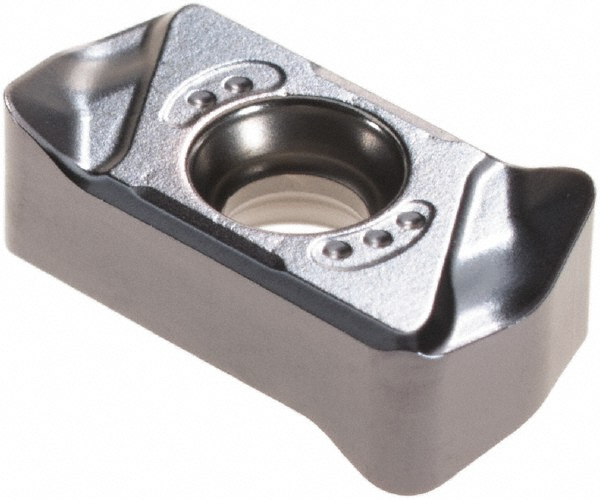

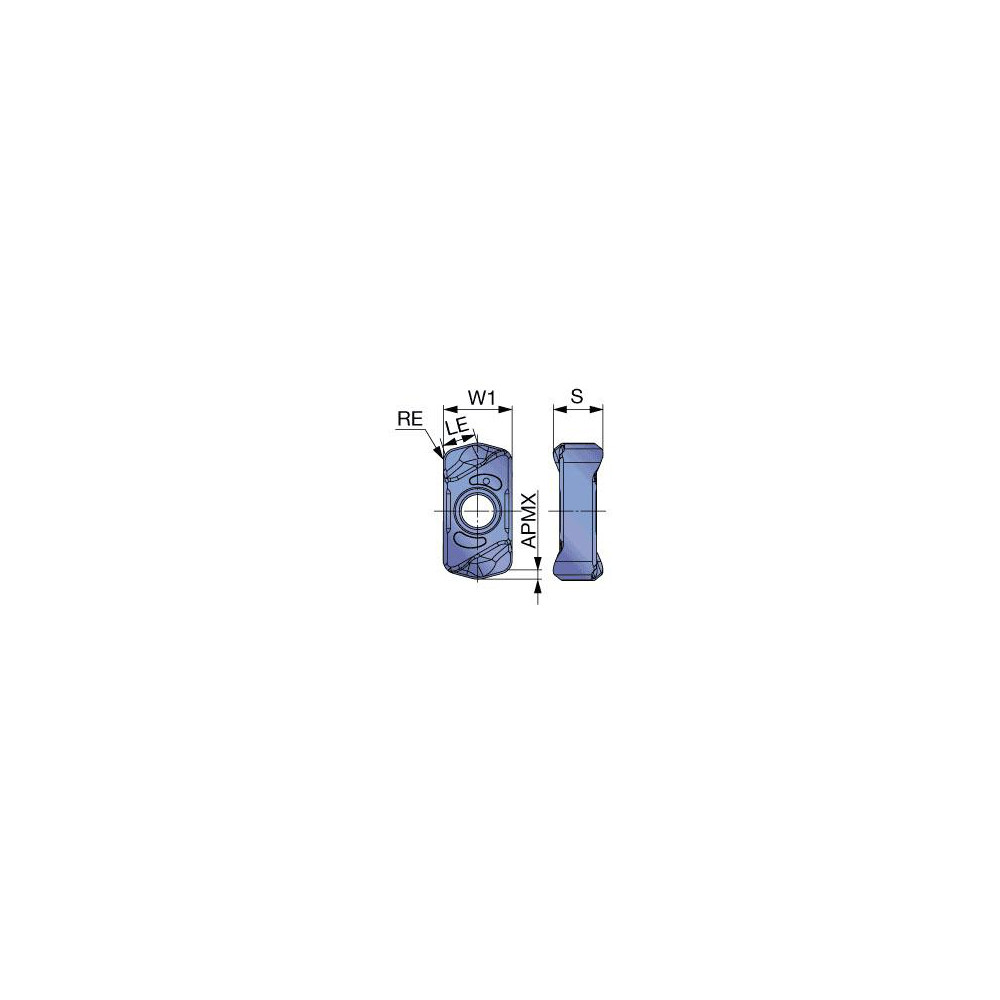

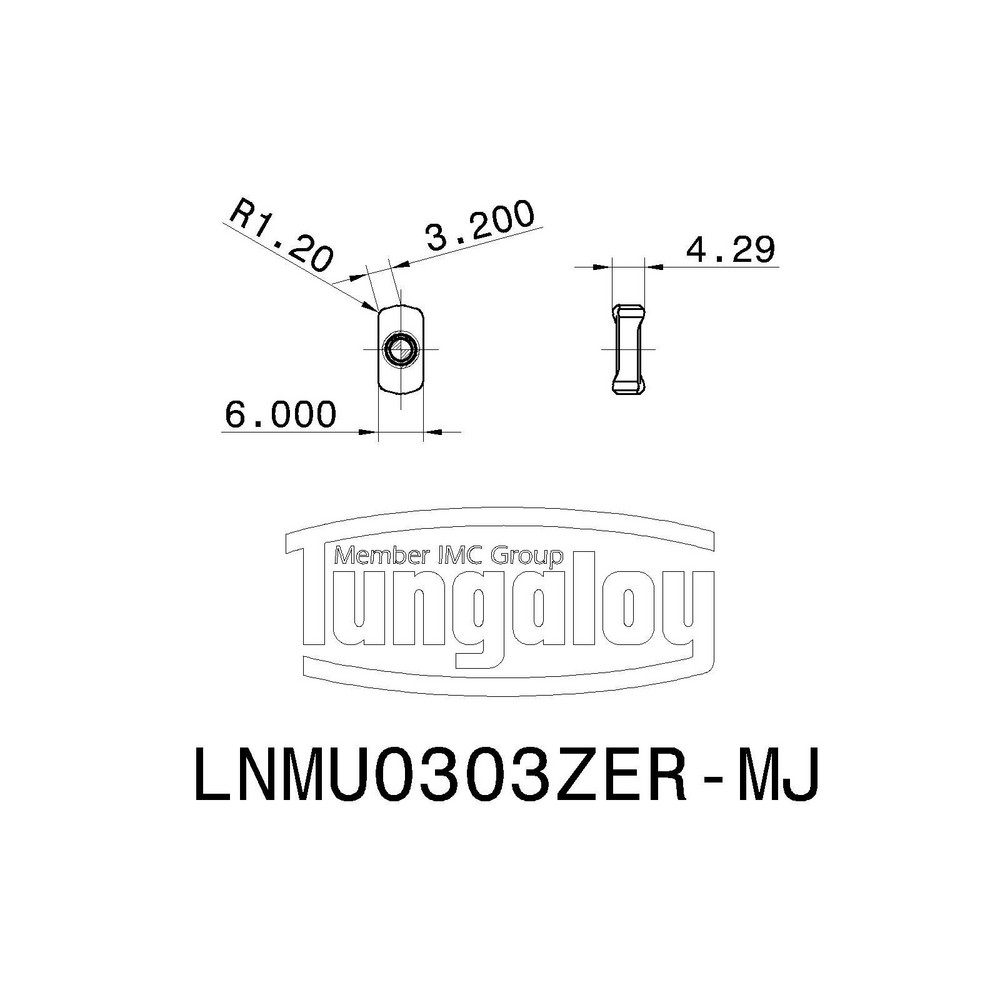

AlTiN Finish, 4.30 mm Thick, 6.00 mm Wide
| Insert Style | LNMU |
|---|---|
| Insert Size | 03 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | AH8015 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1690 |
| Thickness (mm) | 4.30 |
| Coating/Finish | AlTiN |
| Relief Angle | 0.00 |
| Insert Size Code | 0303 |
| Material Grade | S10; M10 |
| Inscribed Circle (Decimal Inch) | 0.2360 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (mm) | 1.00 |
| Series | LNMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | LNMU0303ZER-MJ AH8015 |
| Iso Code | LNMU0303ZER-MJ AH8015 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LNMU0303ZER-MJ |
| Cutter Series Compatibility | TXN03; EXN03-N; EXN03; HXN03-M; EXN03-C; HXN03-M-C |
| Chip Breaker | MJ |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 3.20 |
| Width (Decimal Inch - 4 Decimals) | 0.2360 |
| Width (mm - 2 Decimals) | 6.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.1260 |
| Country of Origin | Japan |
| MSC Number | MSC# 41724048 |
