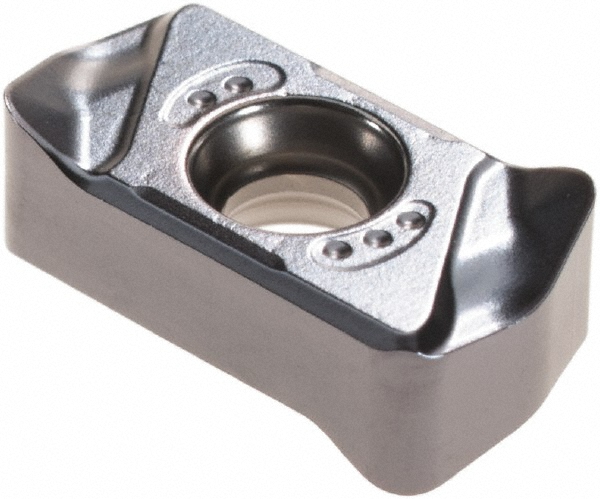

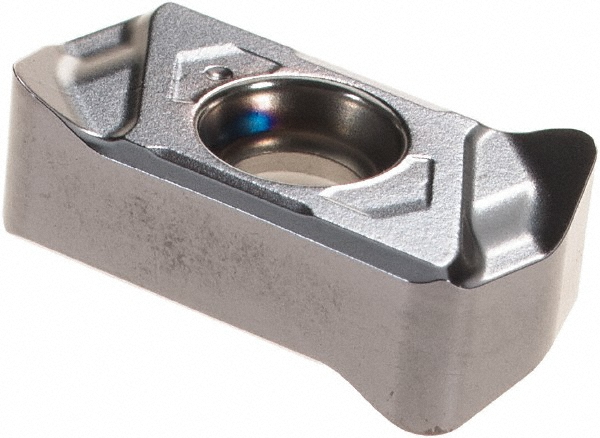

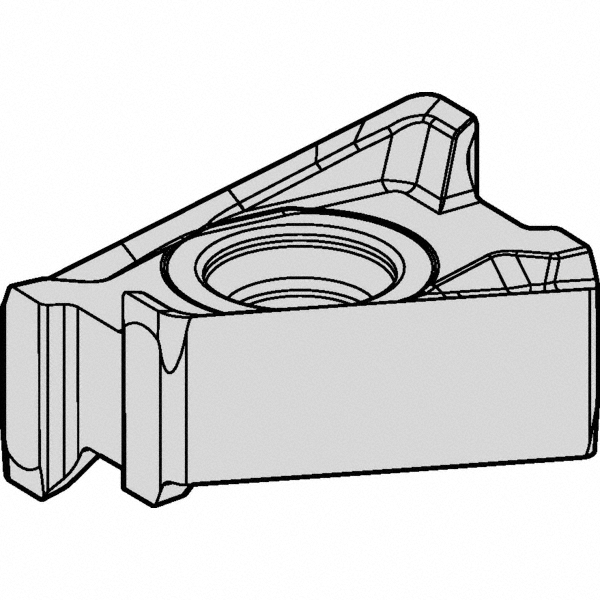

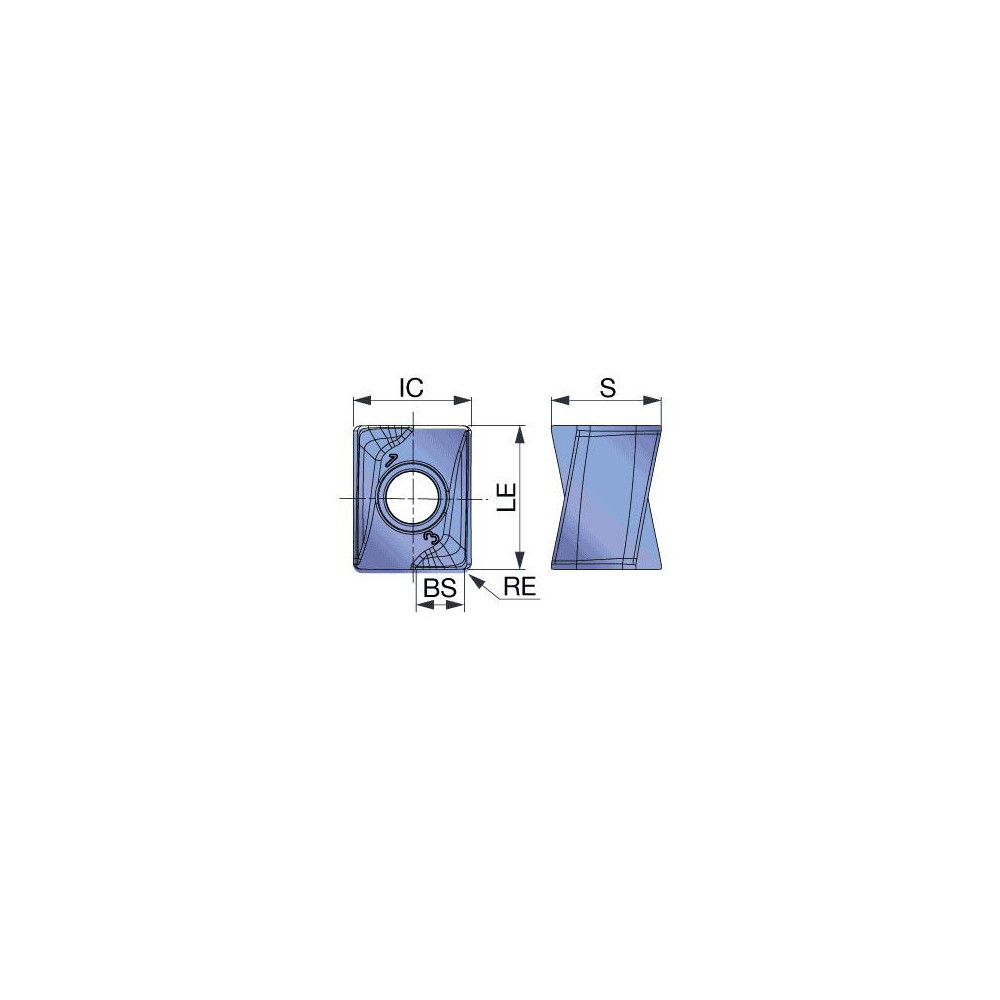

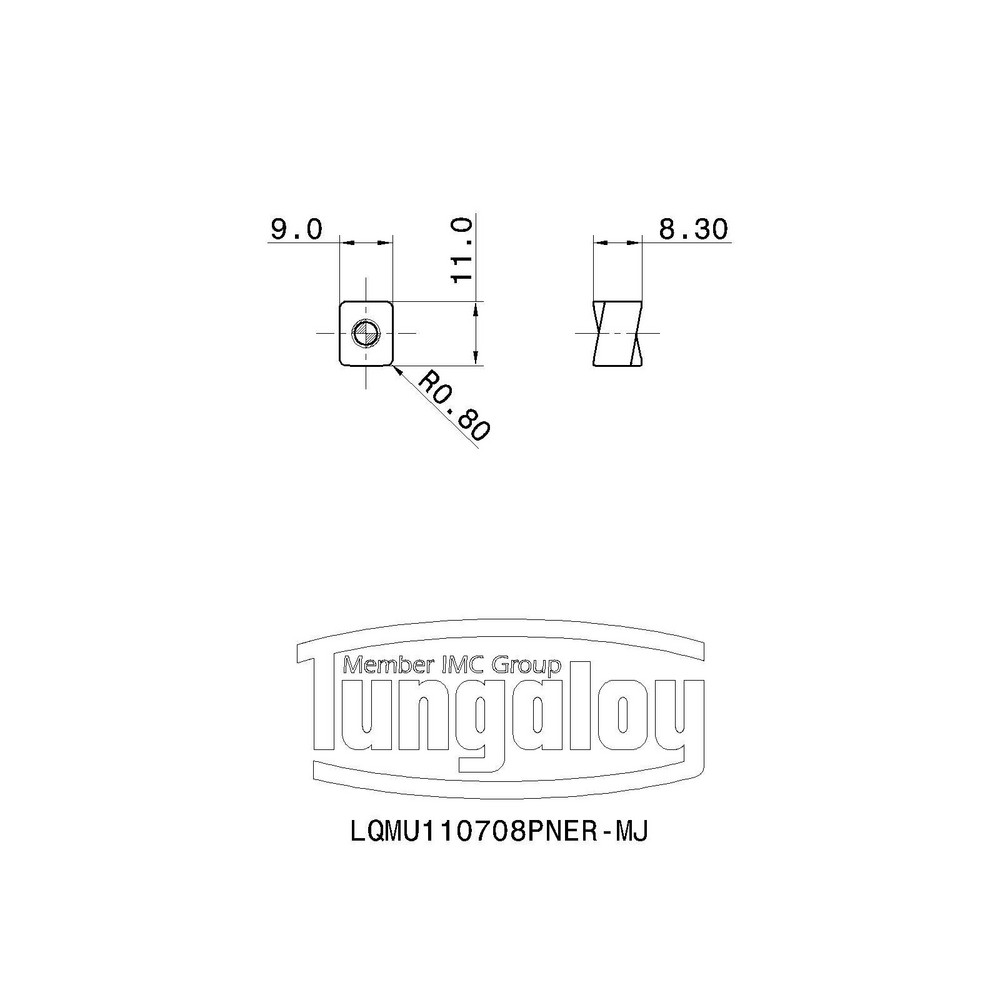

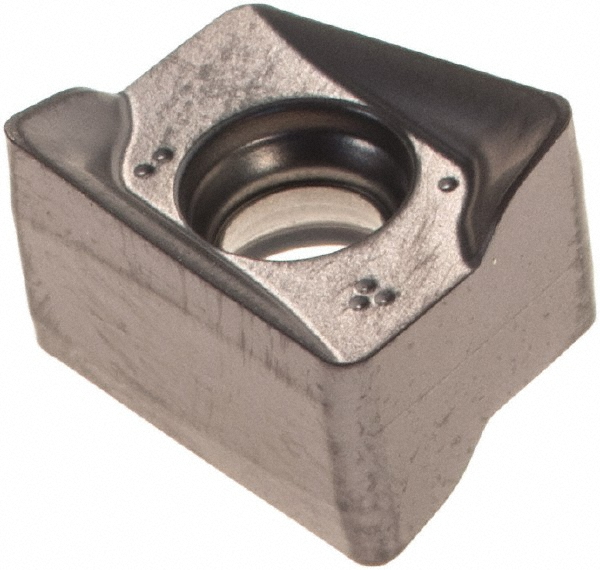

TiAlN Finish, 0.3270" Thick, 0.3540" Wide
| Insert Style | LQMU |
|---|---|
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | AH725 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3270 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 110708 |
| Material Grade | M15; P15; S15; K25 |
| Inscribed Circle (Decimal Inch) | 0.3540 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Maximum Depth of Cut (mm) | 9.00 |
| Series | LQMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | LQMU110708PNER-MJ AH725 |
| Iso Code | LQMU110708PNER-MJ AH725 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LQMU110708PNER-MJ |
| Cutter Series Compatibility | TPQ11; 18; EPQ11 |
| Chip Breaker | MJ |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3540 |
| Width (mm - 2 Decimals) | 9.00 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4330 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 76897081 |
