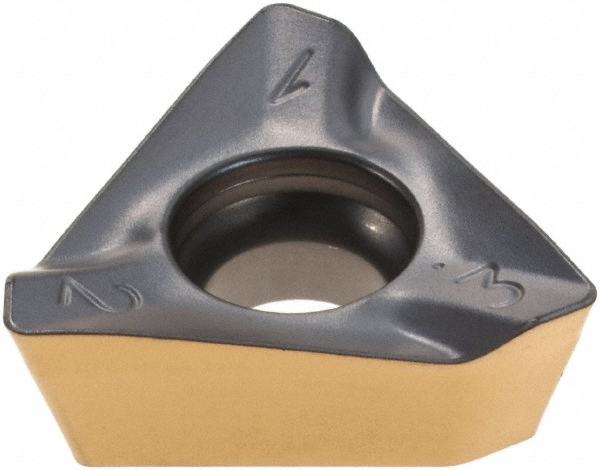

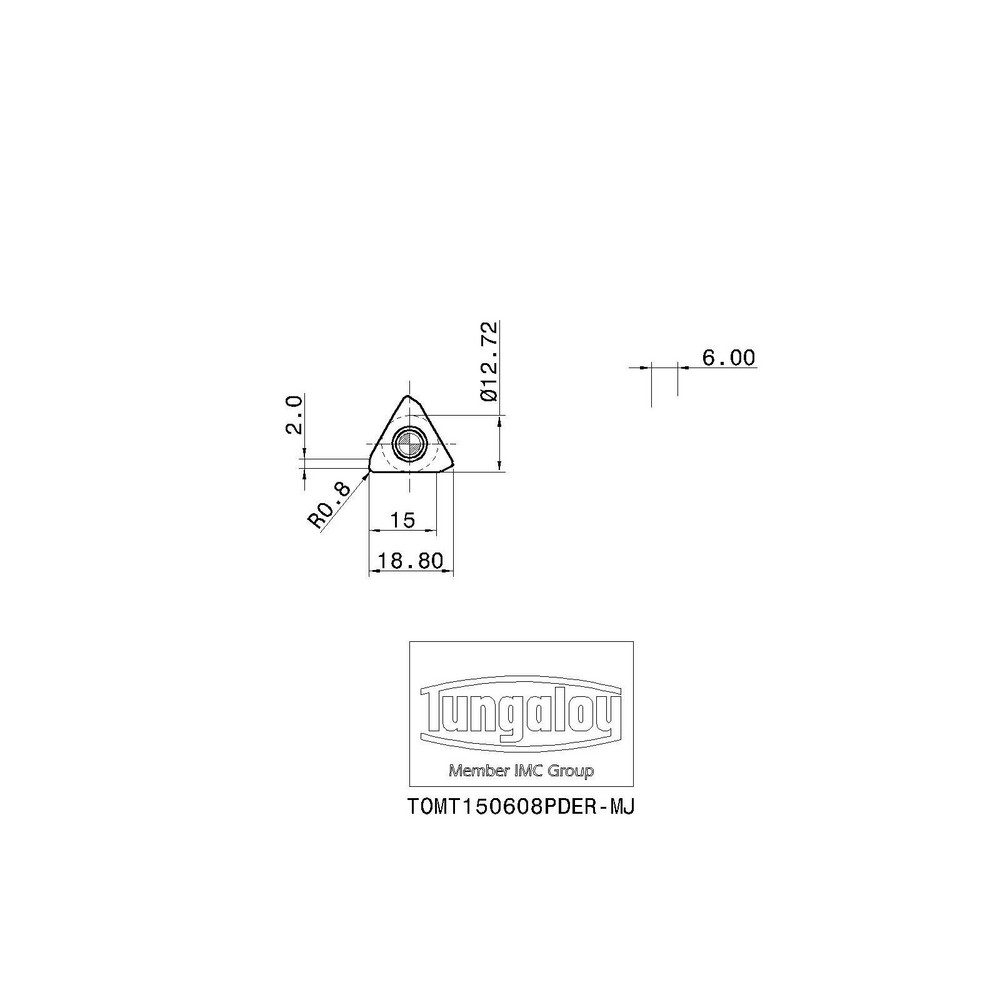

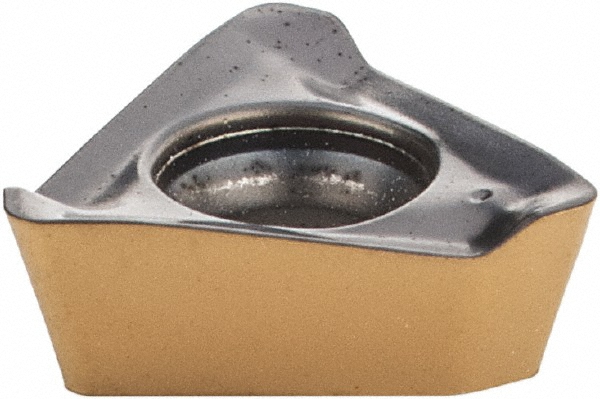

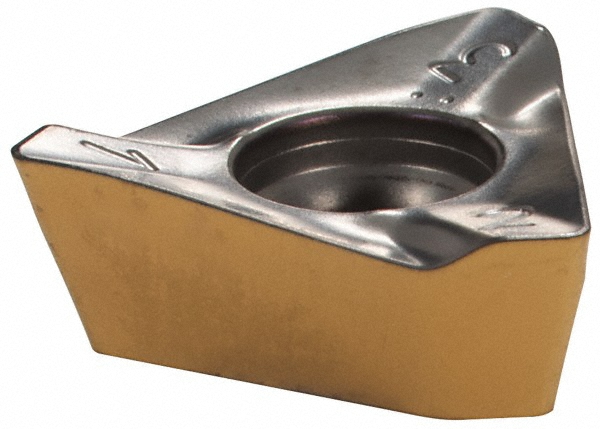

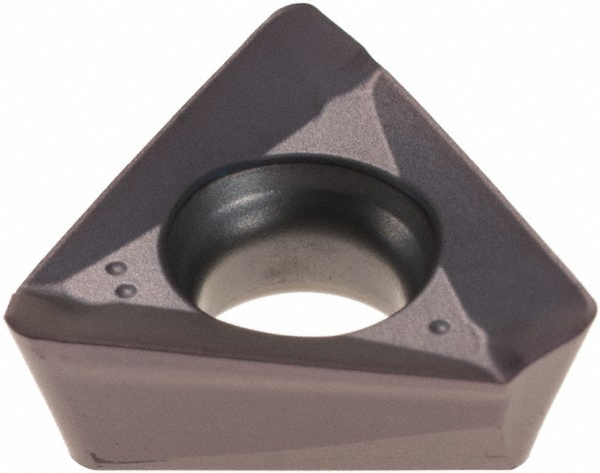

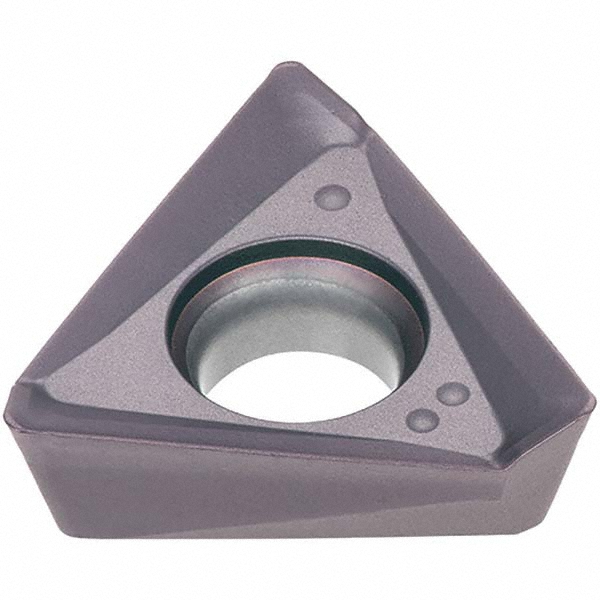

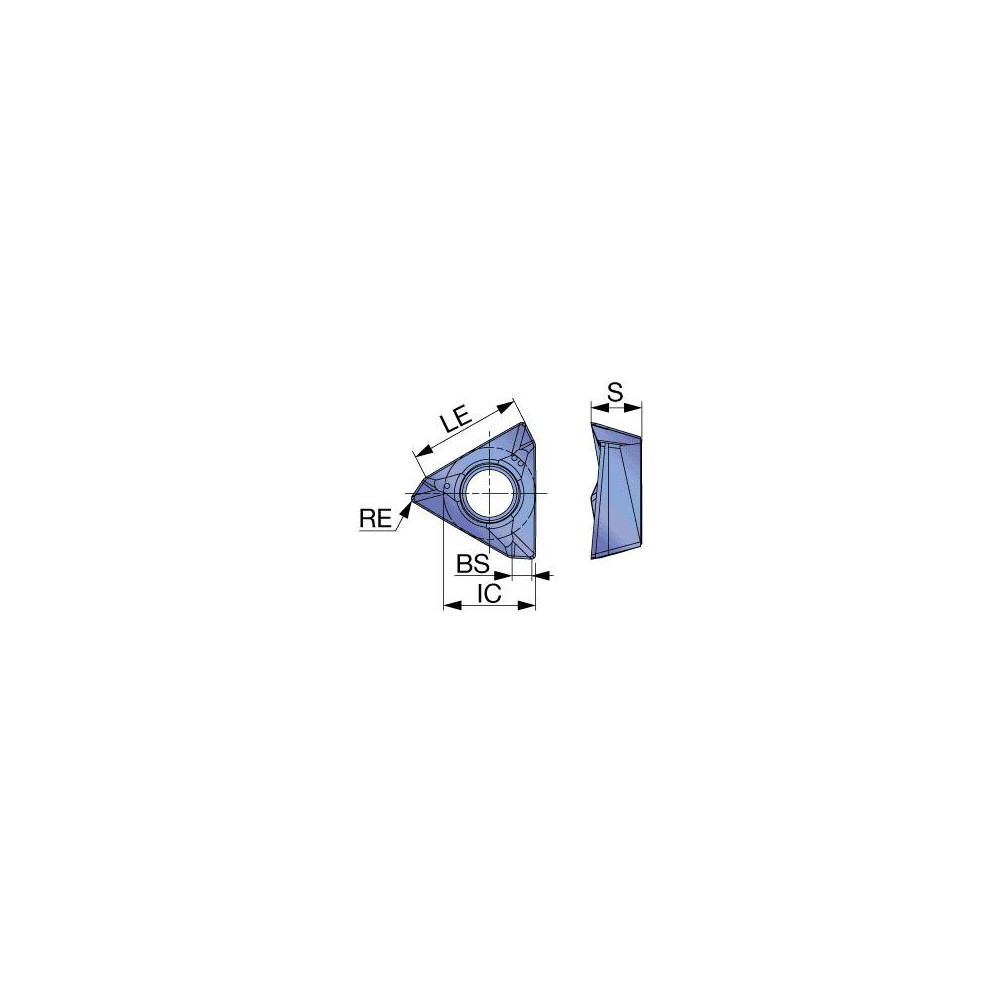

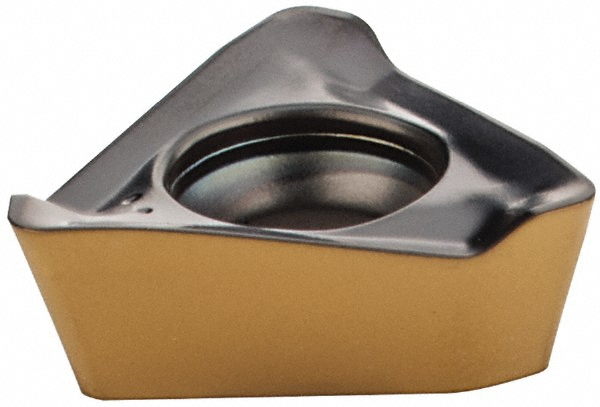

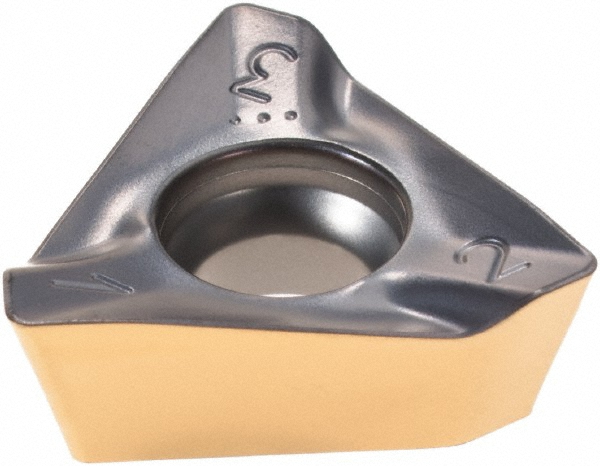

TiAlN Finish, 0.2360" Thick, 0.6180" Wide
| Insert Style | TOMT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | AH3135 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Coating/Finish | TiAlN |
| Insert Size Code | 150608 |
| Material Grade | M30; P30 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.6000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Maximum Depth of Cut (mm) | 15.00 |
| Series | TOMT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | TOMT150608PDER-MJ AH3135 |
| Iso Code | TOMT150608PDER-MJ AH3135 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TOMT150608PDER-MJ |
| Cutter Series Compatibility | TLA15-BT; TLA15-S; C-EPA; C-TLA; EPA15; TLA15-M; TPA15 |
| Chip Breaker | MJ |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.6180 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.6180 |
| Country of Origin | Japan |
| MSC Number | MSC# 68914670 |
