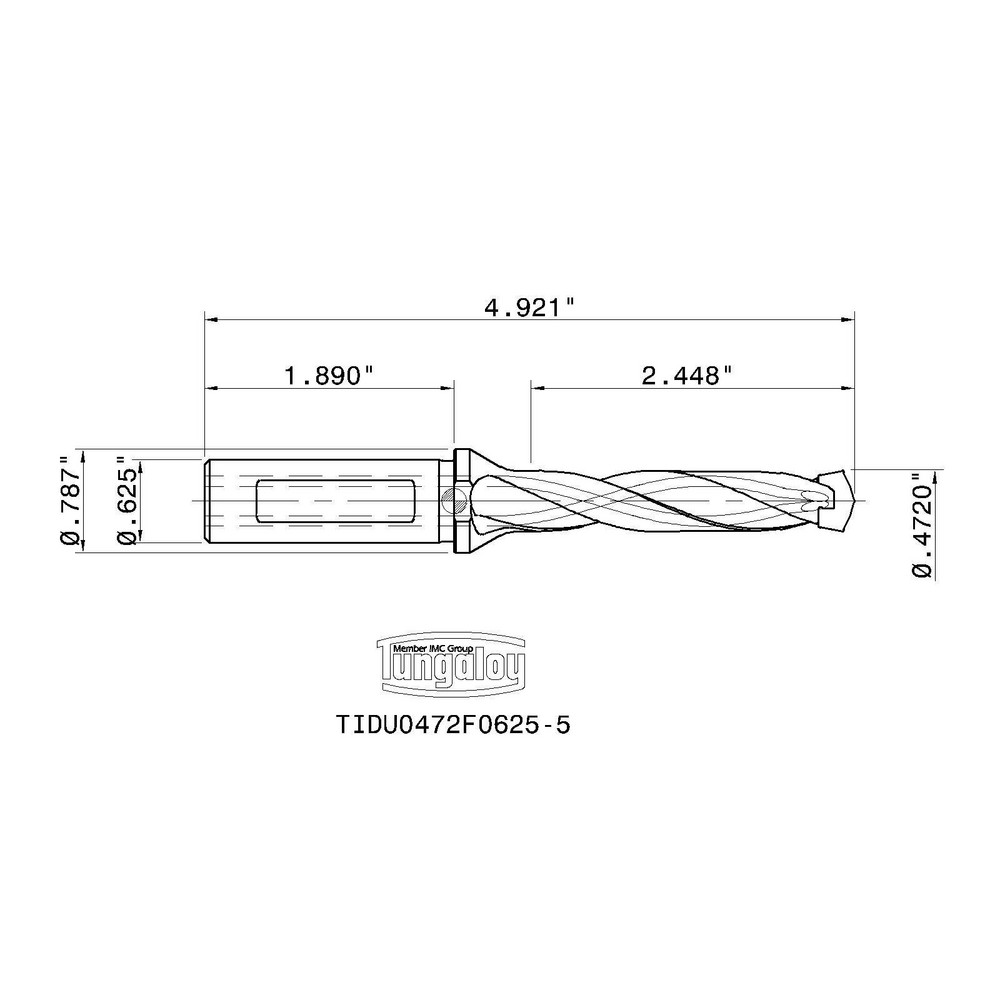

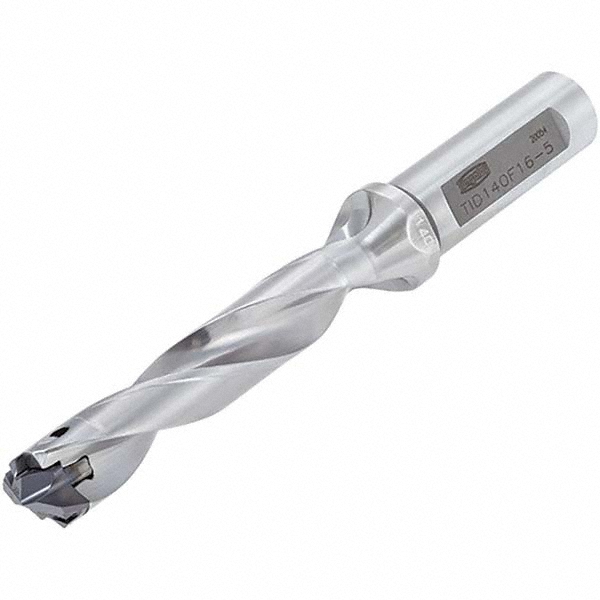

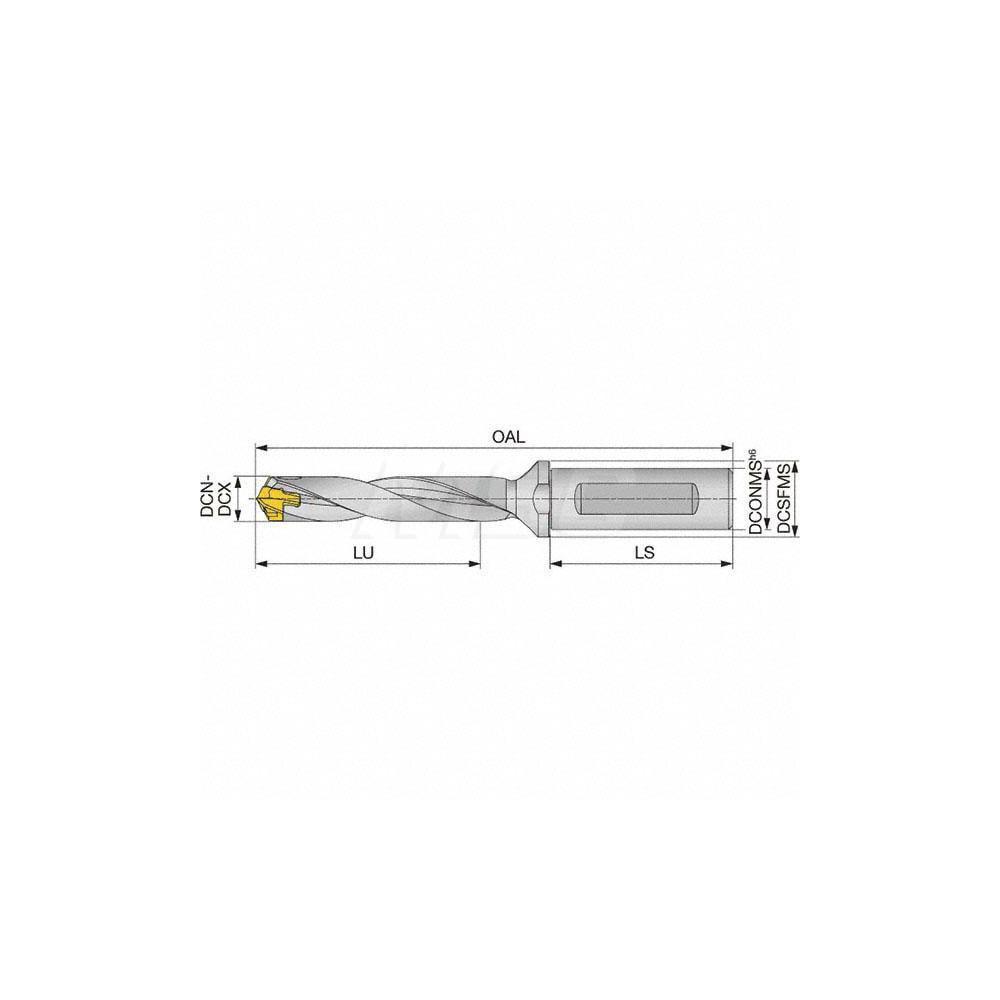

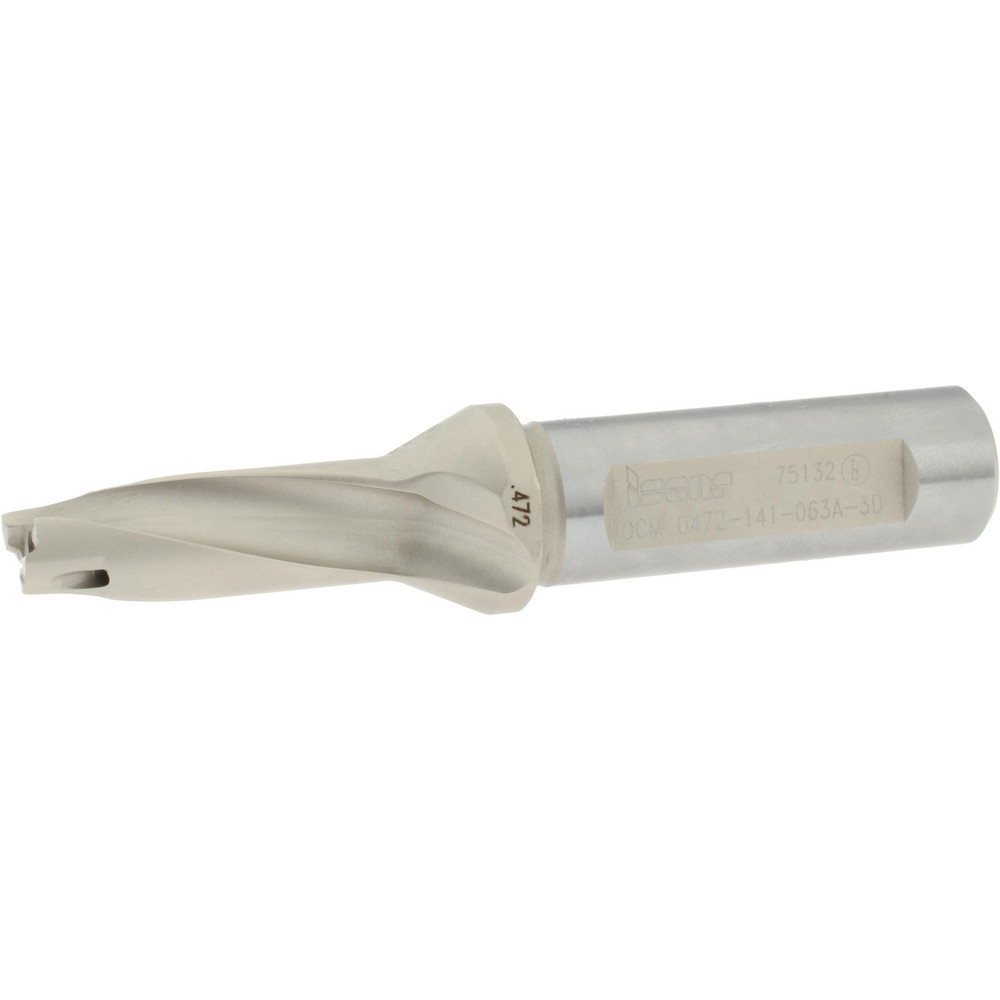

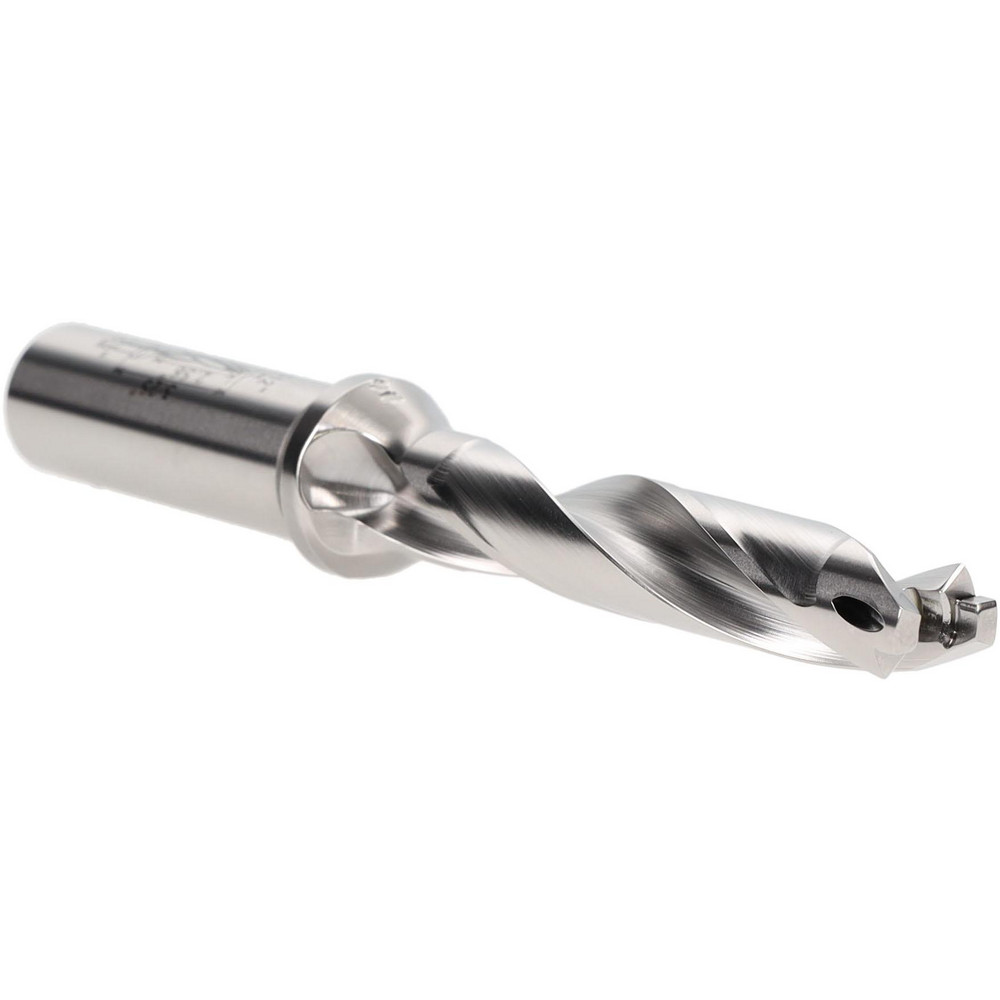

Uses DMP115/DMP116/DMP117/DMP118/DMP119 Inserts, 5.394" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.4720 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.4880 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.3620 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Compatible Insert Style | DMP116; DMP115; DMP119; DMP118; DMP117 |
| Overall Length (Decimal Inch) | 5.394 |
| Series | DrillMeister |
| Toolholder Style | TID L/D=5 |
| Flute Length (Decimal Inch) | 2.3620 |
| Body Length (Decimal Inch) | 3.504 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling; Holemaking |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | South Korea |
| MSC Number | MSC# 33573791 |
