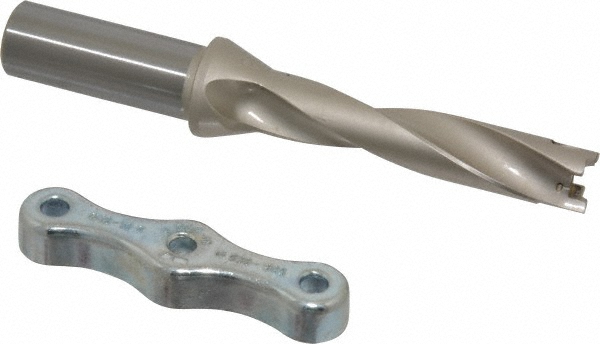

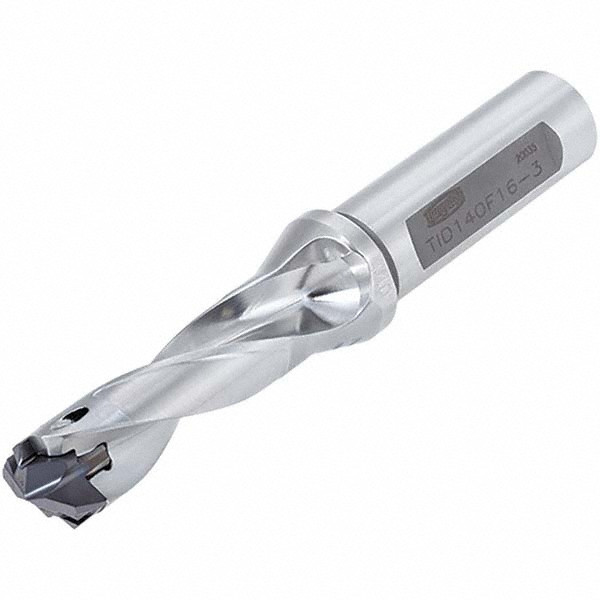

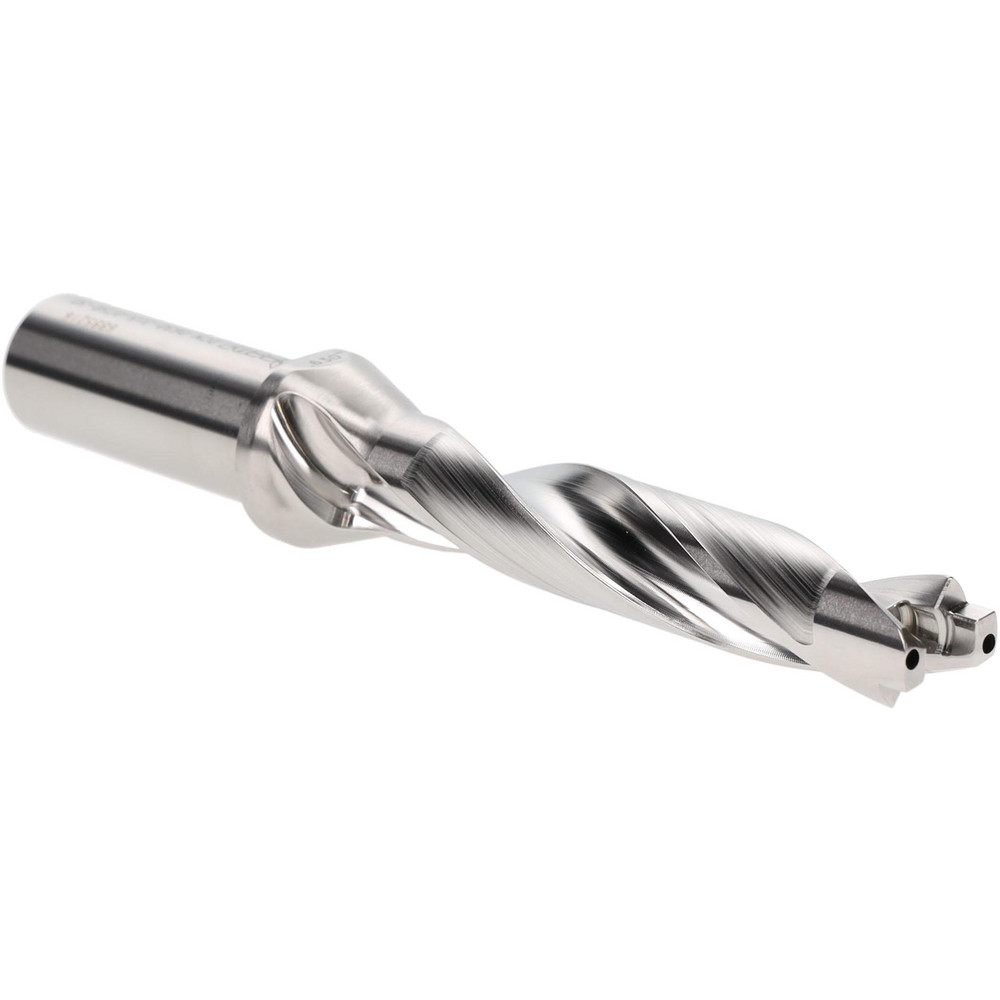

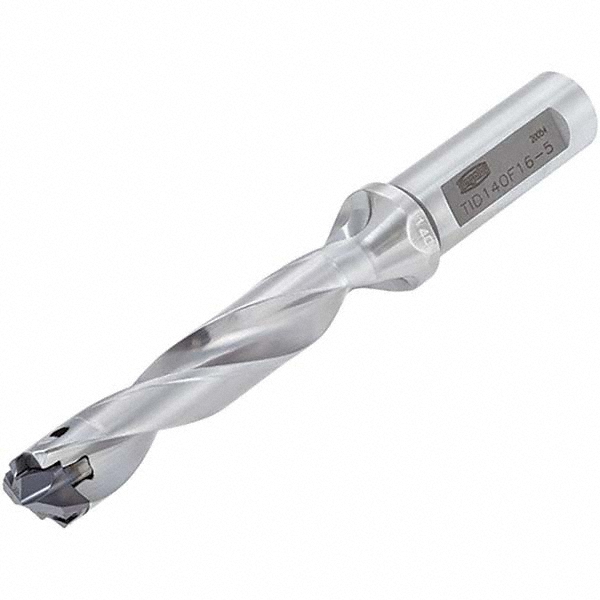

Uses DMP150/DMP151/DMP152/DMP153/DMP154/DMP155/DMP156/DMP157/DMP158/DMP159 Inserts, 4.854" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6300 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.6650 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.8900 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Style | DMP156; DMP155; DMP154; DMP153; DMP159; DMP158; DMP157; DMP152; DMP151; DMP150 |

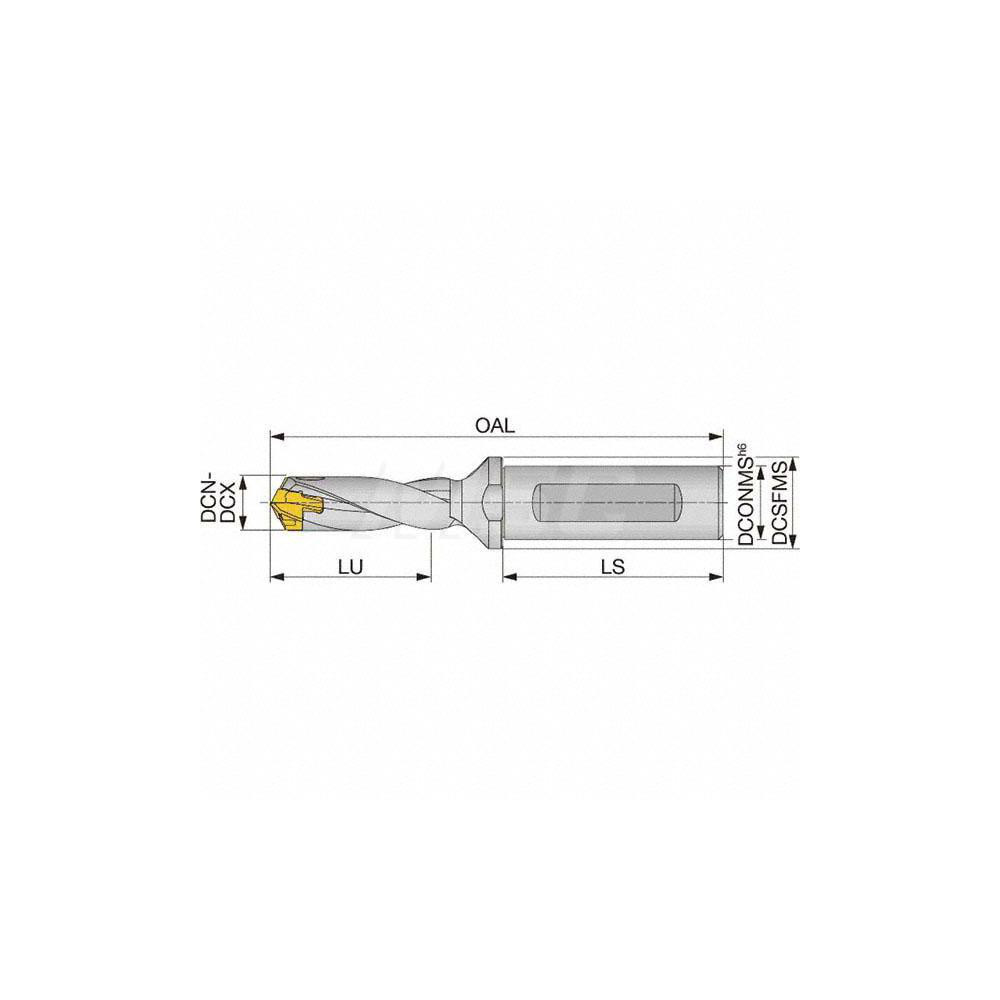

| Overall Length (Decimal Inch) | 4.854 |
| Series | DrillMeister |
| Toolholder Style | TID L/D=3 |
| Flute Length (Decimal Inch) | 1.8900 |
| Body Length (Decimal Inch) | 2.885 |
| Shank Length (Decimal Inch) | 1.9690 |
| Tool Application | Drilling; Holemaking |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | South Korea |
| MSC Number | MSC# 33745456 |
