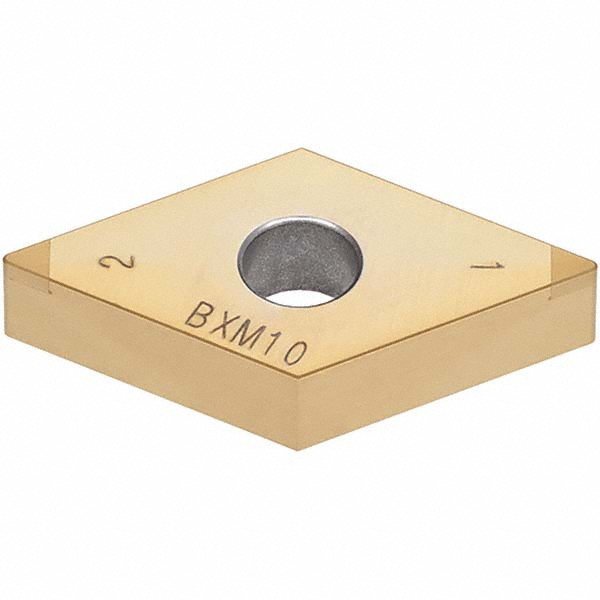

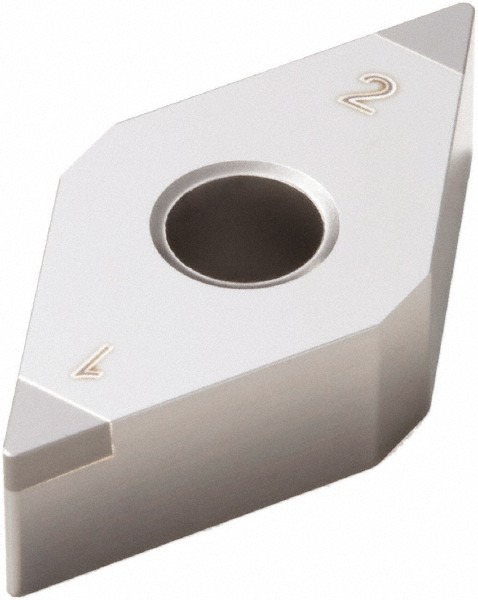

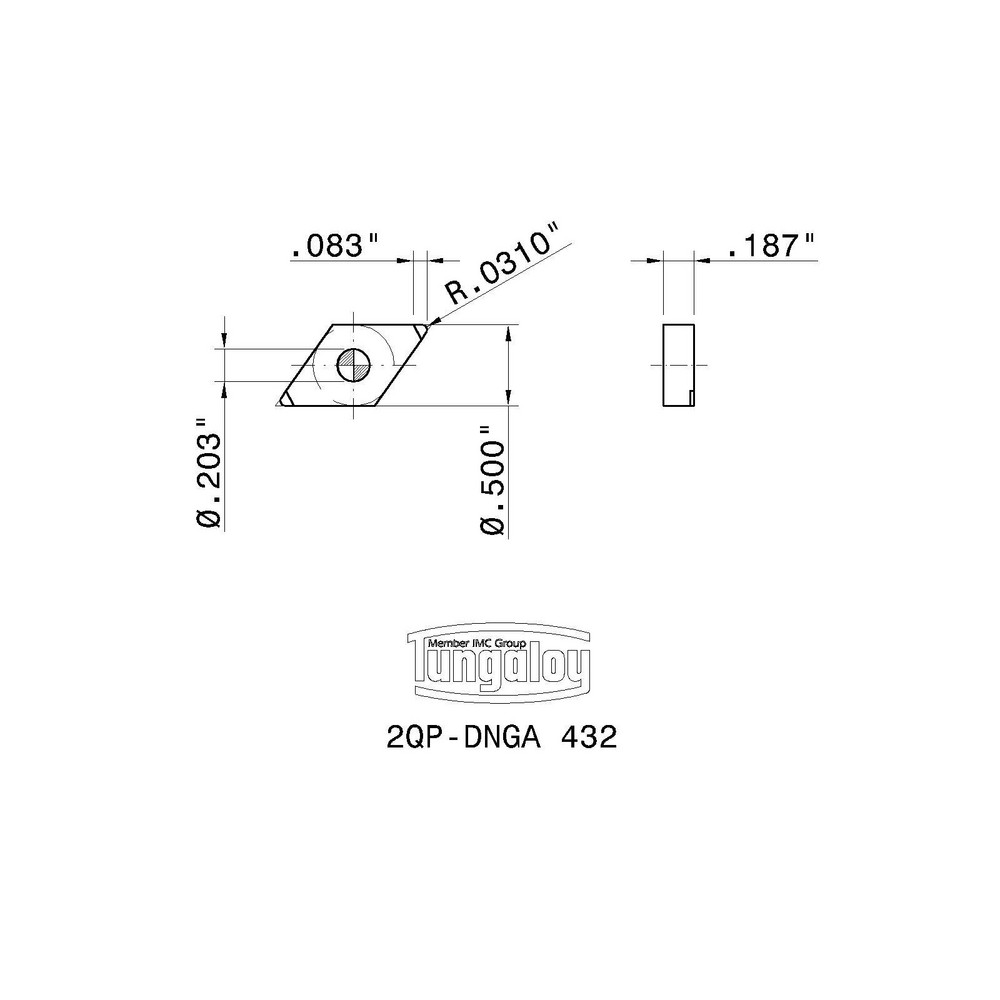

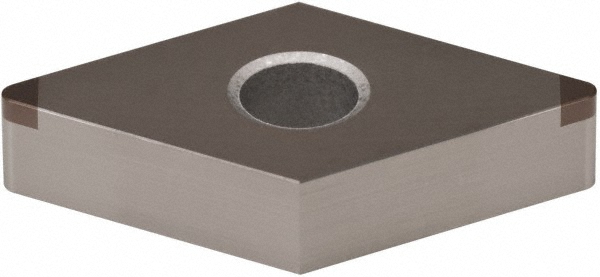

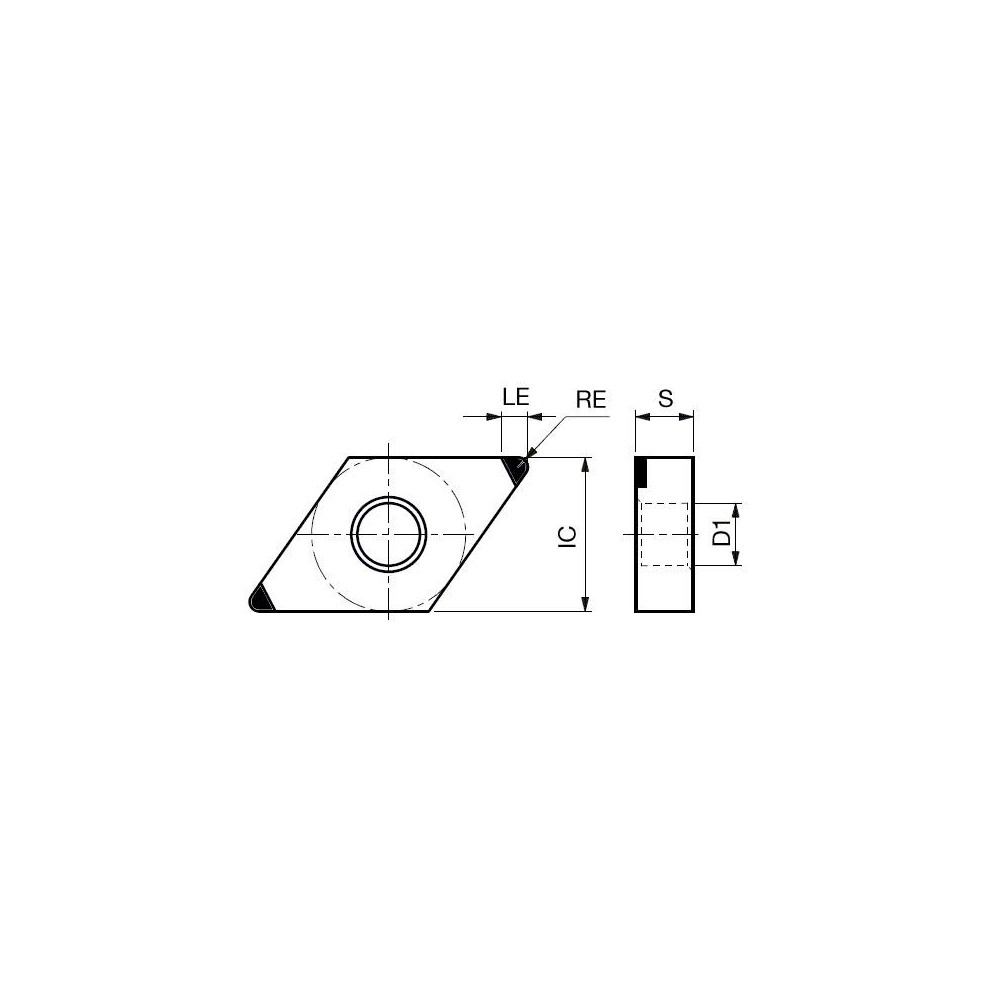

TiAlN Finish, Neutral, 1.2200" Long, 0.5000" Inscribed Circle, 0.0315" Corner Radius, 55 deg D - Diamond (Rhombic) 55-Deg, Series 2QP-DNGA
| Insert Style | DNGA |
|---|---|
| ISO Size Code | 150408 |
| ANSI Size Code | 432 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | PCBN |
| Manufacturer Grade | BXA20 |
| Coating/Finish | TiAlN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | 2QP-DNGA |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| ISO Insert Code | DNGA150408 |
| ANSI Insert Code | DNGA432 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2200 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | DNGA 432 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6743685 |
| Material Grade | Medium Grain |
| Single or Multi Tipped | Multi Tipped |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Industry Standard Number | 2QP-DNGA 432 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 2.10 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| Tip Length (Decimal Inch) | 0.0830 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Japan |
| MSC Number | MSC# 47666136 |
