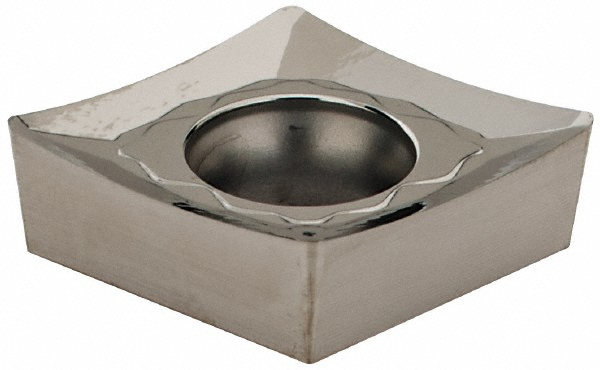

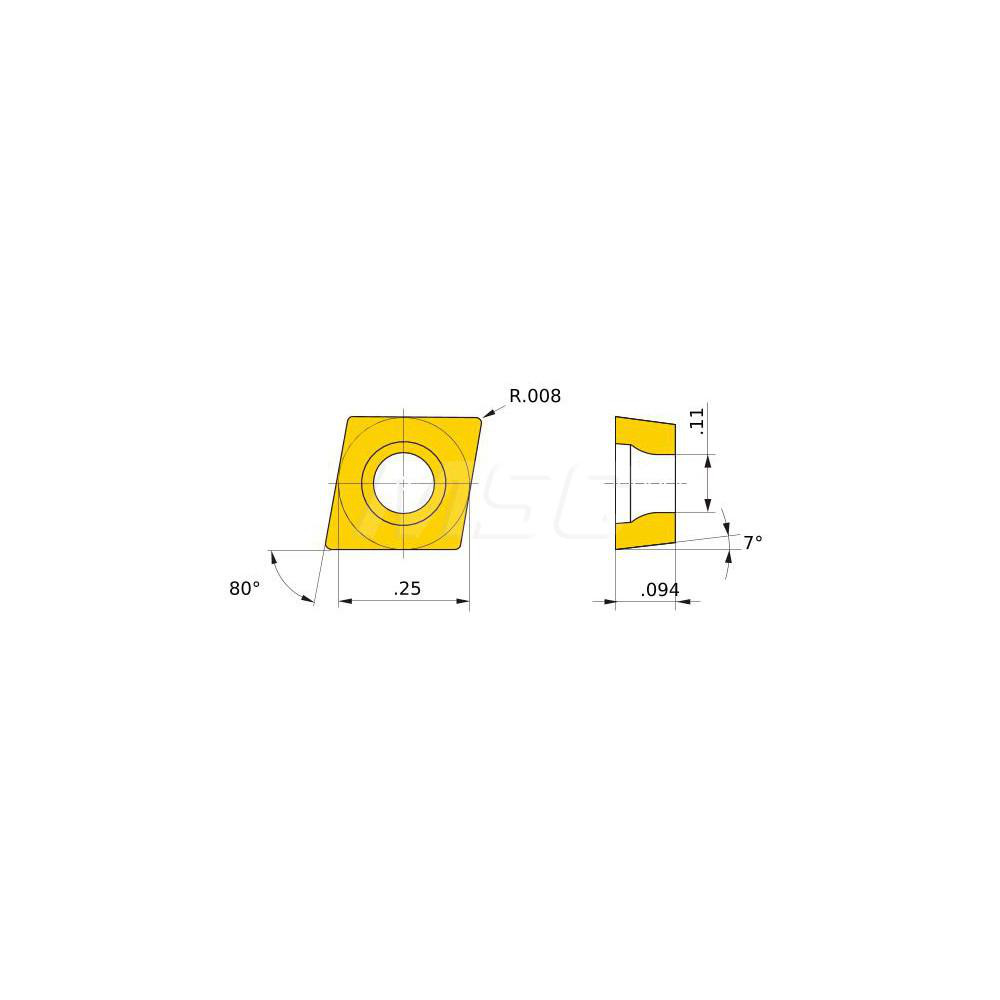

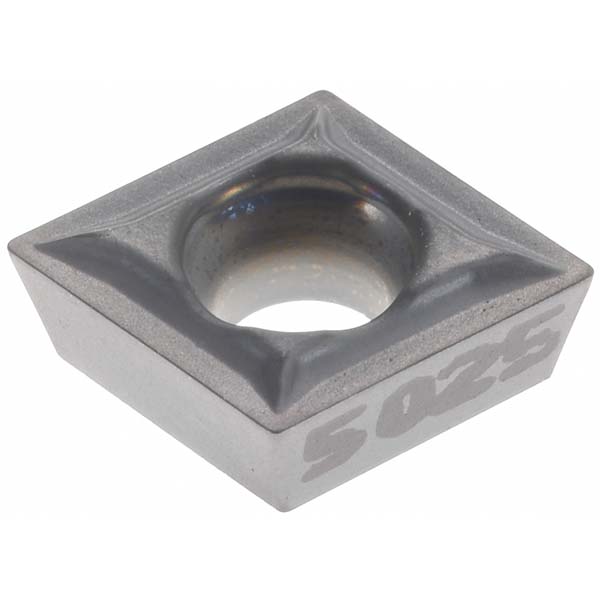

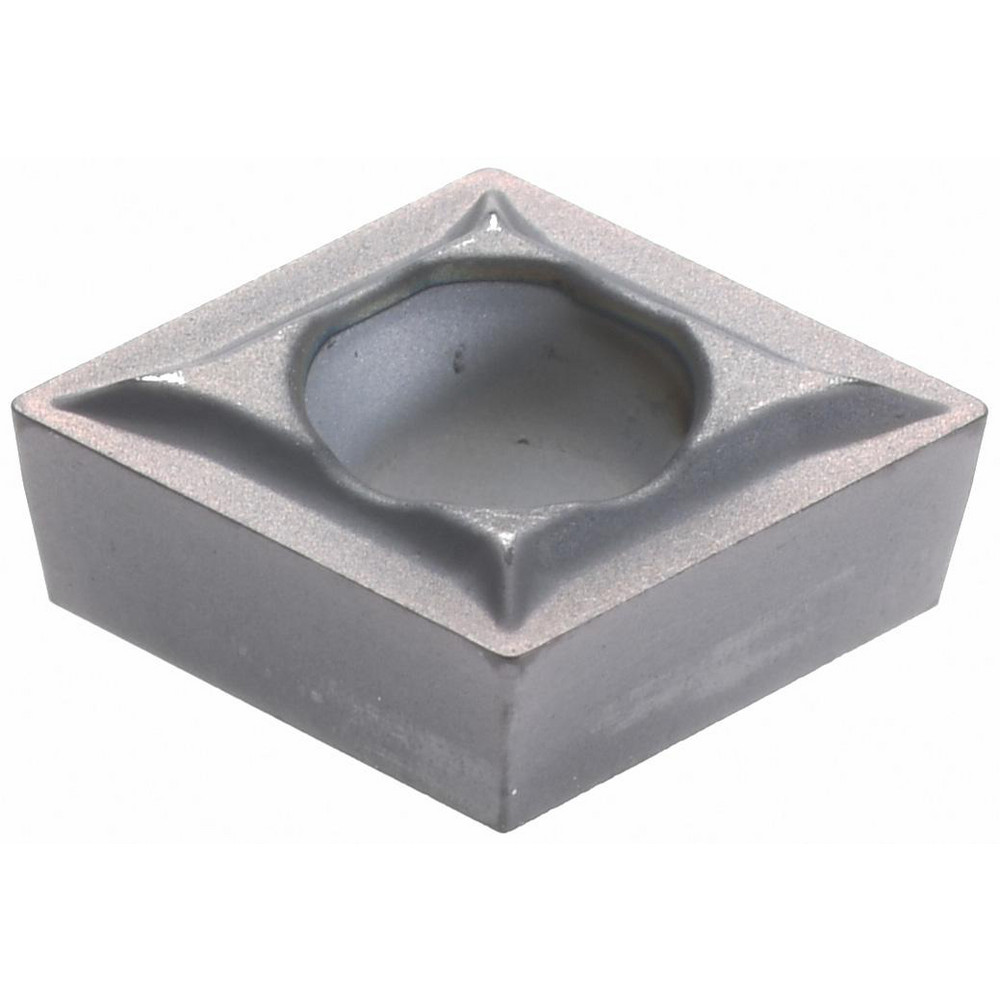

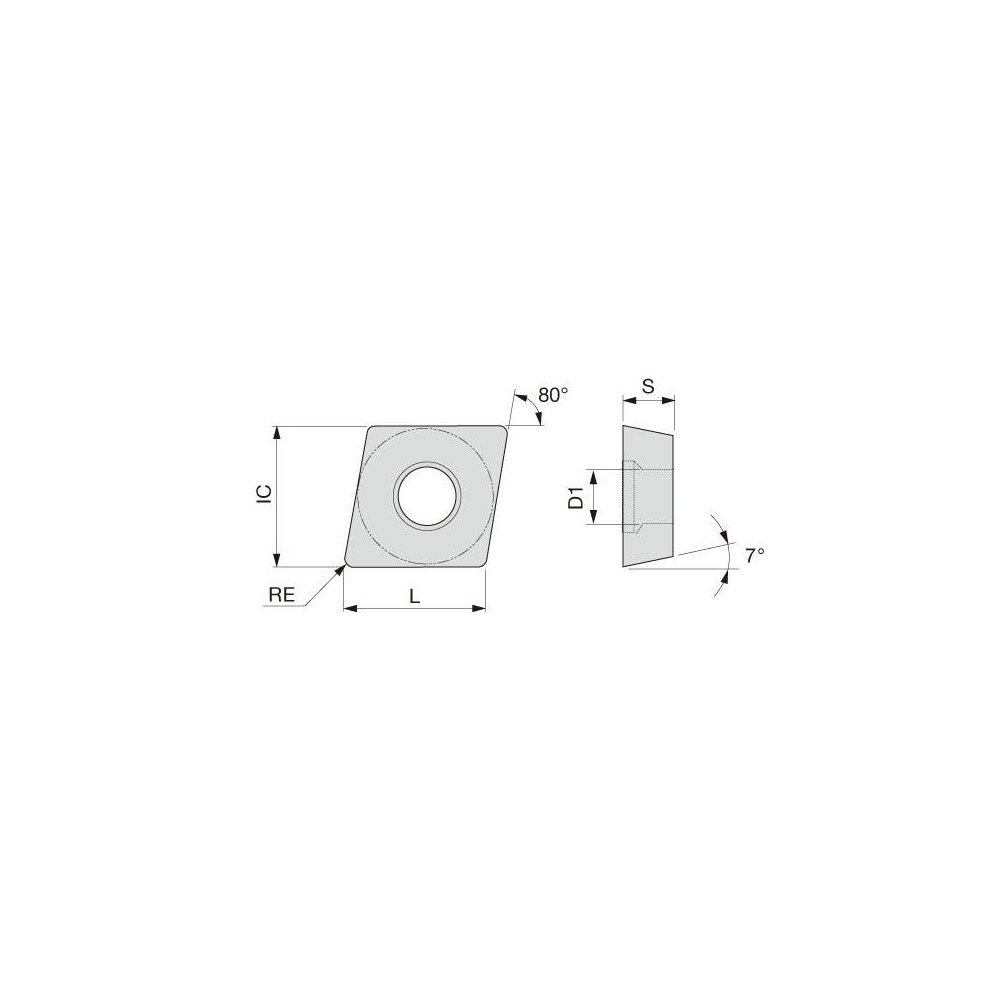

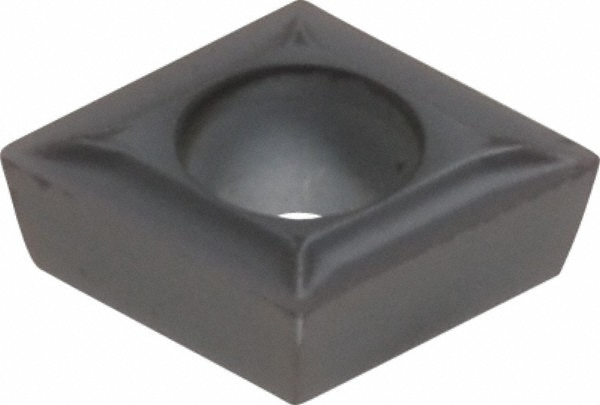

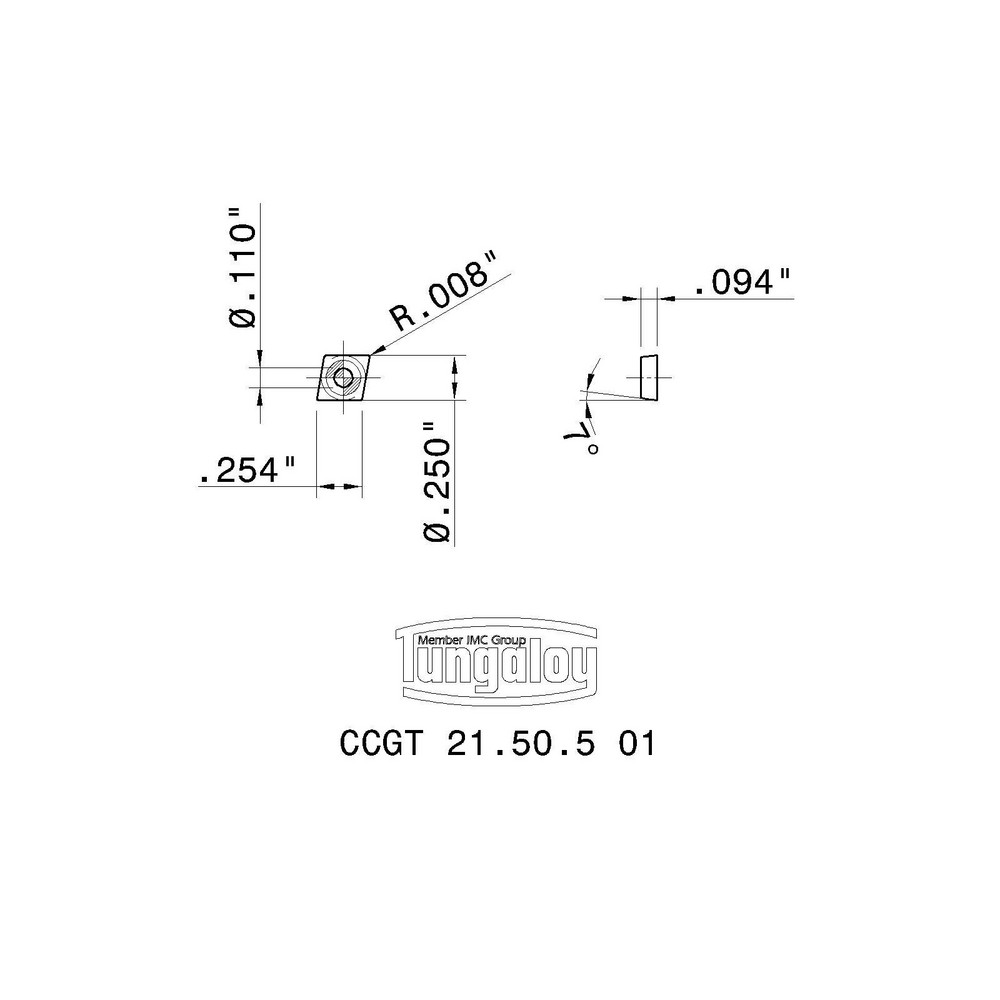

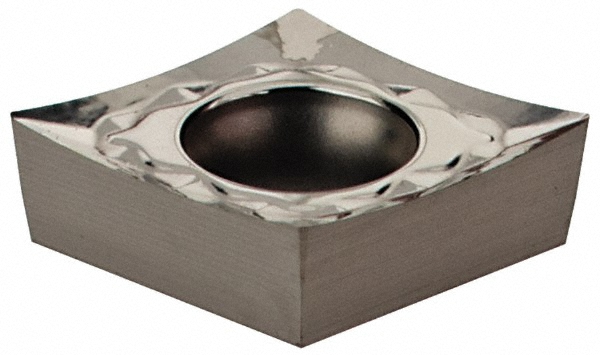

Bright/No Finish, Neutral, 0.2560" Long, 0.2500" Inscribed Circle, 0.0078" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CCGT
| Insert Style | CCGT |
|---|---|
| ISO Size Code | 060202 |
| ANSI Size Code | 21.50.5 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Insert Material | Cermet |
| Manufacturer Grade | NS9530 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | CCGT |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| ISO Insert Code | CCGT060202 |
| ANSI Insert Code | CCGT21.50.5 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2560 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | CCGT 21.50.5 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6997910 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Common |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCGT 21.50.5 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
| Country of Origin | Japan |
| MSC Number | MSC# 36443174 |
