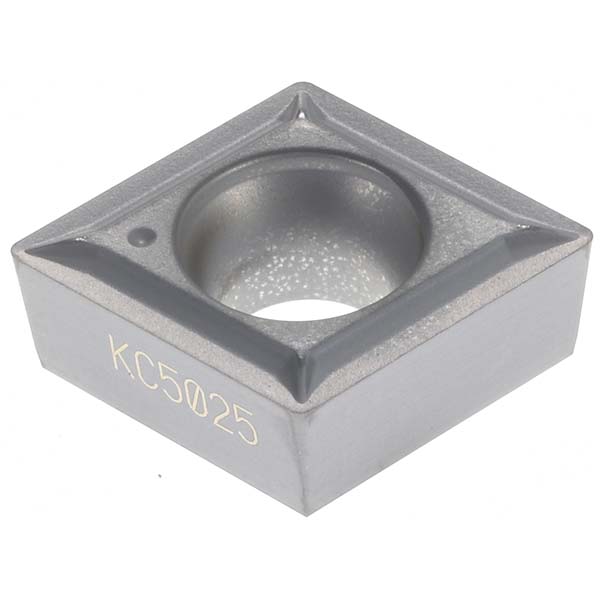

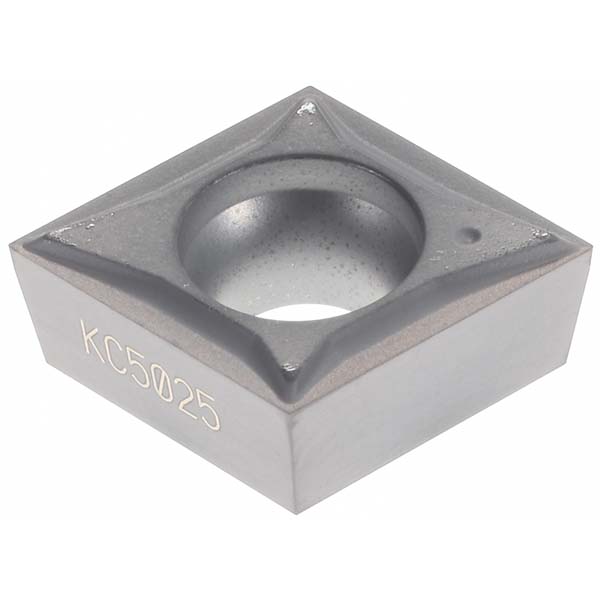

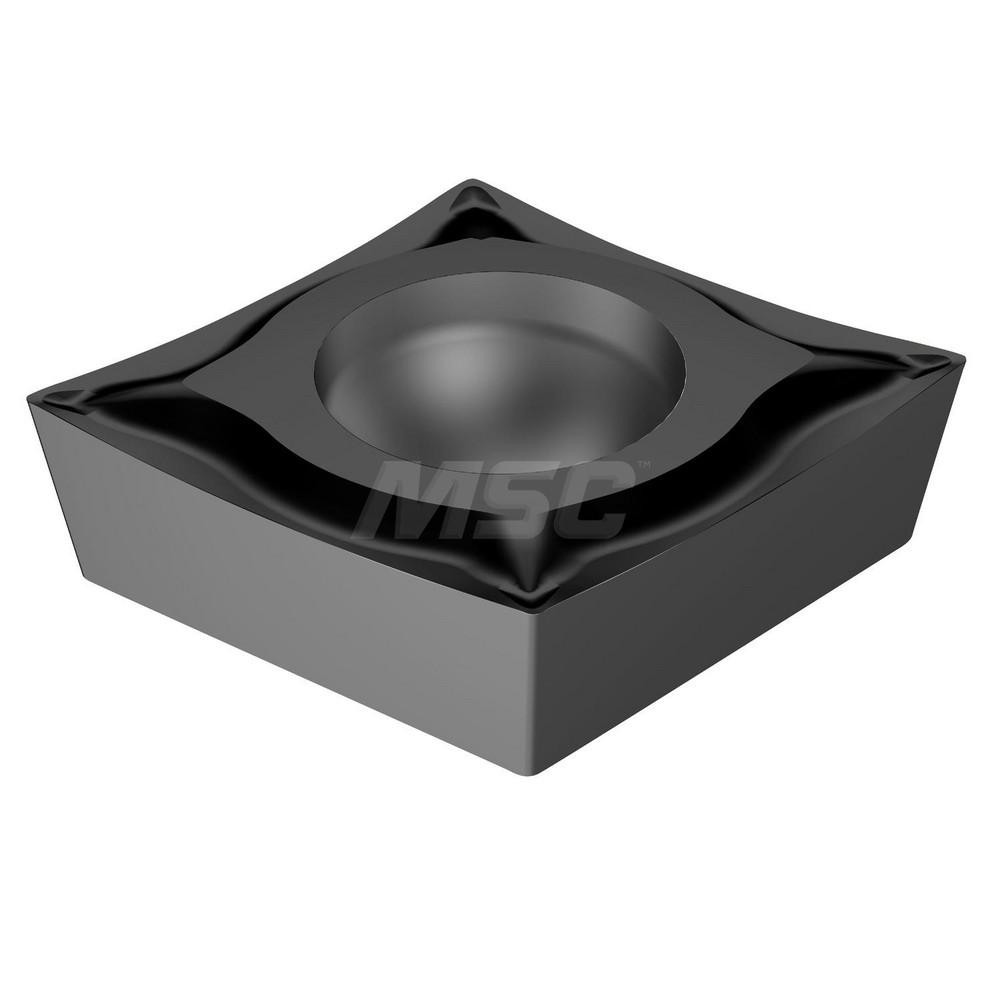

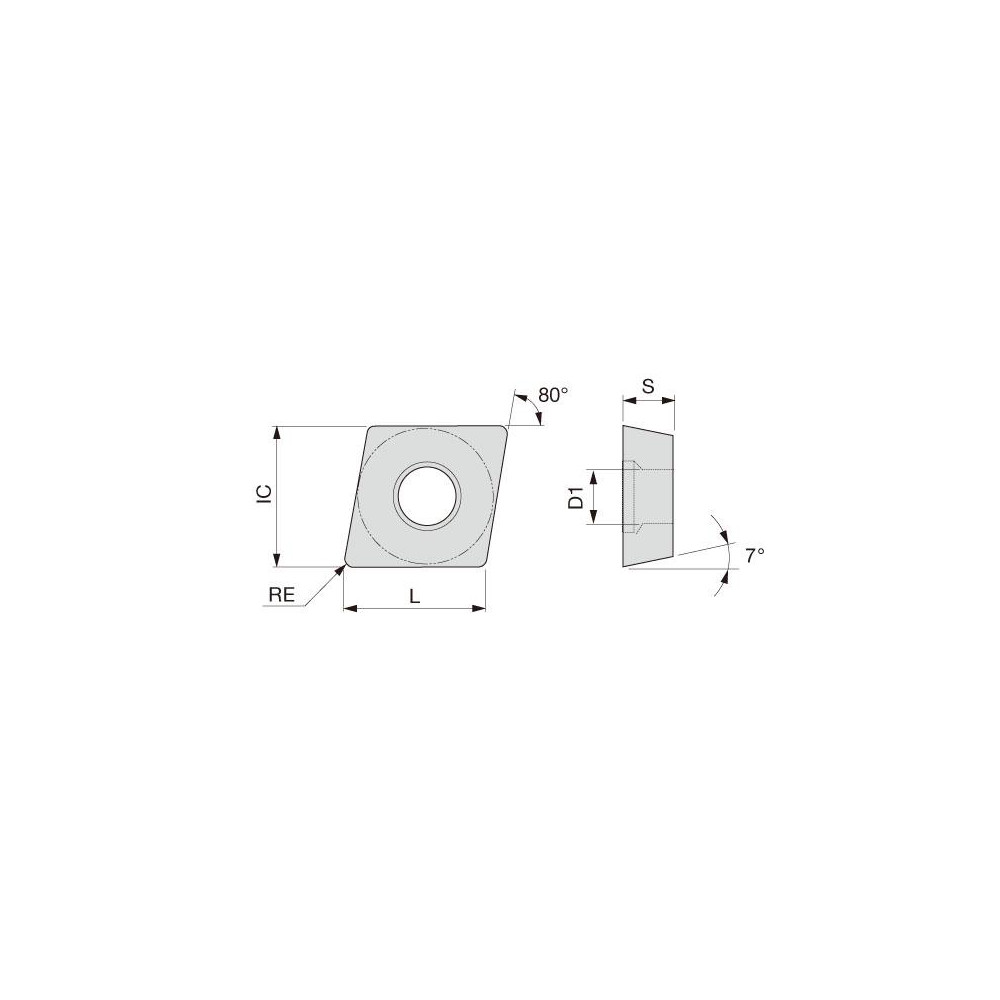

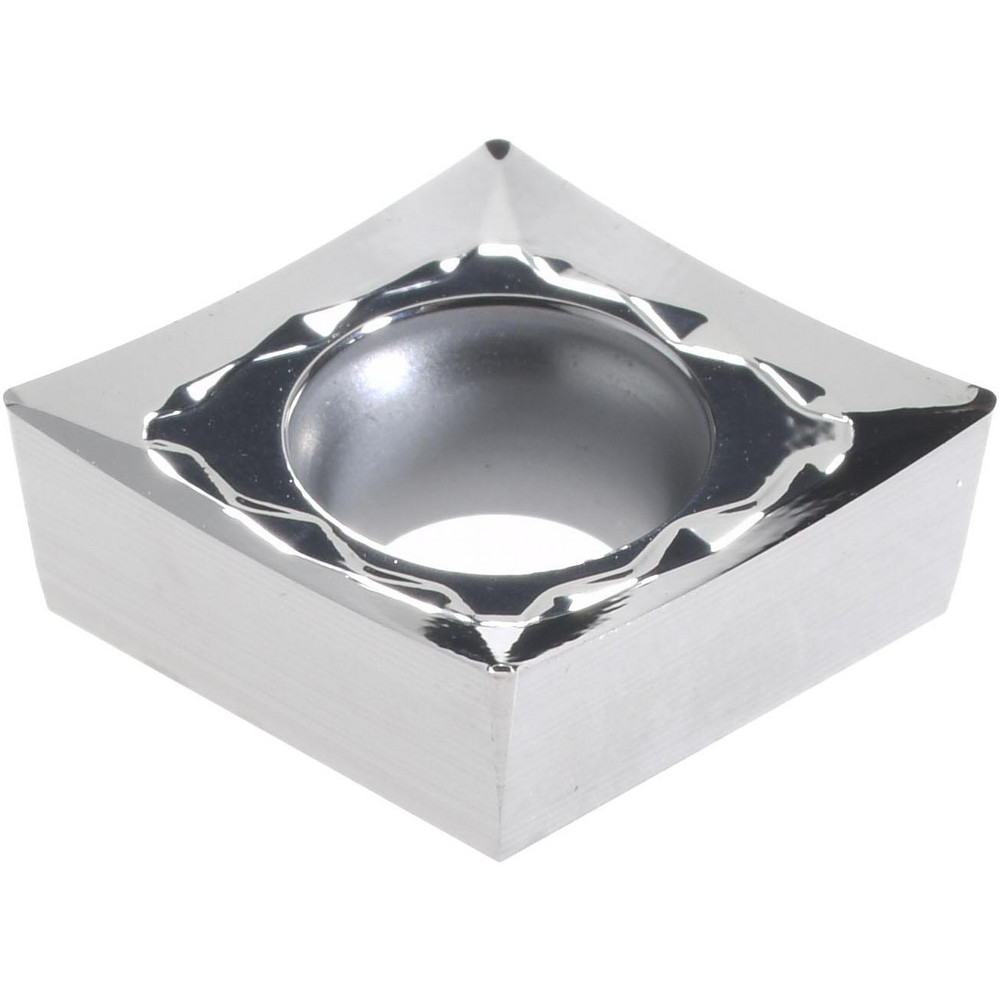

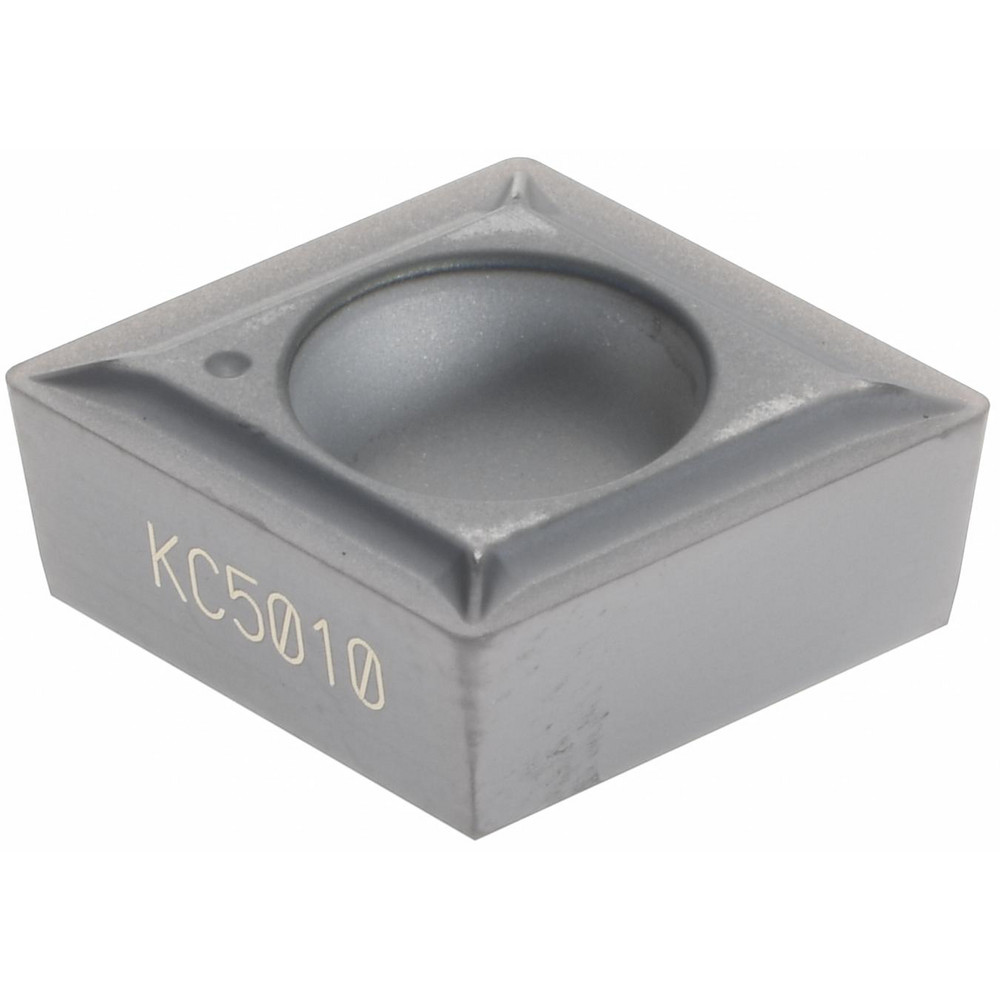

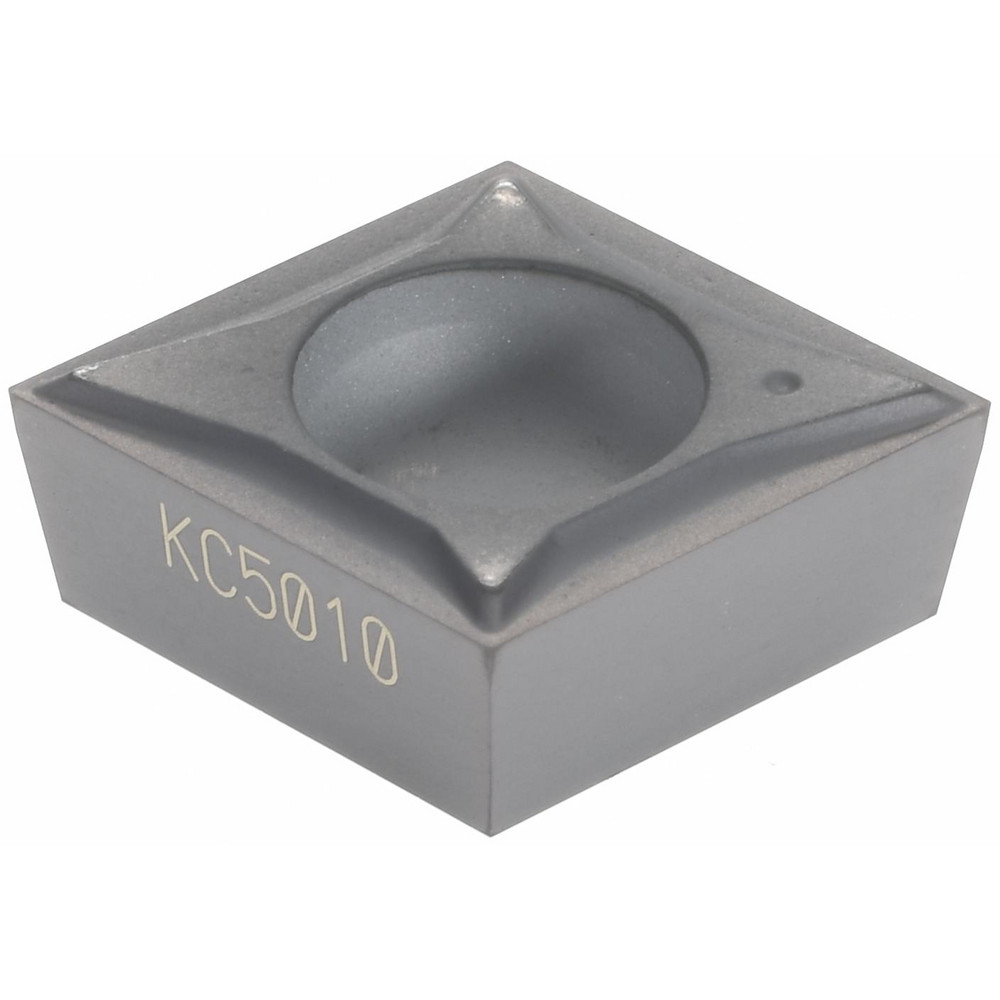

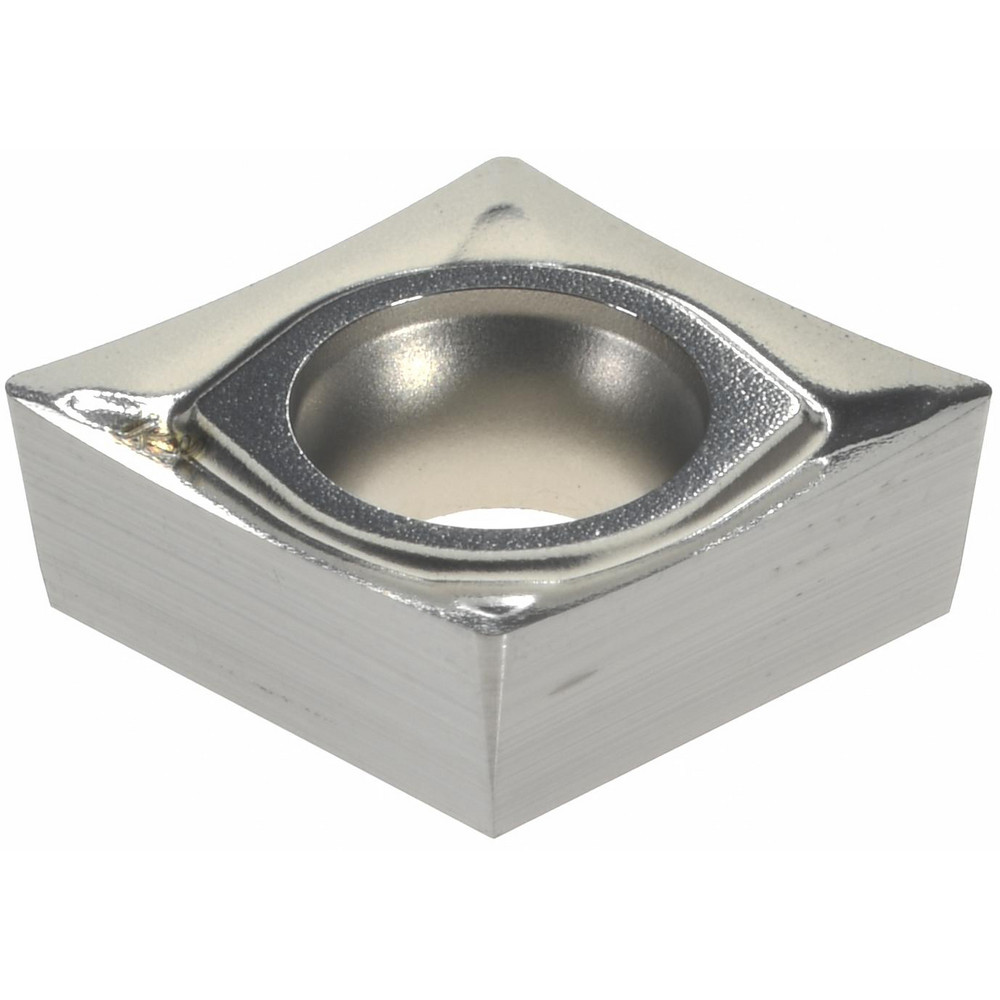

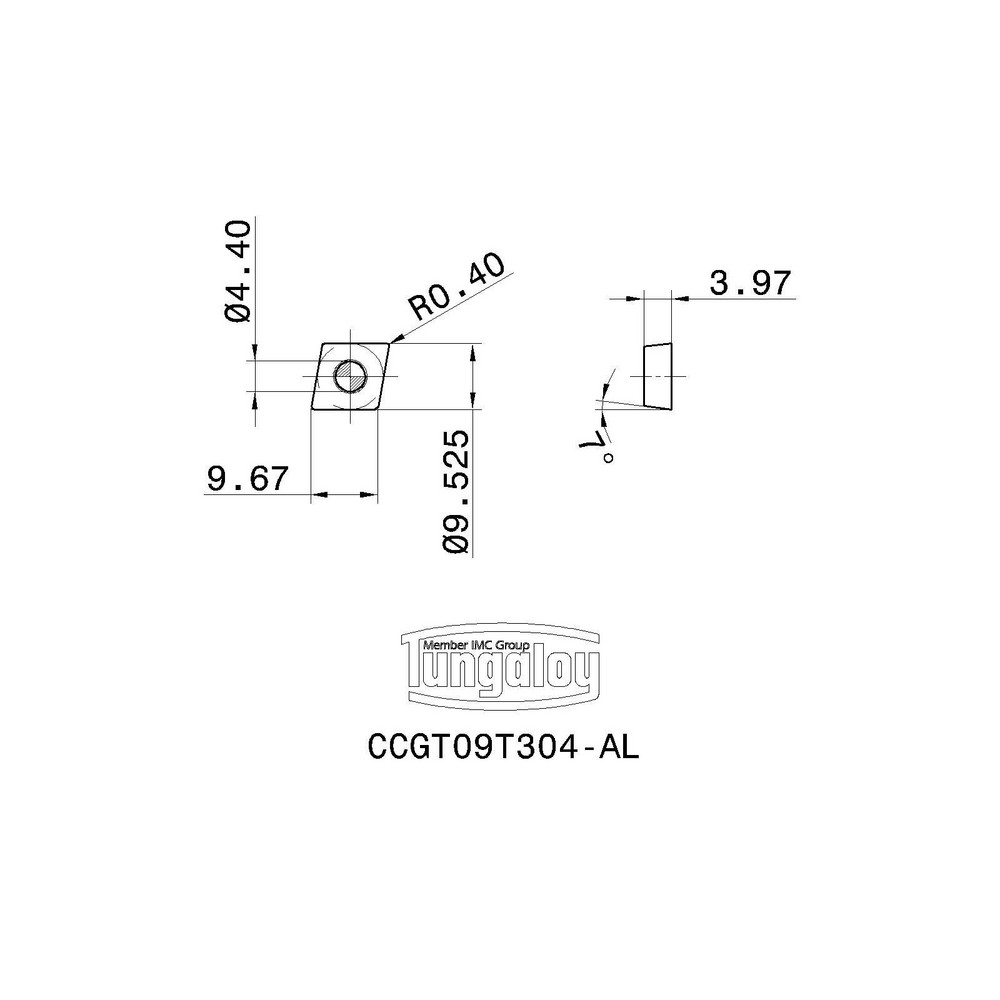

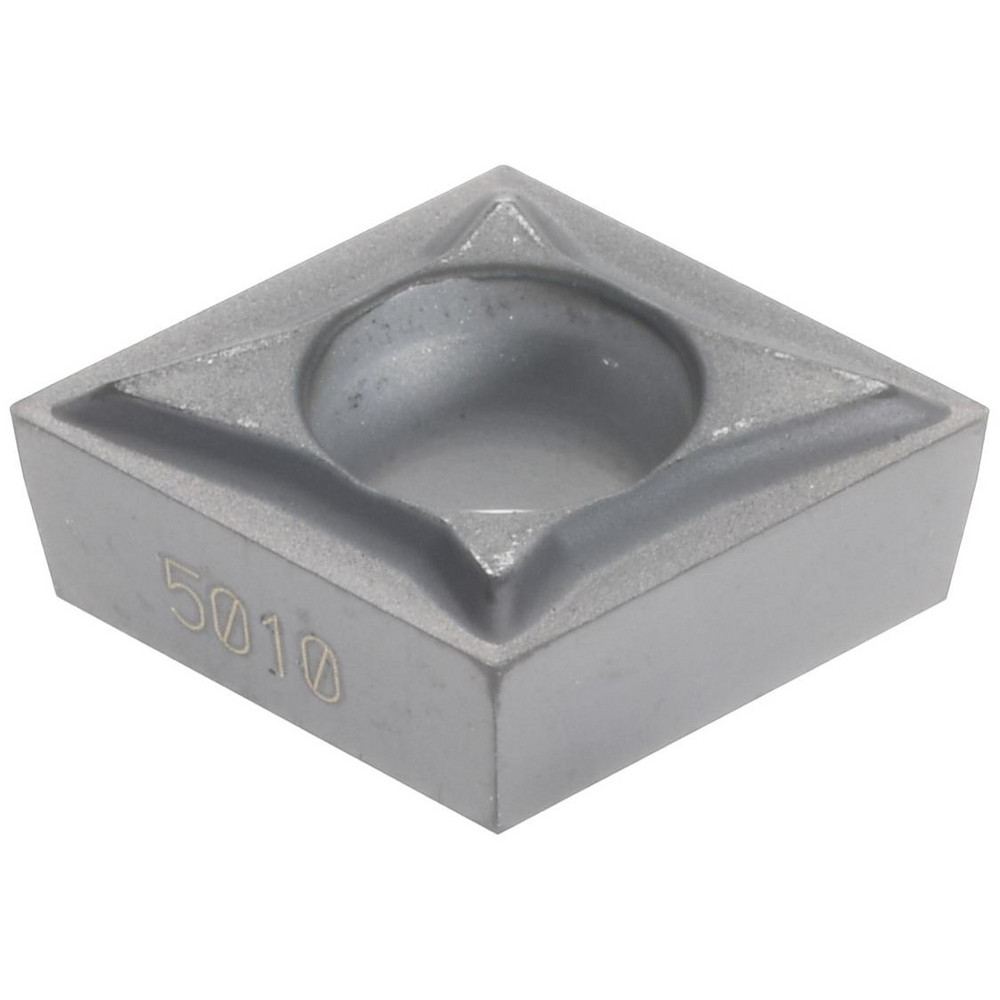

Bright/No Finish, Neutral, 0.3820" Long, 0.3750" Inscribed Circle, 0.0157" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CCGT-AL
| Insert Style | CCGT |
|---|---|
| ISO Size Code | 09T304 |
| ANSI Size Code | 32.51 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Manufacturer Grade | KS05F |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Hand | Neutral |
| Series | CCGT-AL |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| ISO Insert Code | CCGT09T304 |
| ANSI Insert Code | CCGT32.51 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | CCGT3251AL |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6822275 |
| Material Grade | Fine Grain |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | AL |
| Rake Angle | 20 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCGT 32.51 AL |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | Japan |
| MSC Number | MSC# 78068095 |
