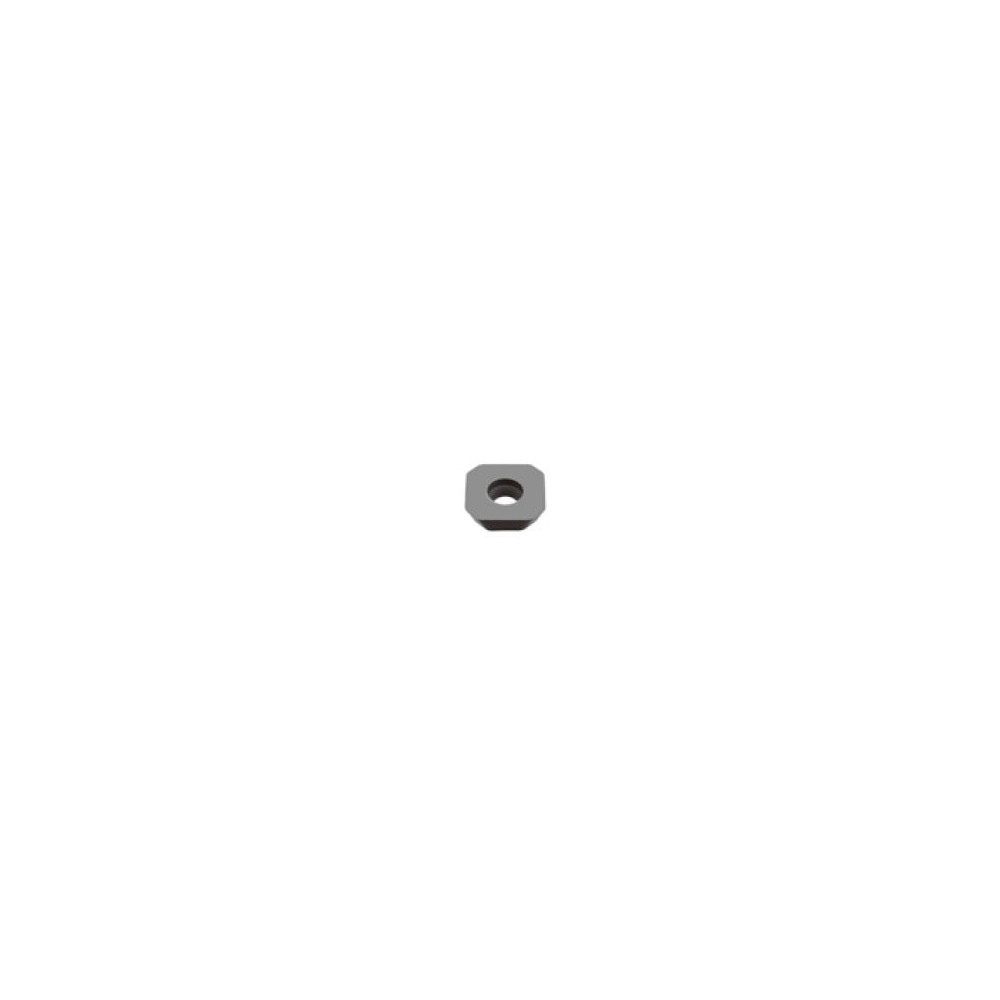

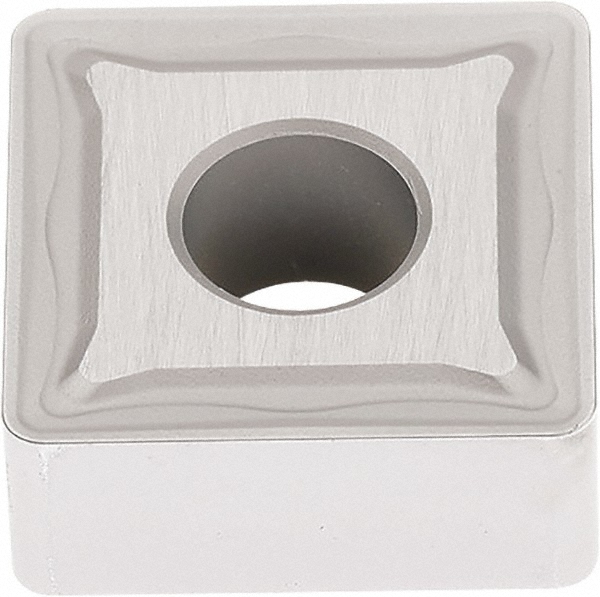

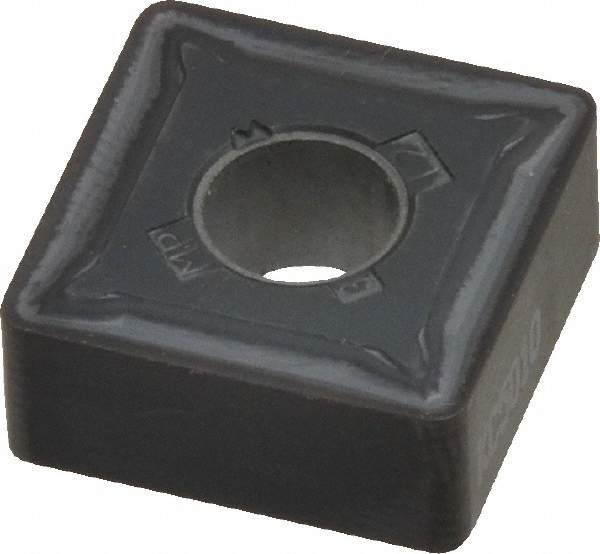

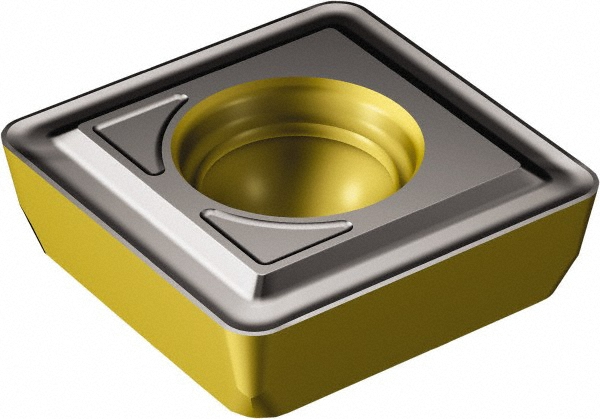

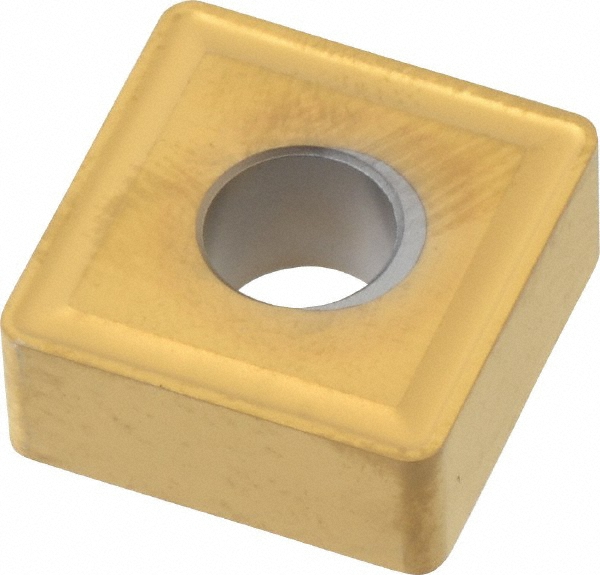

TiAlN Finish, Neutral, 5/8" Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 90 deg S - Square, Series SNMG-TM

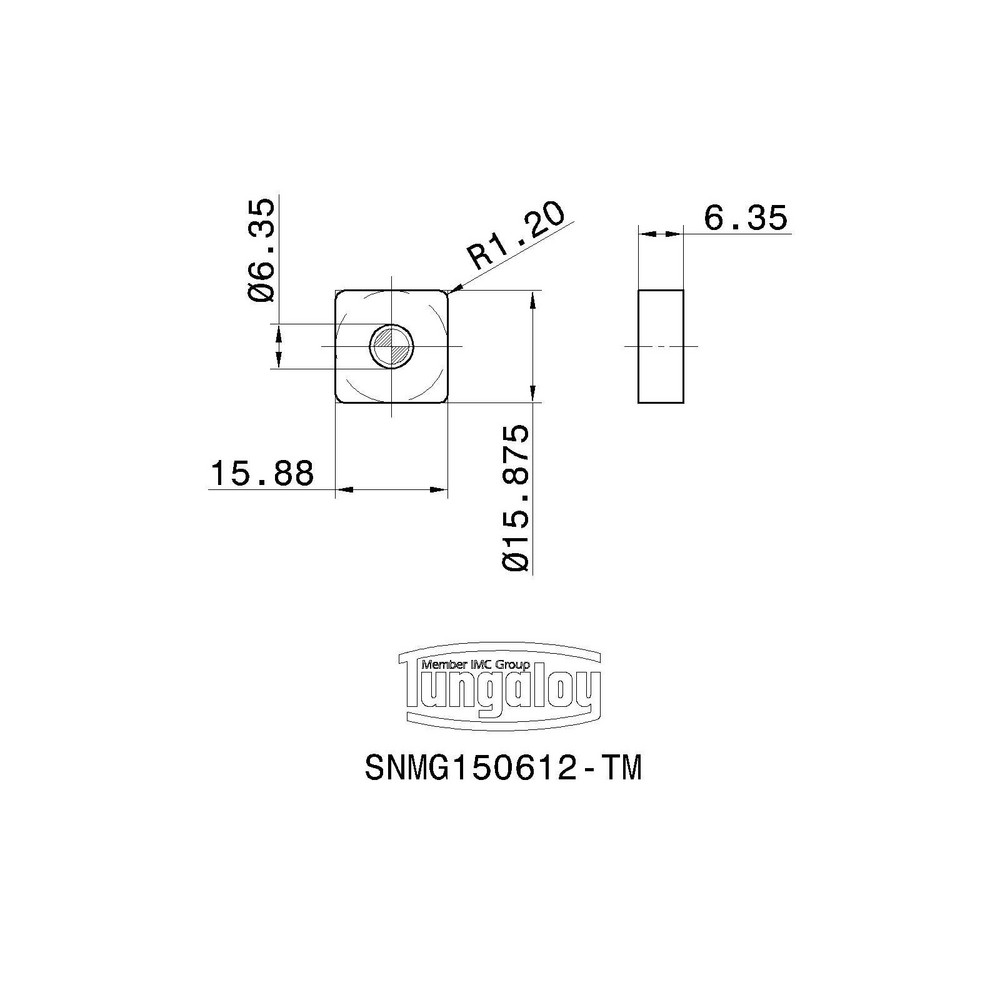

| Insert Style | SNMG |
|---|---|
| ISO Size Code | 150612 |
| ANSI Size Code | 543 |
| Insert Shape | S - Square |
| Included Angle | 90 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Manufacturer Grade | AH120 |
| Coating/Finish | TiAlN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 1/4 |
| Insert Hand | Neutral |
| Series | SNMG-TM |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 8 |
| Side Clearance | Negative |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| ISO Insert Code | SNMG150612 |
| ANSI Insert Code | SNMG543 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 5/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6250 |
| Insert Length (Inch) | 5/8 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | SNMG 543 TM |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6811976 |
| Material Grade | M15; M25; P25; S10; P15; S25; K30; K15 |
| Coating Classification | PVD |
| Chip Breaker | TM |
| Rake Angle | -6 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | SNMG 543 TM |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 543 |
| Country of Origin | Japan |
| MSC Number | MSC# 59475442 |
