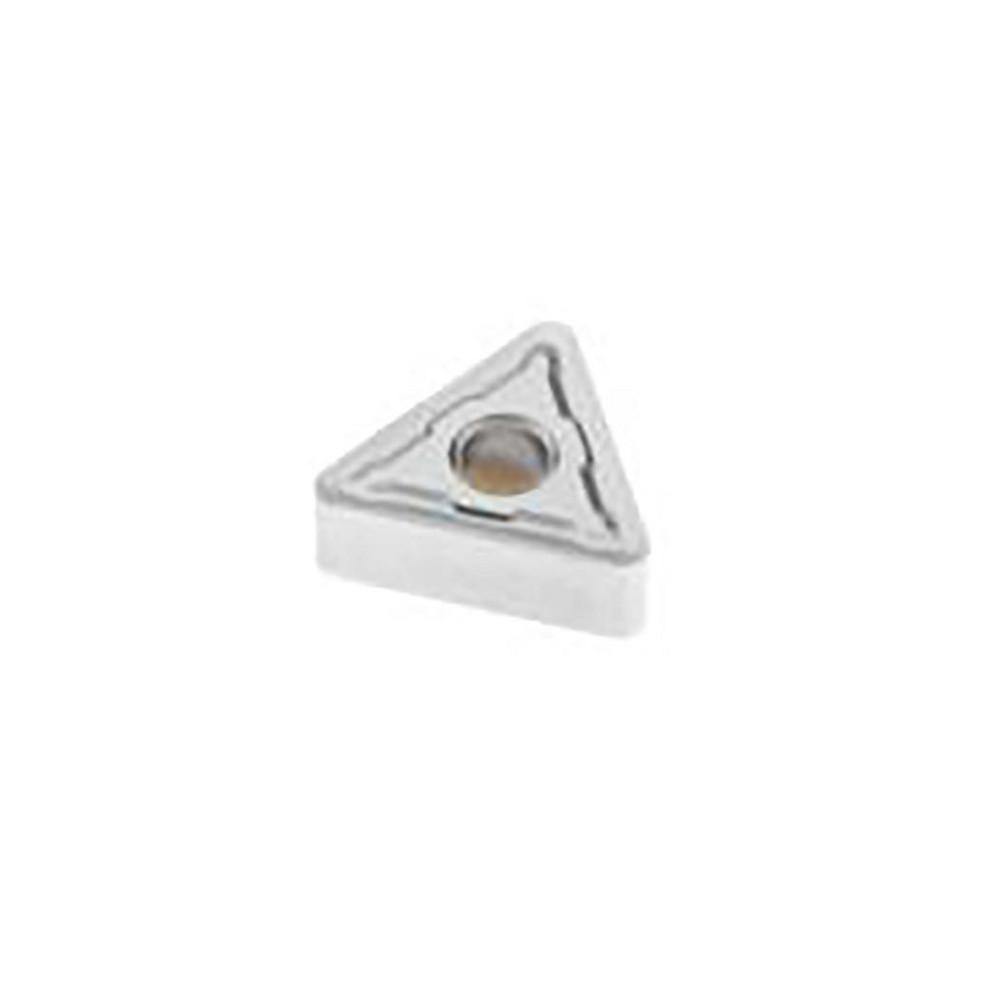

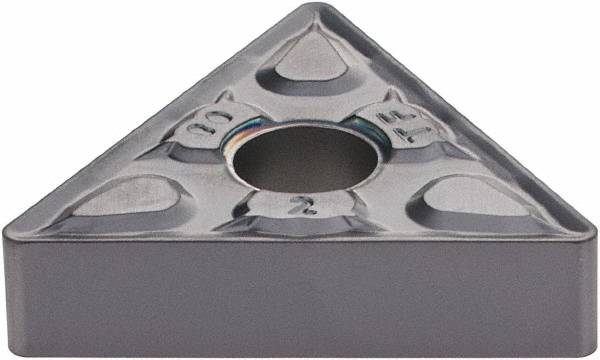

TiAlN Finish, Neutral, 0.8660" Long, 0.5000" Inscribed Circle, 0.0315" Corner Radius, 60 deg T - Triangle, Series TNMG-28
| Insert Style | TNMG |
|---|---|
| ISO Size Code | 220408 |
| ANSI Size Code | 432 |
| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |

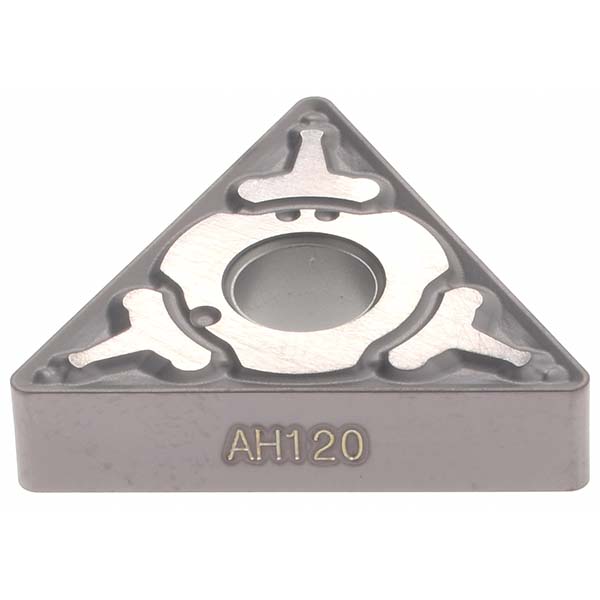

| Manufacturer Grade | AH120 |
| Coating/Finish | TiAlN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | TNMG-28 |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |

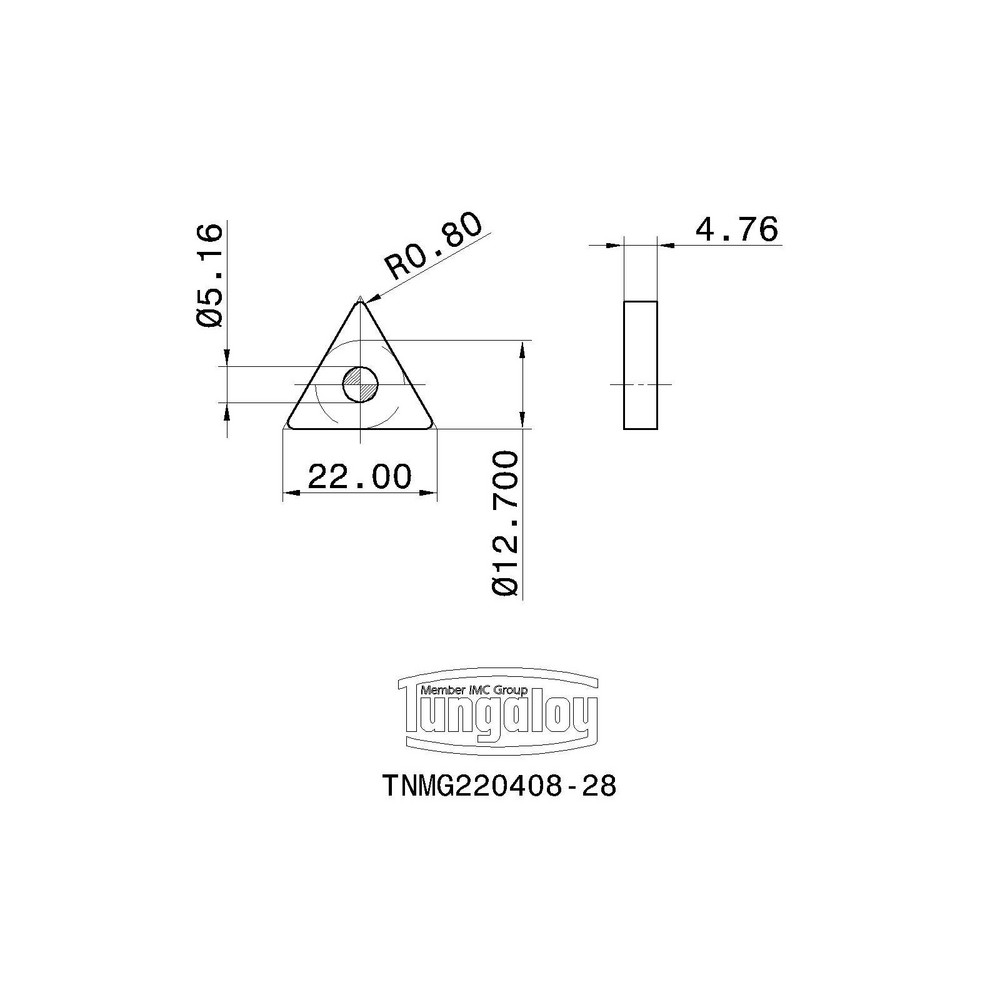

| ISO Insert Code | TNMG220408 |
| ANSI Insert Code | TNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | TNMG432-28 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6812074 |
| Material Grade | M15; M25; P25; S10; P15; S25; K30; K15 |
| Coating Classification | PVD |
| Chip Breaker | 28 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TNMG 432-28 |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 01683705 |
