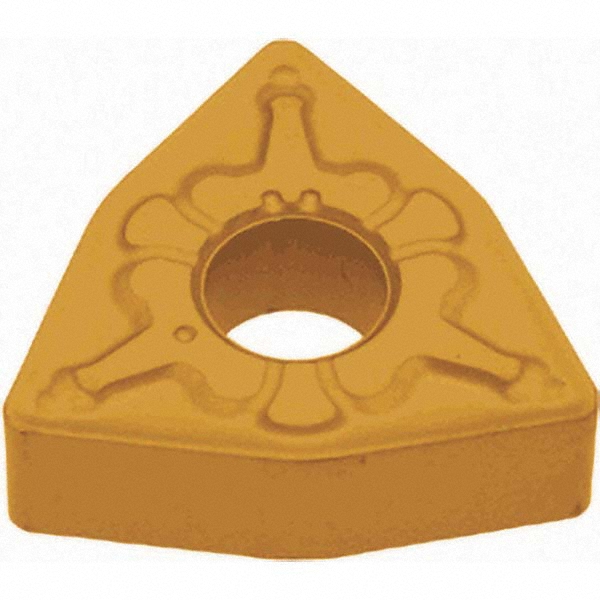

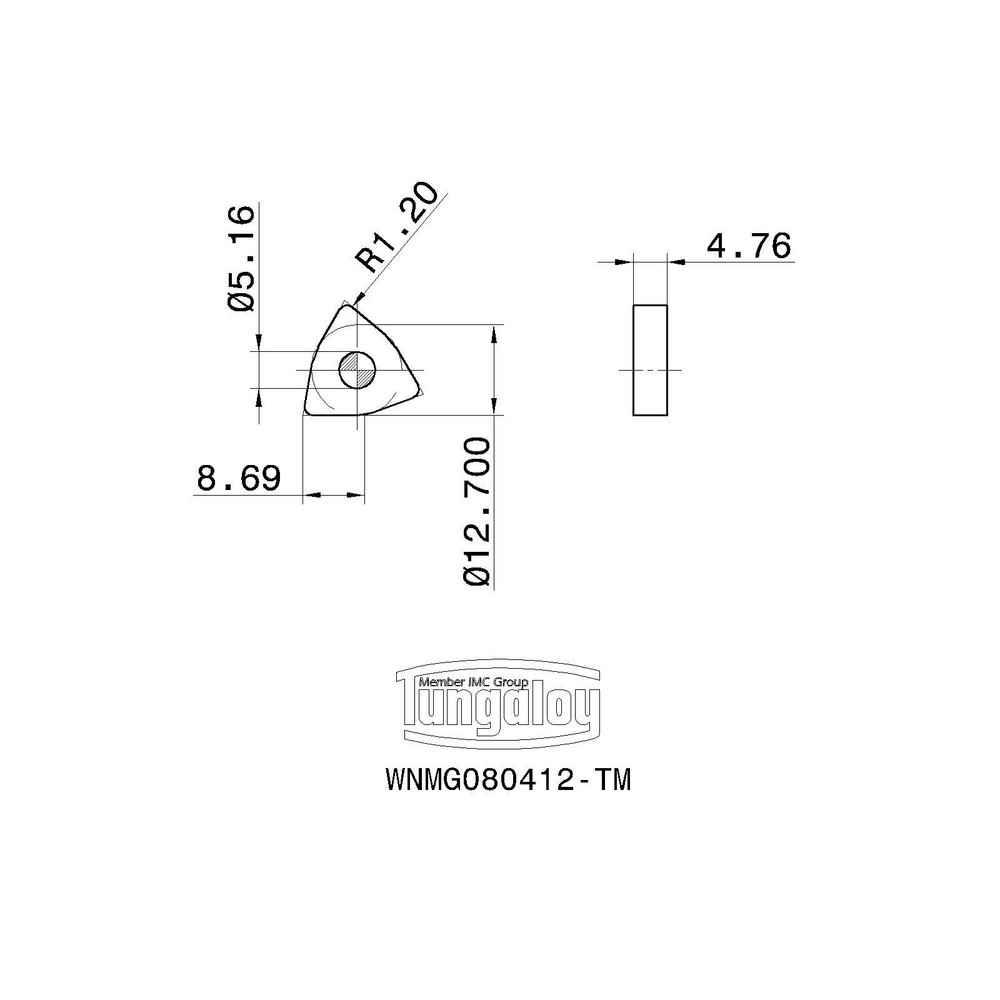

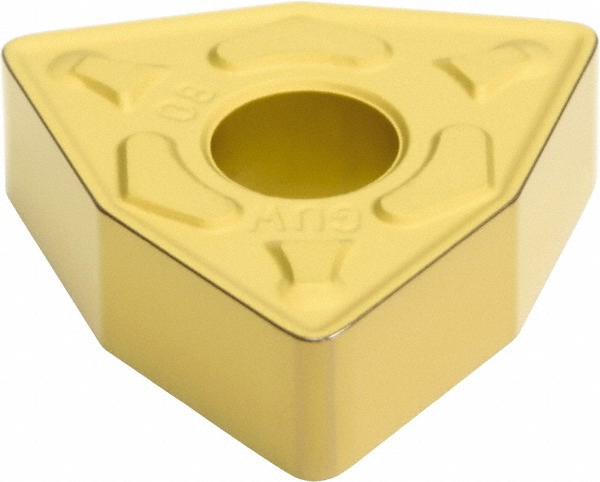

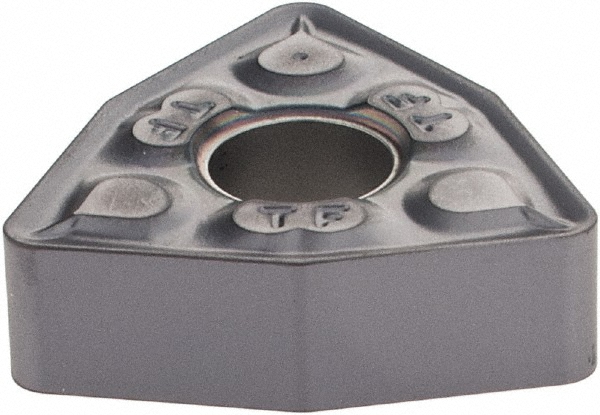

Titanium, Al2O3 & Titanium Finish, Neutral, 0.6860" Long, 0.5000" Inscribed Circle, 0.0472" Corner Radius, 80 deg W - Trigon 80-Deg, Series WNMG-TM
| Insert Style | WNMG |
|---|---|
| ISO Size Code | 080412 |
| ANSI Size Code | 433 |
| Insert Shape | W - Trigon 80-Deg |
| Included Angle | 80 |

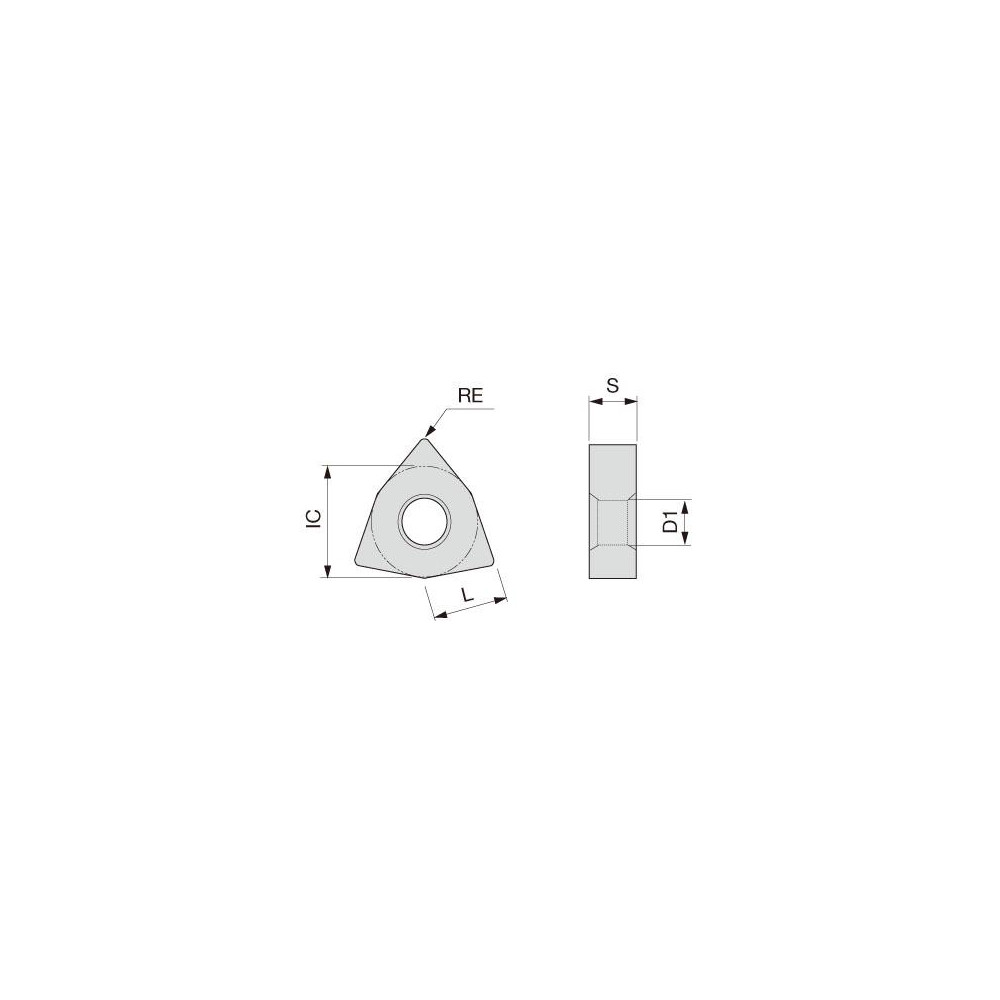

| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Manufacturer Grade | T9225 |
| Coating/Finish | Titanium; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | WNMG-TM |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| ISO Insert Code | WNMG080412 |
| ANSI Insert Code | WNMG433 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6860 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | WNMG 433 TM |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6780855 |
| Material Grade | P25; P15 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | TM |
| Rake Angle | -6 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | WNMG 433 TM |
| Width (Decimal Inch - 4 Decimals) | 0.6860 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 12175998 |
