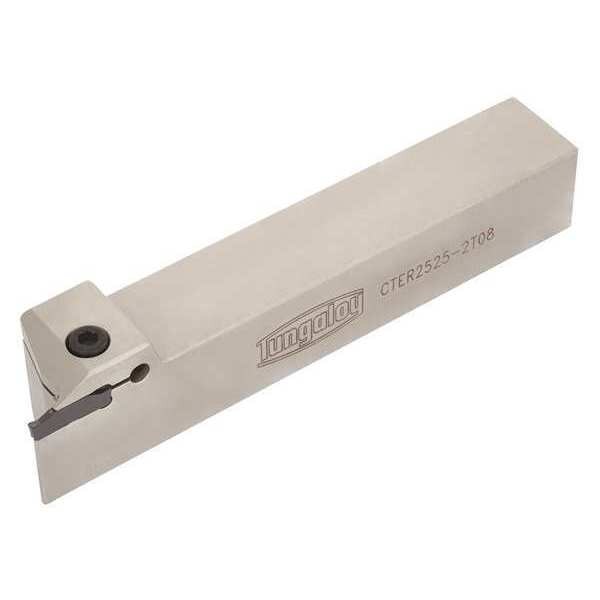

Turning Tool Holder, 0.216 Thick, Steel
| Torx Wrench | P-6 |
|---|---|
| Insert Shape | Dog Bone |
| Lock | Screw Clamp |
| Insert Seat Size | 6 |
| Type | Indexable |
| Shank | Inch |
| Left/Right Hand | Right Hand |
| Nose Radius (In.) | 0.01 |
| Item | Indexable Grooving and Parting Toolholder |
| Shank Width (In.) | 1 |
| Inscribed Circle (In.) | 0.236 |
| Material | Steel |
| Overall Length (In.) | 6 |
| Number of Inserts Required | 1 |
| Tmax (In.) | 1.26 |
| Clamp Screw | CM8X1.25X20-A |
| Shank Height (In.) | 1 |
| Insert Thickness (In.) | 0.216 |
| Style | Grooving |
| Cutting Direction | Right Hand |
| Overall Length | 6 in |
| ISO Number | CTER16-6T32 |
| Shank Width | 1 in |
| Head Length | 2.205 in |
| Shank Material | High Speed Steel |
| Side-to-Cutting Tip | 1.02 in |
| Cutting Application | Turning, Cut-Off, Grooving |
| Shank Height | 1 in |
| ANSI Code | CTER16-6T32 |
| Compatible Hardware | Hex Wrench P-6;Screw CM8X1.25X25-A |
| Toolholder Style | CTER |
| Shank Shape | Square |
| Depth of Cut | 1.26 in |
| Package Quantity | 1 |
