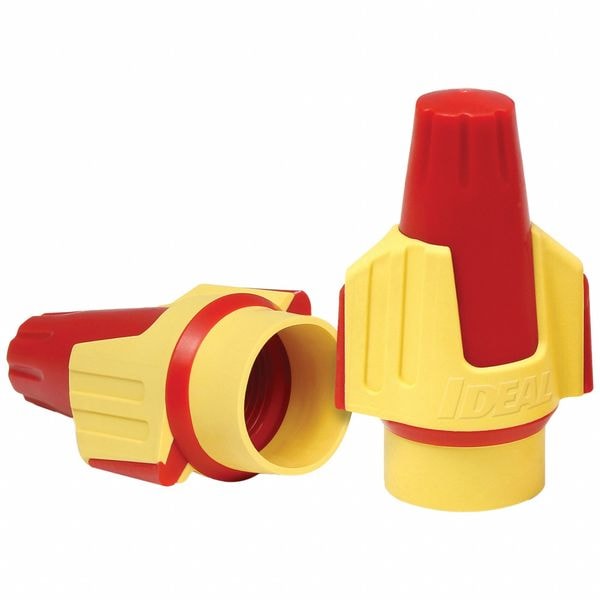

Twist On Wire Connector, Red/Yellow, PK400
| Color | Red/Yellow |
|---|---|
| Wire Connector Style | Wing |
| Maximum Single Wire Size | 8 AWG |
| Maximum Voltage | 1,000 V |
| Minimum Single Wire Size | 22 AWG |
| UL 94 Flammability Rating | V-2 |
| Fill Material | Polypropylene |
| Standards | CSA Certified, UL Listed |
| Special Features | Expanding Square-Wire Spring and Polypropylene Shell Deliver a Secure Connection Every Time, Widest Wire Range of any Multi-Colored Wire Connectors in the Industry |
| Item | Twist On Wire Connector |
| Contact Finish | Zinc |
| Minimum Wire Combination | (2) 18 AWG |
| Maximum Wire Combination | (4) 10 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Steel |
| For Conductor Material | Copper |
| Maximum Conductors | 4 |
| Package Quantity | 400 |
