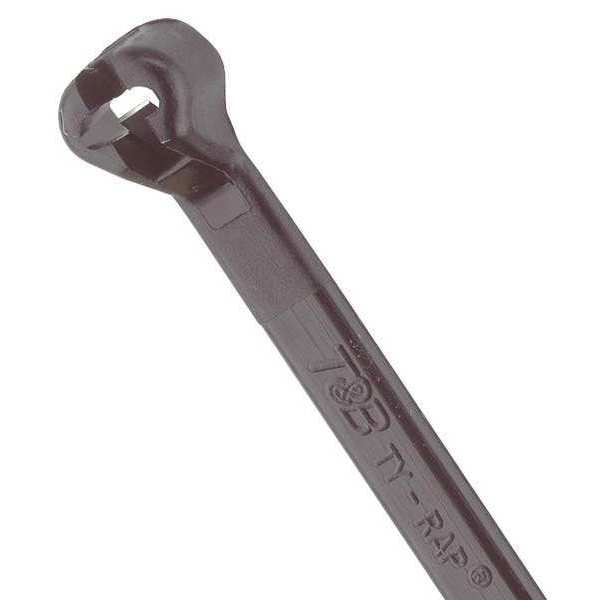

Cable Tie, 14-1/2 in L, 4 in Max Bundle Dia., Black, Nylon 6/6, 30 lb Strength, 100 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Plenum Rated, UV Resistant |
| Nominal Length | 14-1/2 in |
| Width | 0.14 in |
| Nominal Max. Bundle Dia. | 4 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 30 lb |
| Outdoor Use | Yes |
| Standards | 1565, OPC 23190 |
| Locking Style | Stainless Steel Barb |
| Tool Code | A |
| Metal Detectable | No |
| UL Type | 21 |
| Thickness | 0.04 in |
| Features | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.; Application Tools: ERG50, WT1-TB |
| Operating Temp. Range | -76 to 220 deg F |
| Number of Straps | 1 |
| Min. Temp. Rating | -76 deg F |
| Cable Tie Properties | Halogen-Free, Plenum Rated, UV Light Resistant, Weather Resistant |
| Max. Temp. Rating | 220 deg F |
| Plenum Rated | Yes |
| Actual Length | 14-1/2 in |
| Surface protection | Untreated |
| Band closure | Steel nose |
| Min. holding force | 180 N |
| Model | Internal toothing |
| Text strip | None |
| Temp. Range | -40 to 185 deg F |
| Max. Bundle Dia. | 4.09 in |
| Basic Material - Cable Tie | Nylon |
| Flame Retardant | No |
| Cable Tie Duty | Miniature |
| Package Quantity | 100 |
