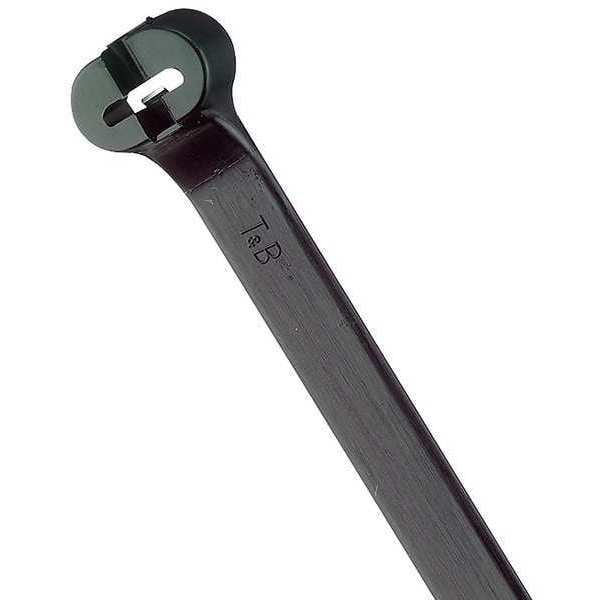

Cable Tie, 30-1/2 in L, 9 in Max Bundle Dia., Black, Nylon 6/6, 120 lb Strength, 50 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Plenum Rated, UV Resistant |
| Nominal Length | 30-1/2 in |
| Width | 0.3 in |
| Nominal Max. Bundle Dia. | 9 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 120 lb |
| Outdoor Use | Yes |
| UL Type | 21 |
| Thickness | 0.07 in |
| Tool Code | B |
| Metal Detectable | No |
| Locking Style | Stainless Steel Barb |
| Standards | 1565, OPC 23190 |
| Features | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.; Application Tools: ERG120, WT197 |
| Operating Temp. Range | -76 to 220 deg F |
| Max. Temp. Rating | 220 deg F |
| Cable Tie Properties | Halogen-Free, Plenum Rated, UV Light Resistant, Weather Resistant |
| Min. Temp. Rating | -76 deg F |
| Plenum Rated | Yes |
| Actual Length | 30.4 in |
| Number of Straps | 1 |
| Cable Tie Duty | Heavy Duty |
| Flame Retardant | No |
| Basic Material - Cable Tie | Nylon |
| Temp. Range | -40 to 185 deg F |
| Max. Bundle Dia. | 9.01 in |
| Package Quantity | 50 |
