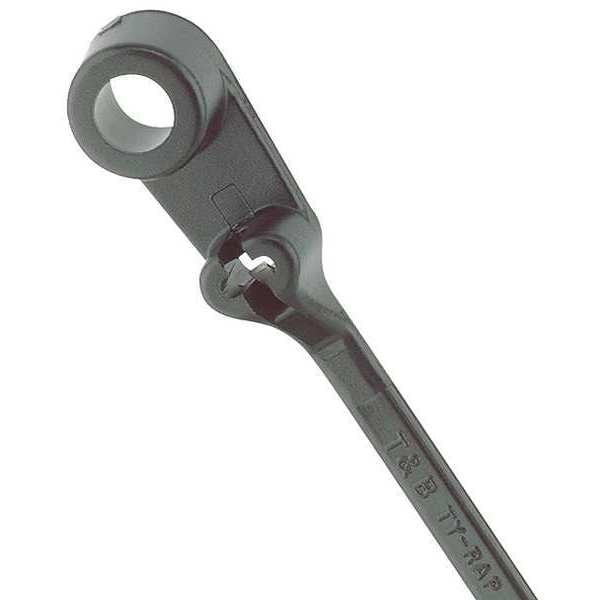

Cable Tie, 4 in L, 5/8 in Max Bundle Dia., Black, Nylon 6/6, 18 lb Strength, 1000 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Mountable, Plenum Rated, UV Resistant |
| Nominal Length | 4 in |
| Width | 3/32 in |
| Nominal Max. Bundle Dia. | 5/8 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 18 lb |
| Outdoor Use | Yes |
| Metal Detectable | No |
| Tool Code | A |
| Mounting Hole Size - Cable Tie | #4 |
| UL Type | 21 |
| Locking Style | Stainless Steel Barb |
| Thickness | 0.03 in |
| Mounting Style | Mounting Head |
| Mounting Hole Size | #4 |
| Standards | UL Listed |
| Features | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables. |
| Operating Temp. Range | -40 to 221 deg F |
| Mounting Method | Screw Mount |
| Min. Temp. Rating | -40 deg F |
| Max. Temp. Rating | 221 deg F |
| Number of Straps | 1 |
| Screw Mount Hole Size | #4 |
| Plenum Rated | Yes |
| Cable Tie Properties | Halogen-Free, UV Light Resistant, Weather Resistant |
| Actual Length | 4 in |
| Surface protection | Untreated |
| Text strip | None |
| Type of fastening | Screw hole |
| Model | Internal toothing |
| Min. holding force | 80 N |
| Band closure | Steel nose |
| Basic Material - Cable Tie | Nylon |
| Flame Retardant | No |
| Cable Tie Duty | Miniature |
| Max. Bundle Dia. | 0.63 in |
| Temp. Range | -40 to 185 deg F |
| Package Quantity | 1000 |
