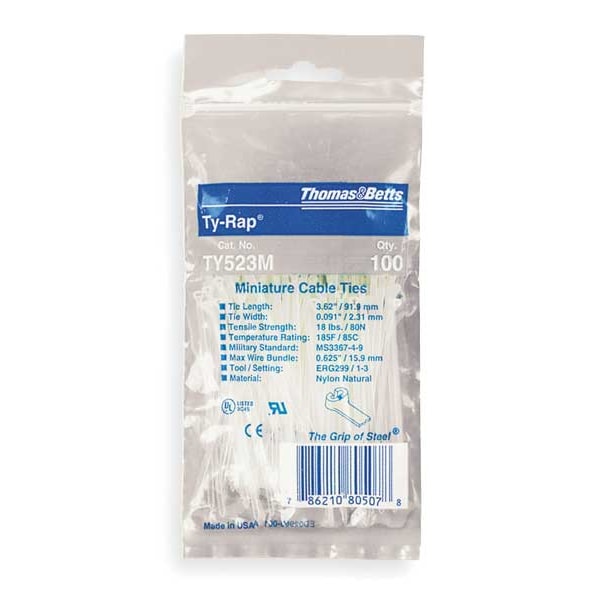

Cable Tie, 4 in L, 5/8 in Max Bundle Dia., Natural, Nylon 6/6, 18 lb Strength, 100 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Flame Retardant, Halogen-Free, Plenum Rated |
| Nominal Length | 4 in |
| Width | 3/32 in |
| Nominal Max. Bundle Dia. | 5/8 in |
| Color | Natural |
| Material | Nylon 6/6 |
| Tensile Strength | 18 lb |
| Outdoor Use | No |
| Standards | 1565, OPC 23190 |
| Tool Code | A |
| Locking Style | Stainless Steel Barb |
| Metal Detectable | No |
| UL Type | 21 |
| Thickness | 0.03 in |
| Features | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.; Application Tools: ERG50, WT1-TB |
| Operating Temp. Range | -76 to 185 deg F |
| Number of Straps | 1 |
| Min. Temp. Rating | -76 deg F |
| Max. Temp. Rating | 185 deg F |
| Plenum Rated | Yes |
| Cable Tie Properties | Halogen-Free, Plenum Rated, Weather Resistant |
| Actual Length | 3.62 in |
| Max. Bundle Dia. | 0.63 in |
| Temp. Range | -40 to 185 deg F |
| Cable Tie Duty | Miniature |
| Flame Retardant | No |
| Basic Material - Cable Tie | Nylon |
| Package Quantity | 100 |
