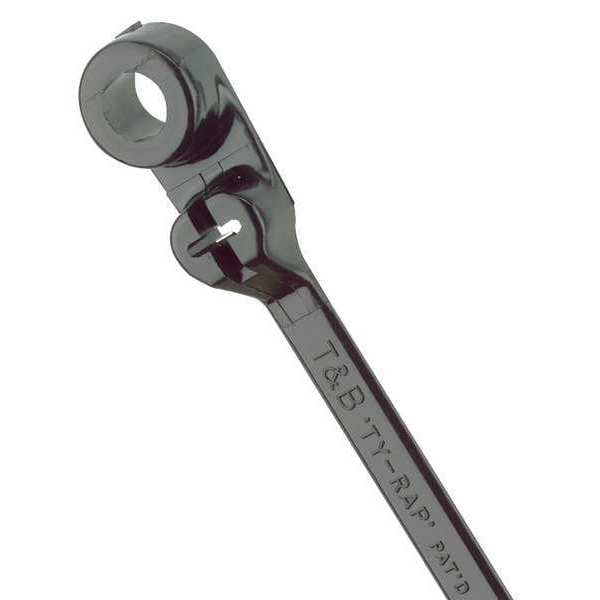

Cable Tie, 8 in L, 1-3/4 in Max Bundle Dia., Black, Nylon 6/6, 50 lb Strength, 100 PK
| Item | Cable Tie |
|---|---|
| Cable Tie Style | Halogen-Free, Mountable, UV Resistant |
| Nominal Length | 8 in |
| Width | 3/16 in |
| Nominal Max. Bundle Dia. | 1-3/4 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 50 lb |
| Outdoor Use | Yes |
| Mounting Hole Size - Cable Tie | #10 |
| Thickness | 0.04 in |
| UL Type | 21 |
| Metal Detectable | No |
| Locking Style | Stainless Steel Barb |
| Mounting Hole Size | #10 |
| Mounting Style | Mounting Head |
| Tool Code | A, B |
| Standards | UL Listed |
| Features | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables. |
| Mounting Method | Screw Mount |
| Operating Temp. Range | -40 to 221 deg F |
| Cable Tie Properties | Halogen-Free, UV Light Resistant, Weather Resistant |
| Screw Mount Hole Size | #10 |
| Min. Temp. Rating | -76 deg F |
| Actual Length | 7.83 in |
| Max. Temp. Rating | 220 deg F |
| Number of Straps | 1 |
| Min. holding force | 222 N |
| Text strip | None |
| Model | Internal toothing |
| Type of fastening | Screw hole |
| Surface protection | Untreated |
| Band closure | Steel nose |
| Cable Tie Duty | Standard |
| Temp. Range | -40 to 185 deg F |
| Basic Material - Cable Tie | Nylon |
| Max. Bundle Dia. | 1.77 in |
| Flame Retardant | No |
| Package Quantity | 100 |
