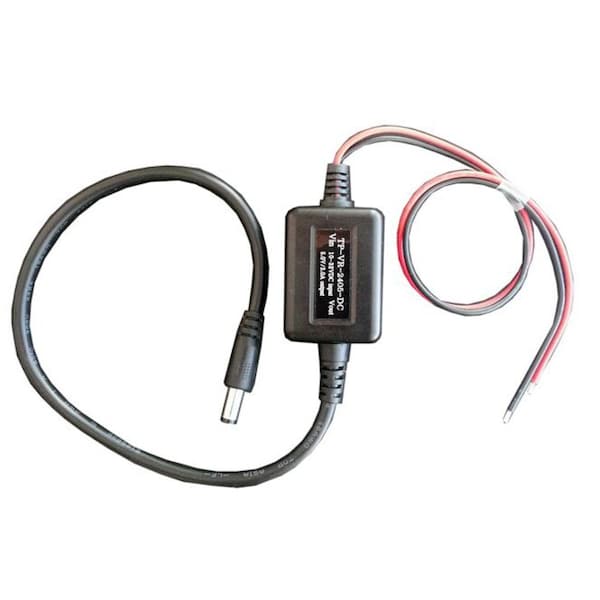

DC to DC Converter, 12/24V DC to 5V DC, 15VA, 0 Hz
| Item | DC to DC Converter |
|---|---|
| Converts | 12/24V DC to 5V DC |
| VA Rating | 15 VA |
| Frequency | 0 Hz |
| Phase | Not Applicable |
| Height | 2-3/4 in |
| Width | 1-1/4 in |
| Depth | 1 in |
| Maximum Output Current | 3 A |
| Output voltage | 5 V DC |
| Device Supported | Remote Power System, Wireless Base Station, Security Device |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 1.92 oz |
| Product Series | TP-VR |
| Maximum Output Power | 15 W |
| Efficiency | 0.8 |
| DC Voltage Output | 5 VDC @ 3 A |
| Lead Wire Length | 12 in |
| Wire Gauge | 18AWG |
| Operating temperature | - 40°F to 149°F |
| Load / Line Regulation | 5% / 1% |
| DC Input Voltage Range | 10V to 32VDC |
| Operating Humidity | 0 to 99% RH |
| Ripple / Noise | 2% / 5% |
| Maximum Power Dissipation | 15 W |
| Package Quantity | 1 |
