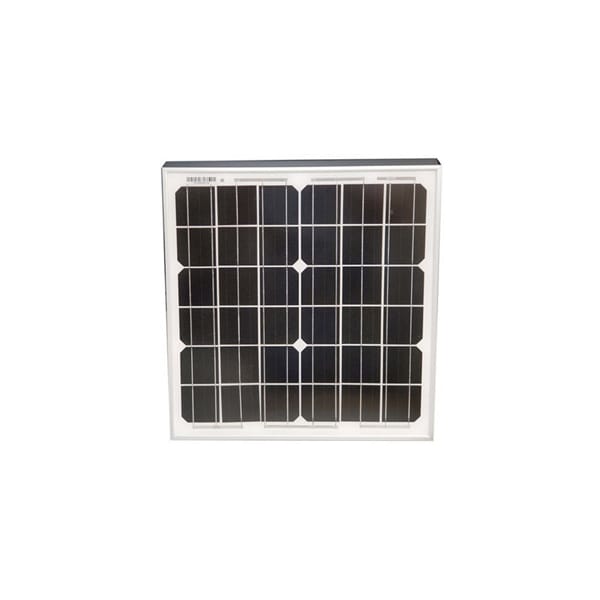

Monocrystalline Solar Panel, 15 W, 17.6V DC, 0.85 A, 36 Cells, MC4
| Item | Solar Panel |
|---|---|
| Maximum Power Point | 15 W |
| Cell Type | Monocrystalline |
| Voltage @ Maximum Power Point | 17.6 V DC |
| Current @ Maximum Power Point | 0.85 A |
| Overall Width | 14.6 in |
| Overall Height | 14 in |
| Overall Depth | 0.7 in |
| Number of Cells | 36 |
| Connector | MC4 |
| Hailstone Survivability | 1" @ 50mph |
| Short Circuit I Temp Coeff | + .06% / °C |
| Current at Pmax (Imp) | 0.85 A |
| Wind Survivability | 201kph (125mph) |
| Open Circuit V Temp Coeff | -0.35% / °C |
| Operating temperature | -40 to +85°C |
| Short Circuit Current (Isc) | 0.9 A |
| Continuous Power Capability (6hrs average sunlight per day) | 3.75W |
| Open Circuit Voltage (Voc) | 21.6 V |
| Maximum Power (+/-5%) | 15W |
| Output Power Temp Coeff | -0.4%/°C |
| Package Quantity | 1 |
