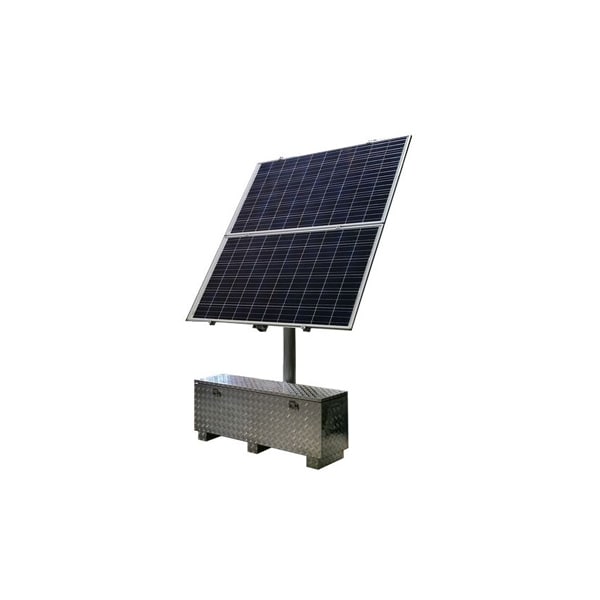

Remotepro 100W, 720W Solar, 720Ah Batt, Mppt, RPAL48-720-720
| Item | Solar Charge Controller |
|---|---|
| Enclosure Type | Diamond Plate Aluminum, ENC-AL-65x18x20 Ground Mount |
| Battery Type | Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM |
| Wind Speed Rating | 90MPH |
| Operating temperature | -30°C to +60°C (-22°F to 140°F) |
| Bulk Charge | 57.6V @ 48V Battery |
| Over-discharge recovery volts | 50.4V @ 48V Battery |
| Enclosure Size | 65 x 18 x 20" (1651 x 457 x 508mm) |
| Controller Type | Manageable MPPT with 7 port GigE PoE Switch. Remote Monitoring. |
| Controller Self Consumption | <3.5W |
| Float Charge | 55.2V @ 48V Battery |
| Solar Panel Dims (L x W x T) | 720W Solar Array 78 x 77 x 1.6" (1980 x 1956 x 40mm) |
| Over-discharge protection | 44.4V @ 48V Battery |
| Controller Outputs | 4 Port 802.3at or 24V Passive, 3 Port 24/48V 30W Passive PoE. Aux Port 24/48V 2.5A |
| Internal Mount Features | DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back |
| Package Quantity | 1 |
