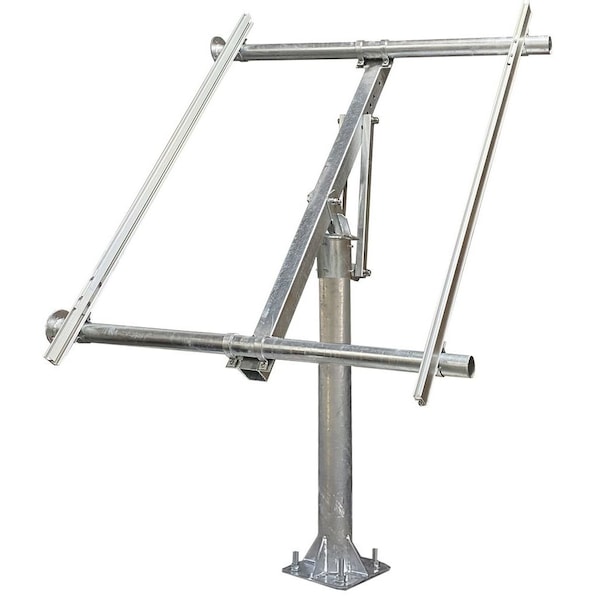

Solar Mt, 2X 350W Panels, Top Of Pole, TPSM-350x2-TP
| Item | Solar Panel Pole |
|---|---|
| Min array height (front of array at 65deg) | 1143mm (45") |
| Tilt | 10 - 65 degrees |
| Array Dimensions | Width: 3367mm (132.5") Height: 2017mm (79.4") |
| Structural cross tube total length | 2 module: 1499mm (59") |
| Mounting method | anchor bolts in concrete footing (Anchors included, concrete provided by installer) |
| Total module rail length | 2083mm (82") |
| Crate Outside Dimensions | 2007 x 540 x 483mm (79 x 21.25 x 19") |
| International Compliant Standards | GB50009-2001; GB50011-2001; GB/T 13912-92; GBT 14846-2008; GB-T 6892-2006; GB50429-2007; GB50017-2003; AS NZS 1170; ASCE/SEI 7-05; ASCE/SEI 7-010; 2007 California Administrative Code; IBC 2006; Euro Code 8; DIN1055; EN 1991-1-3 - Snow Load; EN 1991-1-4 - Wind Actions |
| Pole Diameter | 140mm (6") |
| Max wind speed | 100mph |
| Max array height (back of array at 65deg) | 3048mm (120") |
| Pole height | 1829mm (72") |
| Panel Thickness | 30-50MM |
| Package Quantity | 1 |
