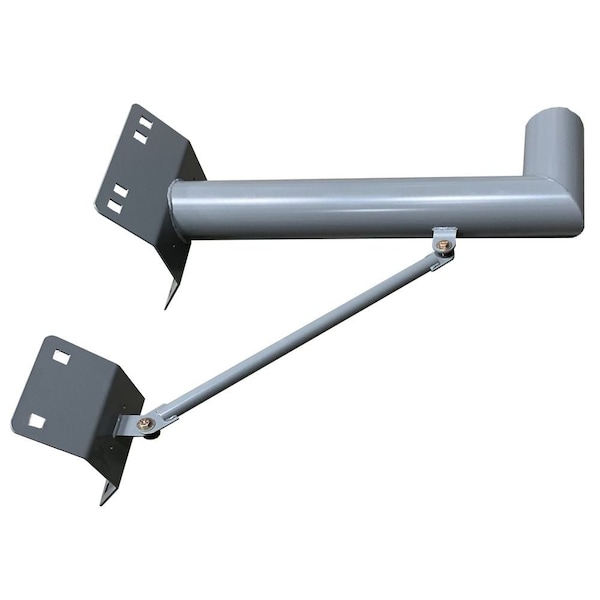

Solar Mt, 2X 350W Panels, Top Of Pole, TPSM-650-SPM
| Item | Solar Panel Pole |
|---|---|
| Tycon Solar Mount Compatibility | TPSM-250X4-TP, TPSM-350X2-TP |
| Standoff from Pole | 914mm (36") |
| Achievable Tilt | 35 - 65 degrees |
| Vertical Offset | 190.5mm (7.5") |
| Pole Size Supported | 203-356mm (8-14") |
| Mounting method | Commercially Available Pole Straps (Not Included) |
| Adapter Outside Diameter | 141mm (5.563") |
| Number of 72cell Panels Supported | 2 Max (~720W Total) |
| Pole Strap Slots (Qty 12) | 25.4 x 25.4mm (1 x 1") |
| Adapter Inside Diameter | 128mm (5.047") (5" Sched 40) |
| Max wind speed | 100mph |
| Package Quantity | 1 |
