UPS System, Out: 24/48V DC In: 120/240V AC
| Item | UPS System |
|---|---|
| Mounting | Wall |
| Wattage | 900 W |
| Input Voltage | 120/240V AC |
| Output Voltage | 24/48V DC |
| Standards | Individual components used have CE Certifications. |
| Battery Type | Lead Acid, AGM, Pure Lead Carbon, Sealed, Valve Regulated |
| Over-discharge protection | 44V |
| Over-discharge recovery voltage | 50.4V |
| Max Output Power | 900 W |
| Controller Type | 20A MPPT Solar Controller with 7 port GigE PoE Switch, 4 ports configurable as 802.3at or 24V Passive, 3 ports configurable as 24/48V Passive PoE, Aux port configurable as 24/48V 2.25A, Managed, Email Alerts, Data Logging, Remote Management |
| Operating temperature | -40°C to +65°C |
| Maximum Solar Panel Size | 960W |
| Float Charge | 55.2V |

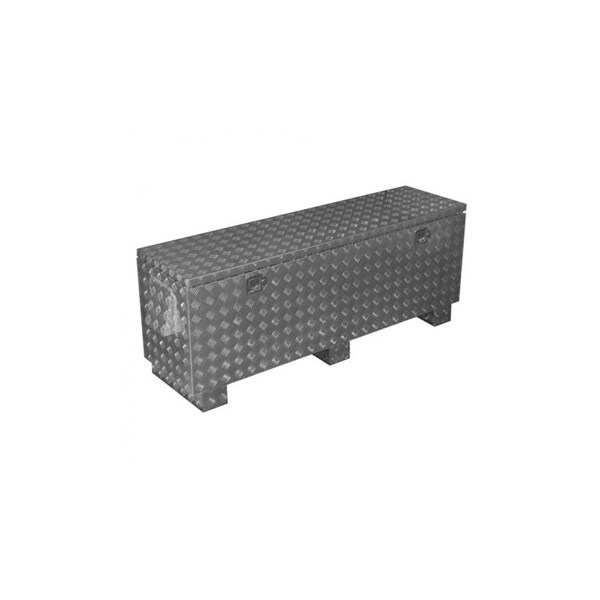

| Enclosure Type | Ground Mount, Key Lock, Aluminum Diamond Plate |
| Battery Voltage (DC) | 48VDC |
| Maximum Charge Controller Load | 150W 48V outputs, 72W 24V outputs (overall total 222W) |
| Suggested Maximum Load | 750 W |
| Controller Self Consumption | <1W |
| Battery Cable Fuse | 40A 250V Blade Fuse |
| Bulk Charge | 57.6V |
| Package Quantity | 1 |
