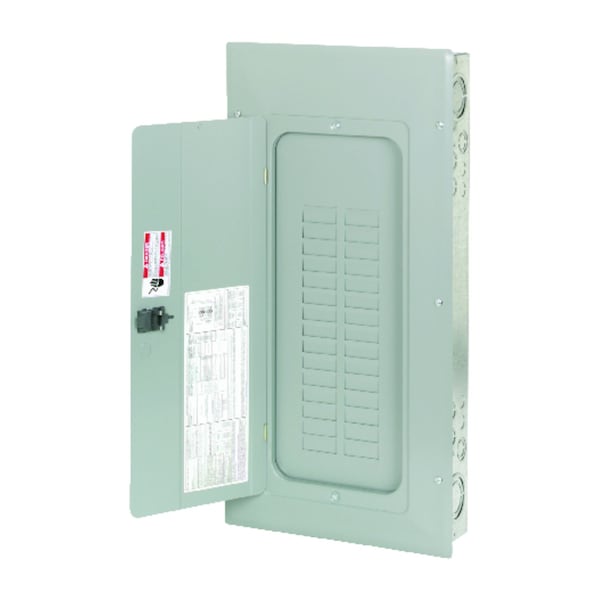

Load Center, BRP, 30 Spaces, 200A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 30 |
| Amps | 200A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 3.88 in |
| Width | 14.31 in |
| Depth | 29.12 in |
| Series | BRP |
| Included Enclosure Cover | Cover Included |
| Enclosure Material | Metallic |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Mounting Style | Surface, Flush |
| Color | Gray |
| Weight | 26.2 lb |
| Standards | UL 50 |
| Number Of Circuits | 60 |
| Number of wires | Two hots, neutral and ground |
| Number Of Poles | Single-pole |
| Used with | Type BR 1-inch breakers |
| Package Quantity | 1 |
