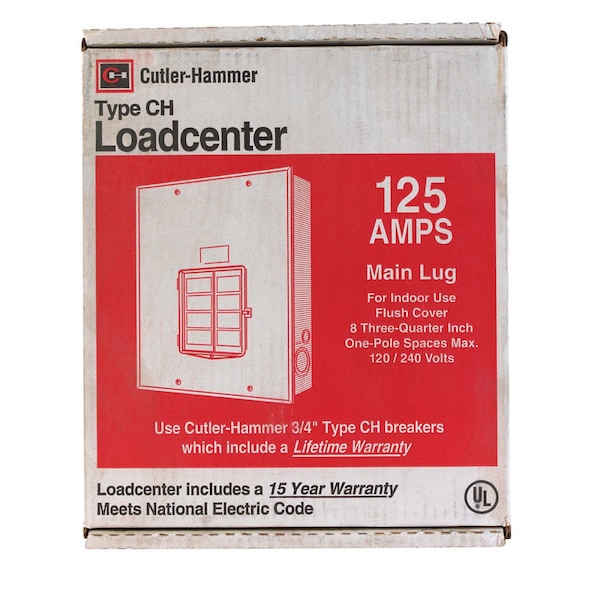

Load Center, CH, 8 Spaces, 125A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 8 |
| Amps | 125A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 25kA |
| Height | 3.69 in |
| Width | 11 in |
| Depth | 13 in |
| Series | CH |
| Enclosure Material | Metallic |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Mounting Style | Flush |
| Standards | UL 67 |
| Weight | 12.75 lb |
| Number of wires | 3 |
| Number Of Circuits | 8 |
| Feed type | Top, bottom |
| Wire size | #6-1/0 AWG |
| Package Quantity | 1 |
