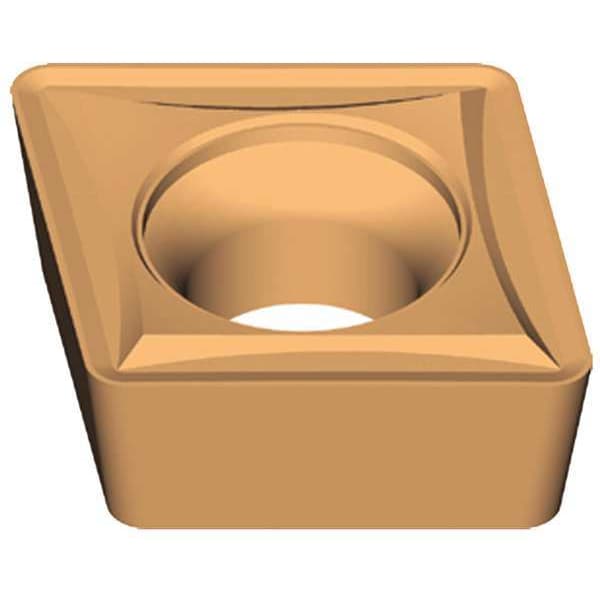

Carbide Insert, CCMT 32.51 UD52
| Item | Diamond Turning Insert |
|---|---|
| Coating | TiAlN |
| Insert Shape | Diamond |
| Mounting Style | Screw Lock |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Insert Application | Finishing |
| Rake | Positive |
| Relief Angle | 7 deg |
| Insert Material | Carbide |
| Application | Finishing |
| Cast Iron (K) Compatibility | No |
| For Use With | SCLCR/L3 |
| Insert Size | 32.51 |
| Insert Style | CCMT |
| Grade | UD52 |
| Mounting Hole Dia. | 0.173 in |
| Inscribed Circle | 3 |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Style | CCMT |
| Nose Radius | 0.015 in |
| Insert Thickness | 0.156 in |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | Yes |
| No. of Edges | 2 |
| ANSI Number | CCMT 32.51 UD52 |
| ISO Number | 09T304 |
| Chip-Breaker | Yes |
| Chip-Breaker Code | ZX3 |
| ANSI Code | CCMT 32.51 UD52 |
| Primary Material Application | Nickel, Steel, Titanium |
| Secondary Material Application | Stainless Steel |
| Cutting Application | Boring, Turning |
| Shape | Rhombic |
| Material - Machining | Carbide |
| Finish - Machining | TiAlN |
| Number of Cutting Edges | 2 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Measurement System | Fractional Inch |
| Corner Radius | 1 |
| Thickness | 2.5 |
| Primary Material Application ISO Code | P, S |
| Included Angle | 80 deg |
| Manufacturer Grade | UD52 |
| Clearance Angle | 7 deg |
| Secondary Material Application ISO Code | M |
| Package Quantity | 1 |
